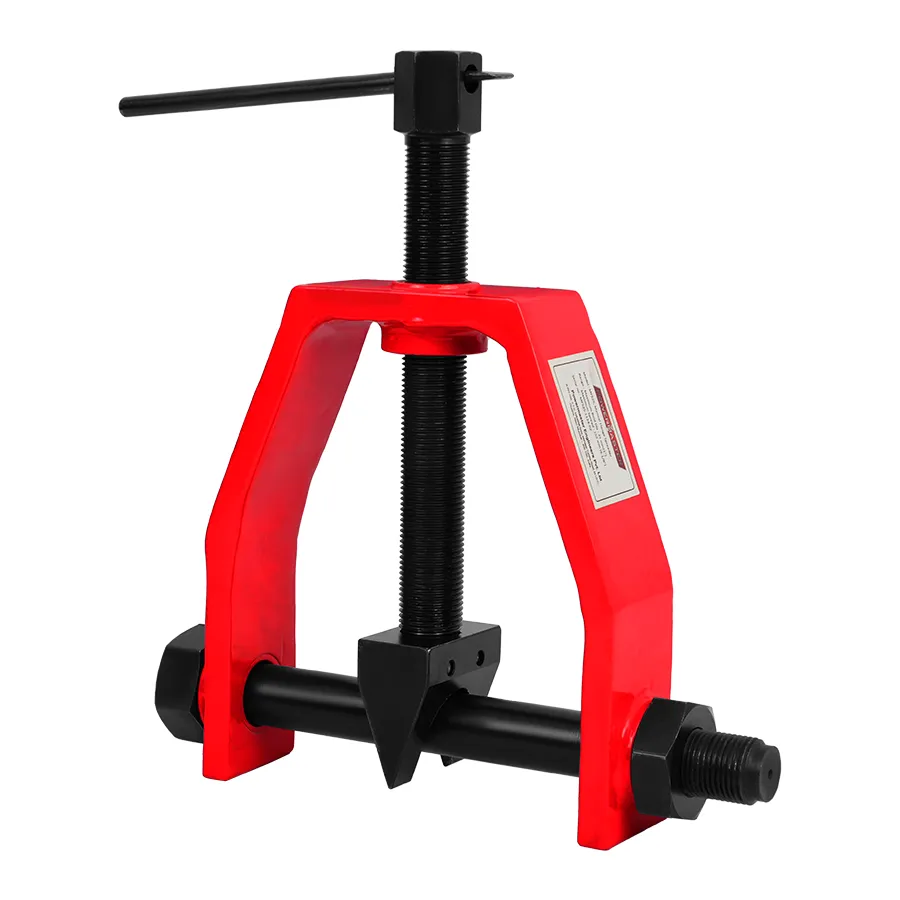

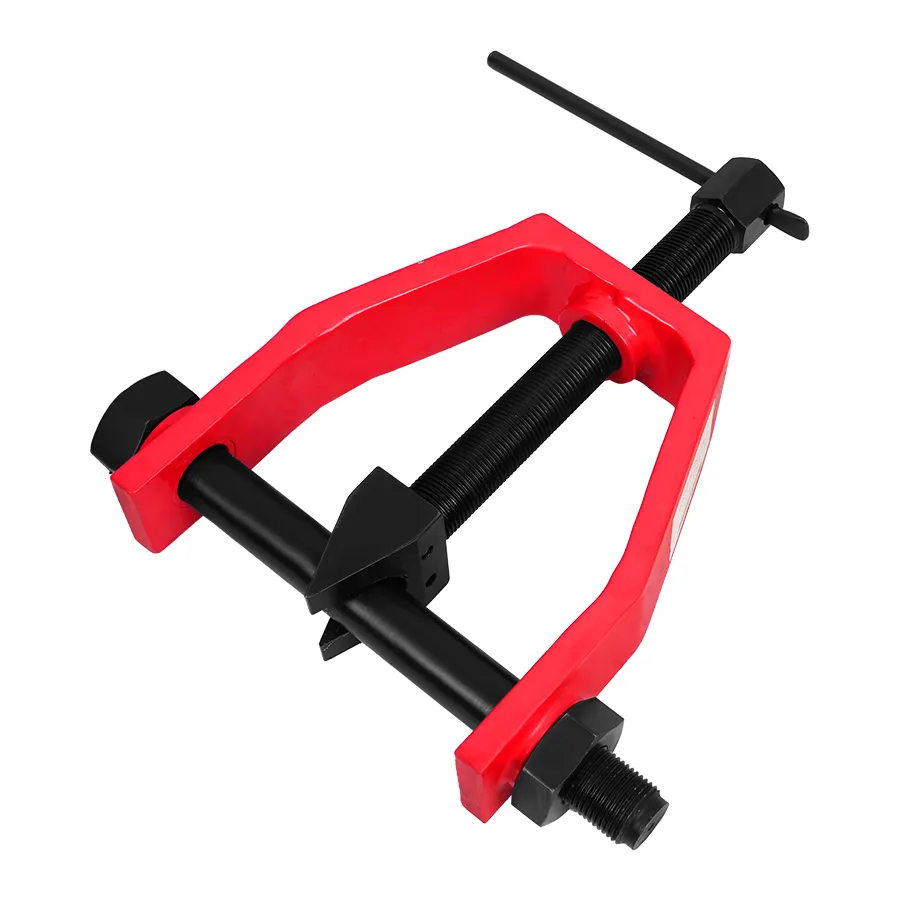

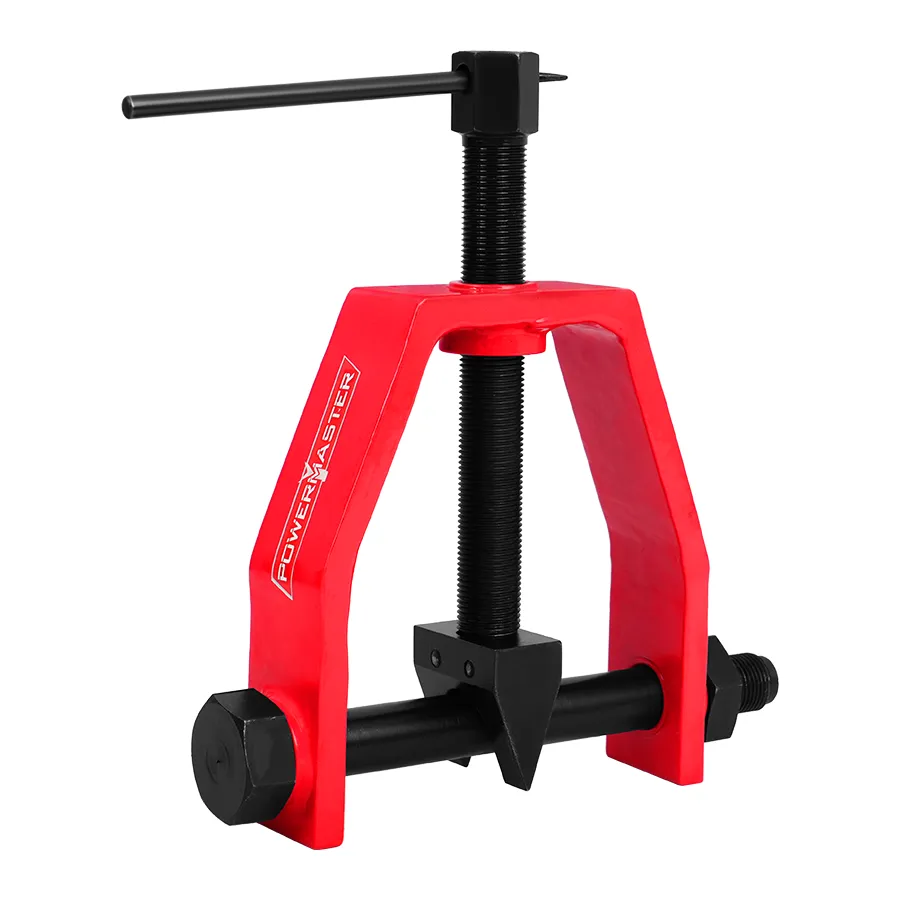

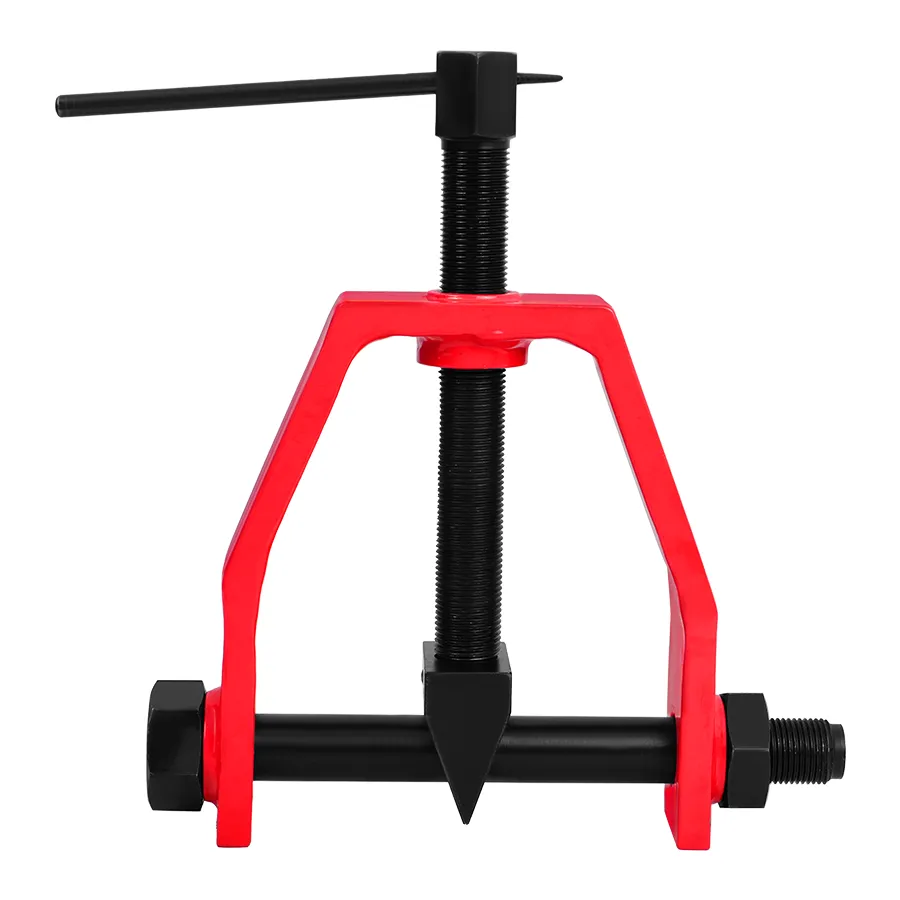

PMF Series
Flange Spreaders
Flange Tools

Safe And Cost-Effective Operation: Each Model Is Designed To Ensure Safe Flange Separation, Reducing Operational Costs While Eliminating The Risk Of Sparks During Use.
Threaded Spindle For Precise Control: The Spindle Can Be Easily Operated With A Standard Spanner, Allowing Users To Apply Controlled And Consistent Force Without Risking Damage To The Flange.
Supports Flanges Up To 2 X 95 Mm Thickness: Designed To Handle Heavy-Duty Applications With Flanges Of Significant Thickness For Versatile Usage.
No External Power Required: These Mechanical Flange Spreaders Operate Without The Need For External Power Sources, Making Them Highly Versatile And Suitable For Use In Any On-Site Environment.
Portable And Ergonomic Design: These Flange Spreaders Are Easy To Transport And Can Be Used In A Wide Range Of Industrial Settings.
Tool Is Compatible With Bolt Diameter Upto 31 mm.
Offers A Maximum Spread Of 231 mm.
No External Power Source Needed For Operation.

Powermaster
Delivery

High Quality
Material

ISO
Standards

Secure
Transaction

Select & Add to Cart

Unit

mm inch

Item Code	Pin Diameter (mm)Pin Diameter (Inch)	Min Flange Bolt Hole (Diameter)	Max Flange Thickness (mm)Max Flange Thickness (Inch)	A	B (max)	C (min)	C (max)	D	E	F	Price
PMF16	16 5/8"	17	2X22 2X7/8"	25	28	185	232	40	25	70	Original price was: $285.00.Current price is: $228.00.	+
PMF19	19 3/4"	20	2X35 2X1-3/8"	30	50	185	254	50	25	95	Original price was: $285.00.Current price is: $228.00.	+
PMF22	22 7/8"	23	2X47 2X1-13/16"	30	50	247	318	50	30	124	Original price was: $285.00.Current price is: $228.00.	+
PMF25	25 1"	26	2X62 2X2-7/16"	30	85	247	353	50	30	155	Original price was: $285.00.Current price is: $228.00.	+
PMF28	28 1-1/8"	29	2X70 2X2-3/4"	30	80	275	382	60	40	181	Original price was: $360.00.Current price is: $290.00.	+
PMF31	31 1-1/4"	32	2X95 2X3-3/4"	32	84	275	385	60	40	321	Original price was: $360.00.Current price is: $290.00.	+
