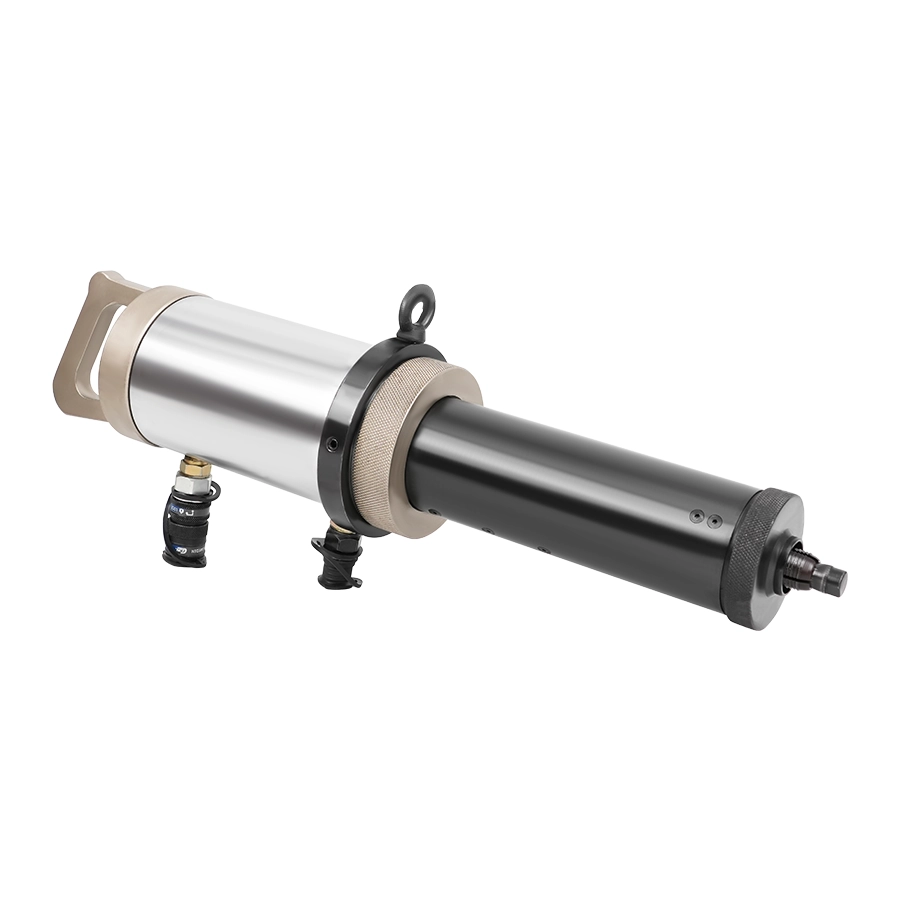

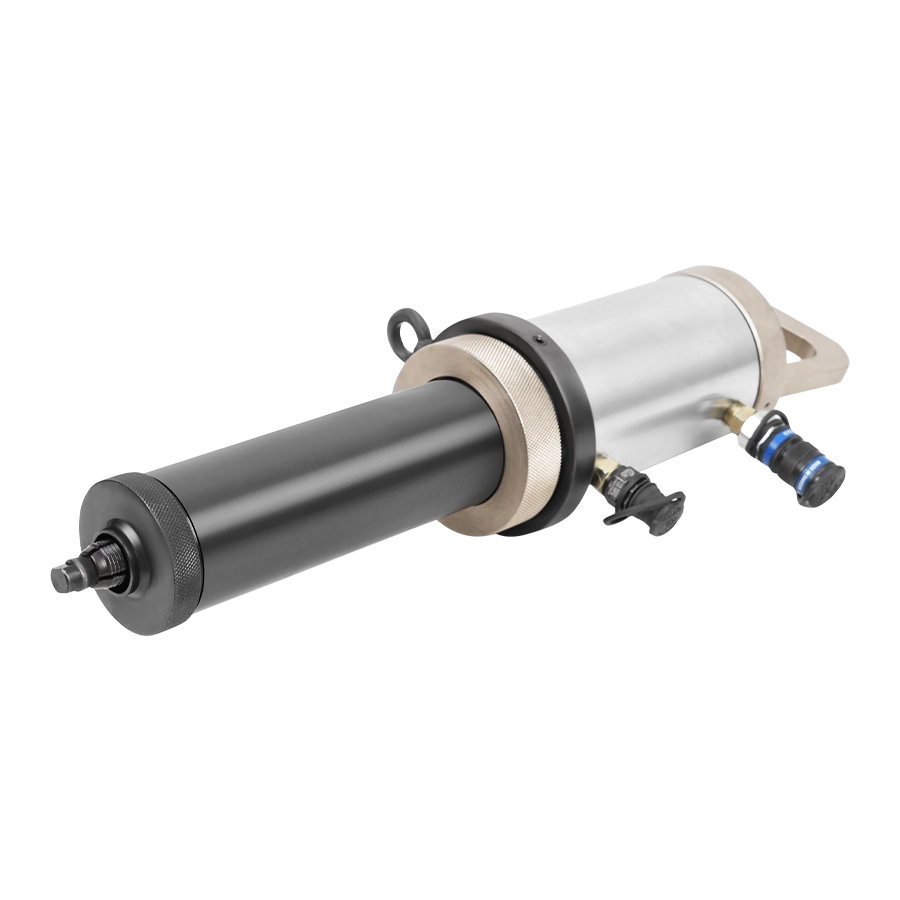

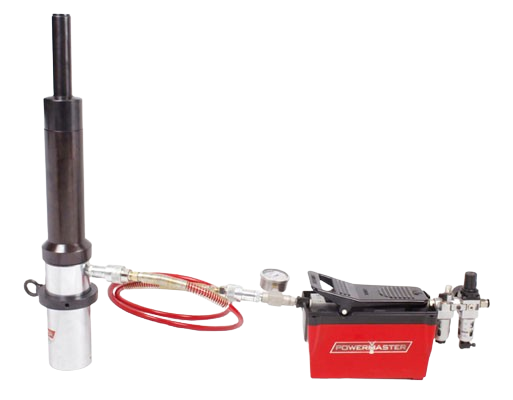

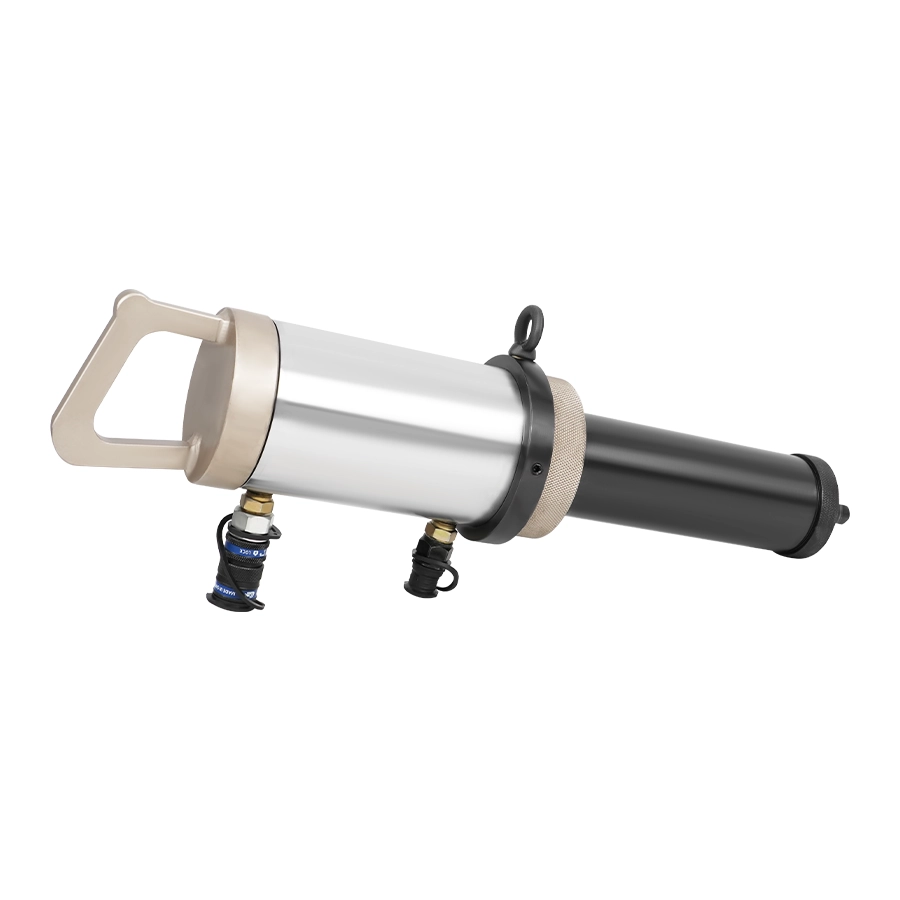

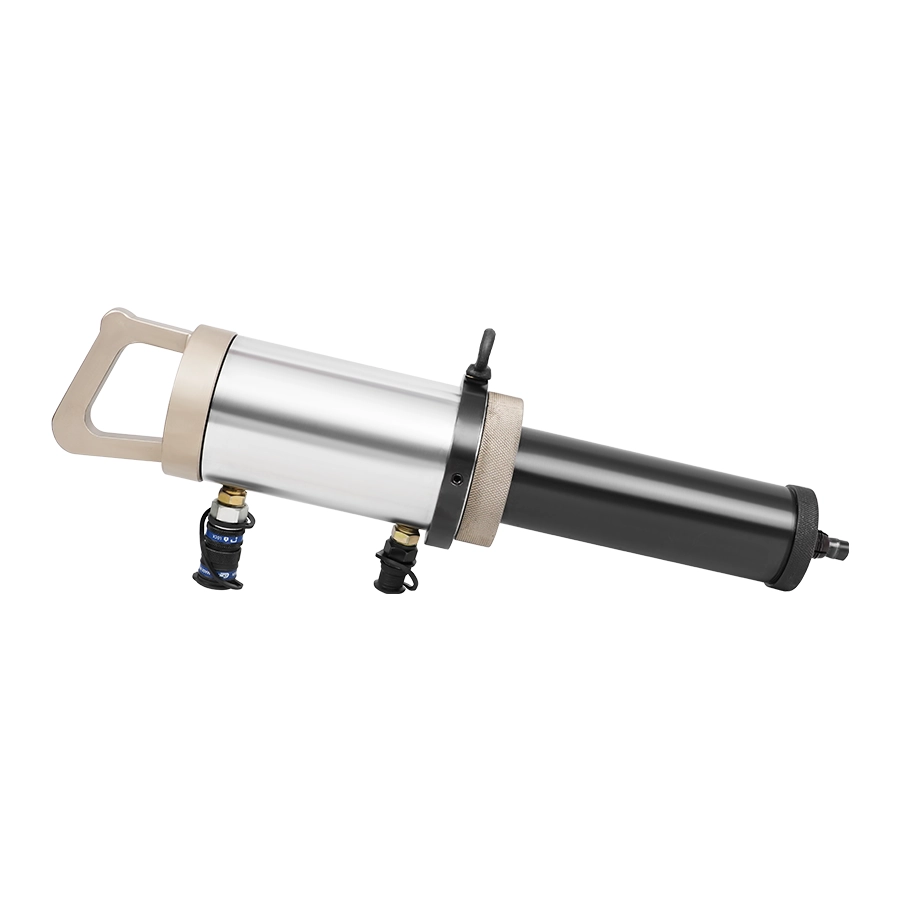

Auto Stub Puller Pulling System
- Designed for fast removal of ferrous and non-ferrous tubes from Condensers, Heat Exchangers, and Boilers.
- A rapid stroke allows the removal of 10 tubes a minute with little operator efforts.
- Gripping and pulling done in single operation.
- Compact and lightweight pulling gun, easy to operate inside boiler drum with 24 Volt DC control.
- Auto ejection of tube after removal.
- Remove tubes without any damage to tube sheet.
Filters
Sort results
Reset
Apply
Item Code | Product | Tube ID(mm) | Power | Details | Price | |
|---|---|---|---|---|---|---|
PPP-35 |
Pneumatic Power pack |
3.5HP- Pneumatic |
700 Bar Pneumatic Powerpack, with Hose Assembly |
$8028.25 |
||
EPP-35 |
Electric Power pack |
1.5Hp, 220V |
700 Bar Electric Powerpack with Hose assembly |
$7497.85 |
||
CTP-900 |
Pulling Gun |
12-30 |
13 Ton |
700 Bar, Stub Pulling Gun, for Tube ID size - 12 to 30mm |
$2861.10 |
|
CTP-1100 |
Pulling Gun |
31 - 50 |
31 Ton |
700 Bar, Stub Pulling Gun, for Tube ID size - 31 to 50mm |
$4301.00 |
