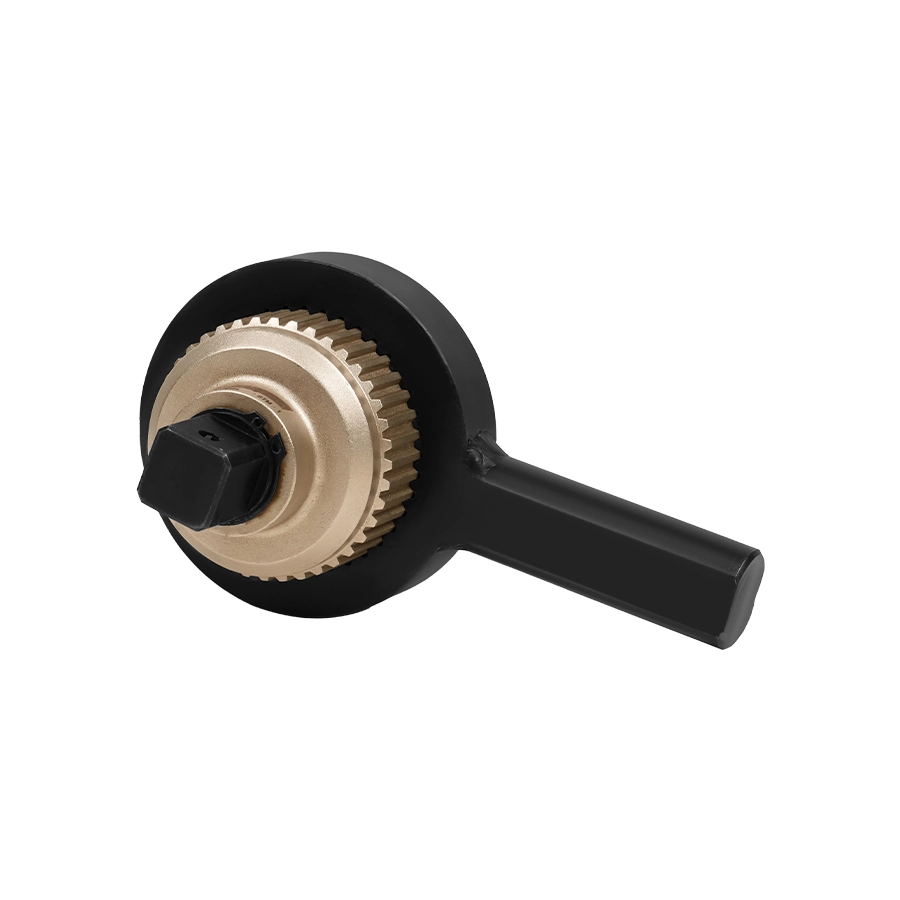

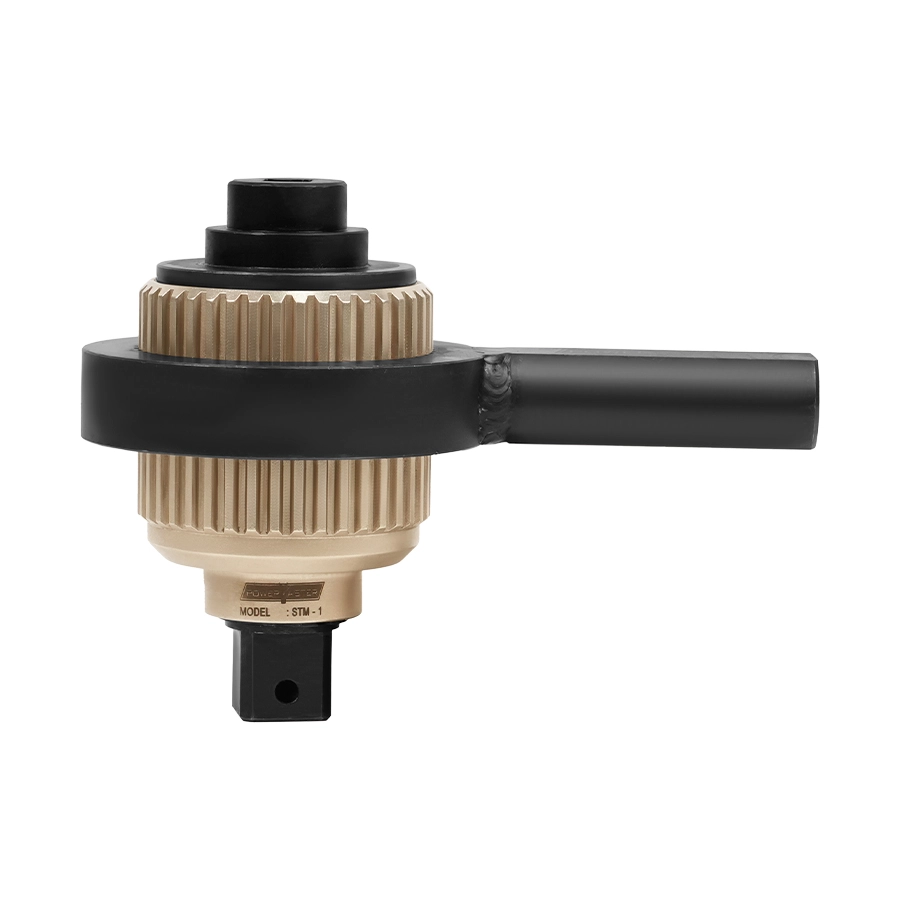

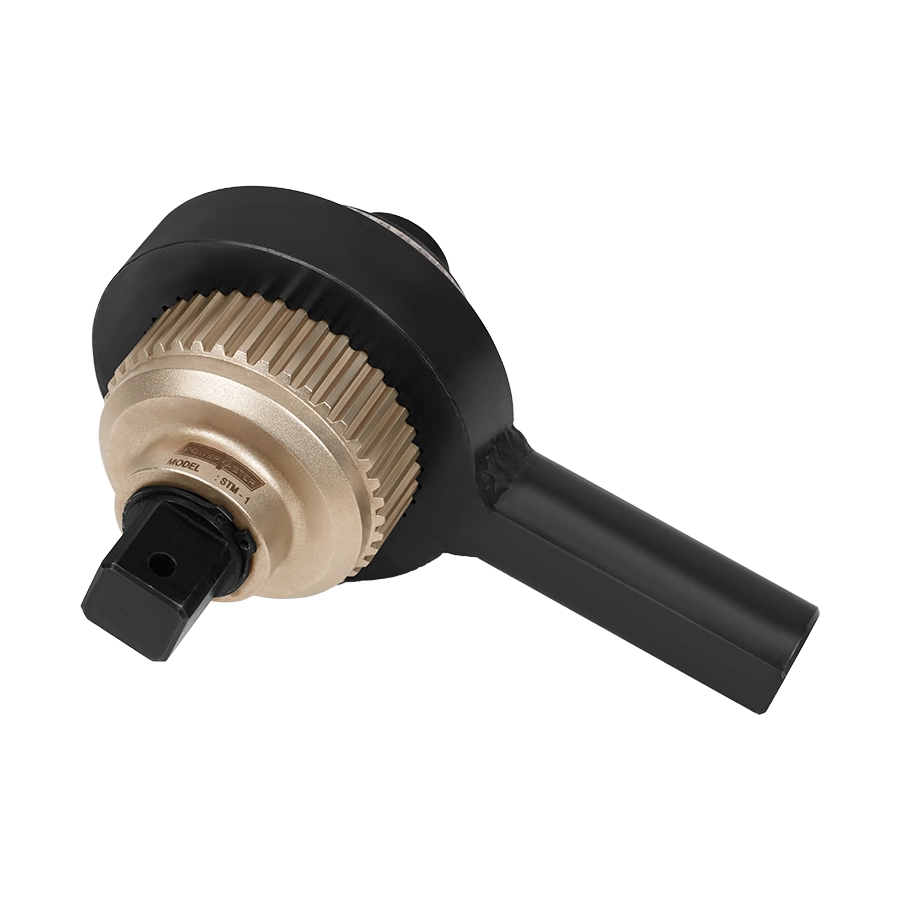

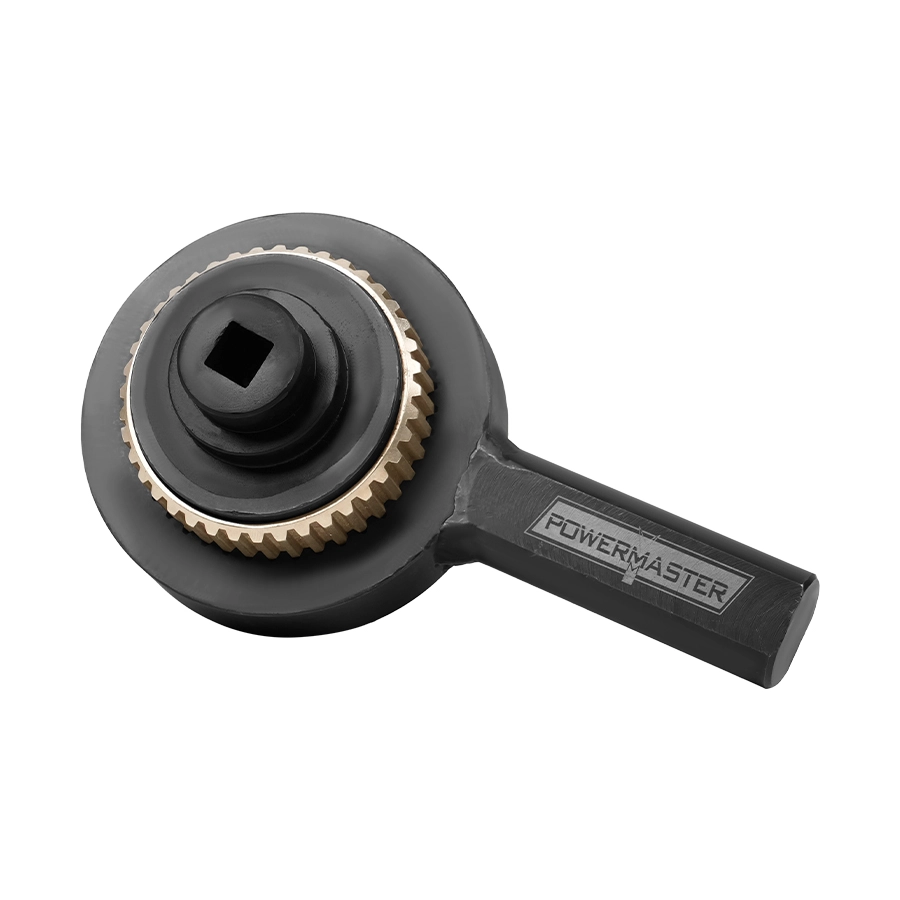

Manual Torque Multipliers - STM Series

  • Compact Size : Compact in size hence can be used in constrained areas.
  • Ratio : Higher reduction ratio for low input.
  • Safety : Safety shear pin provisioned to prevent overloading.
  • AWUR : In built Anti-Windup Mechanism reduces operators effort.
  • Pin Lock : Pin Lock mechanism at output Sq. Drive for positive locking of socket.
  • Accuracy : Better than ± 4% with very high repeatability.
Filters Sort results
Reset Apply
Item Code
Input Square
Output Square
Capacity (Nm)
Capacity (lbf.ft)
Ratio
Weight (kg)
Price
STM-1
1/2"
1"
2500
1845
01:08
5.5
$803.00
+
STM-2
1/2"
1"
3200
2360
01:10
8
$990.00
+
STM-3
3/4"
1.1/2"
4200
3100
01:10
8.5
$1044.00
+
