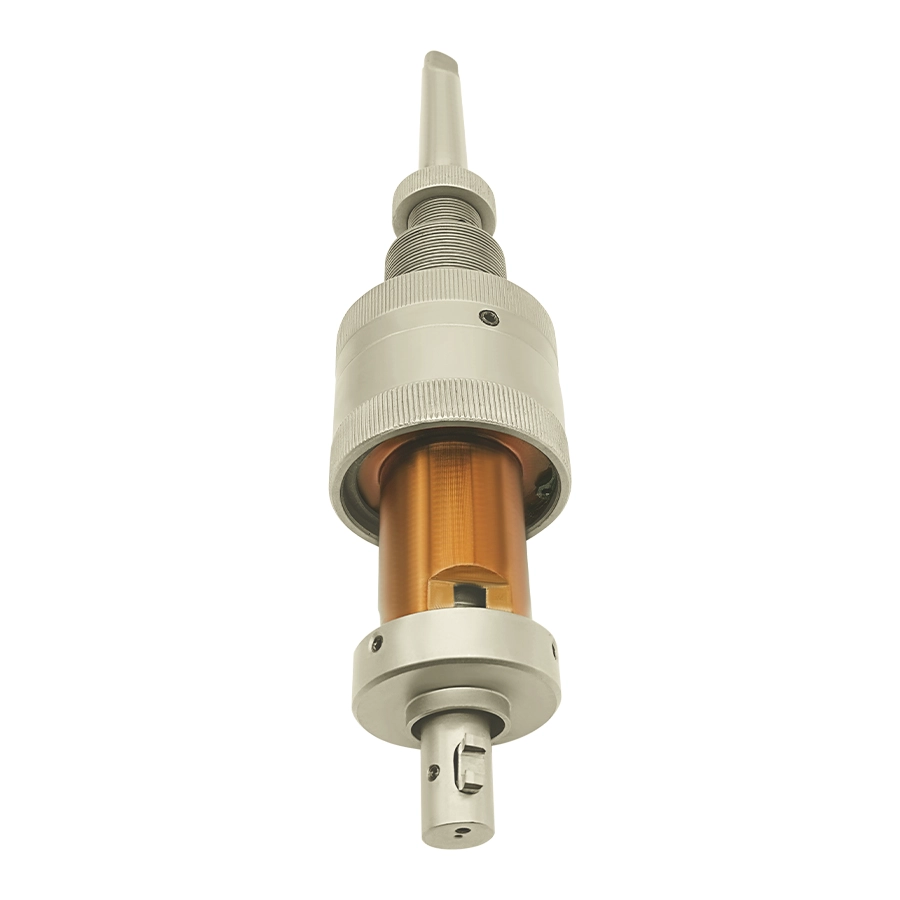

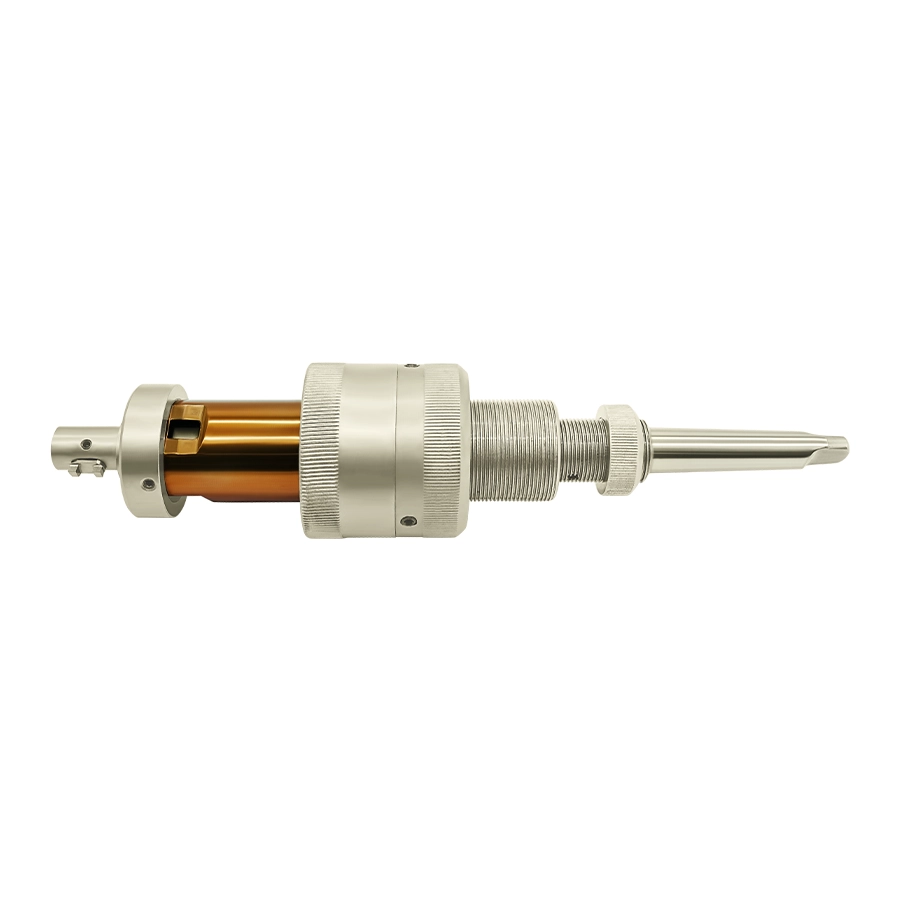

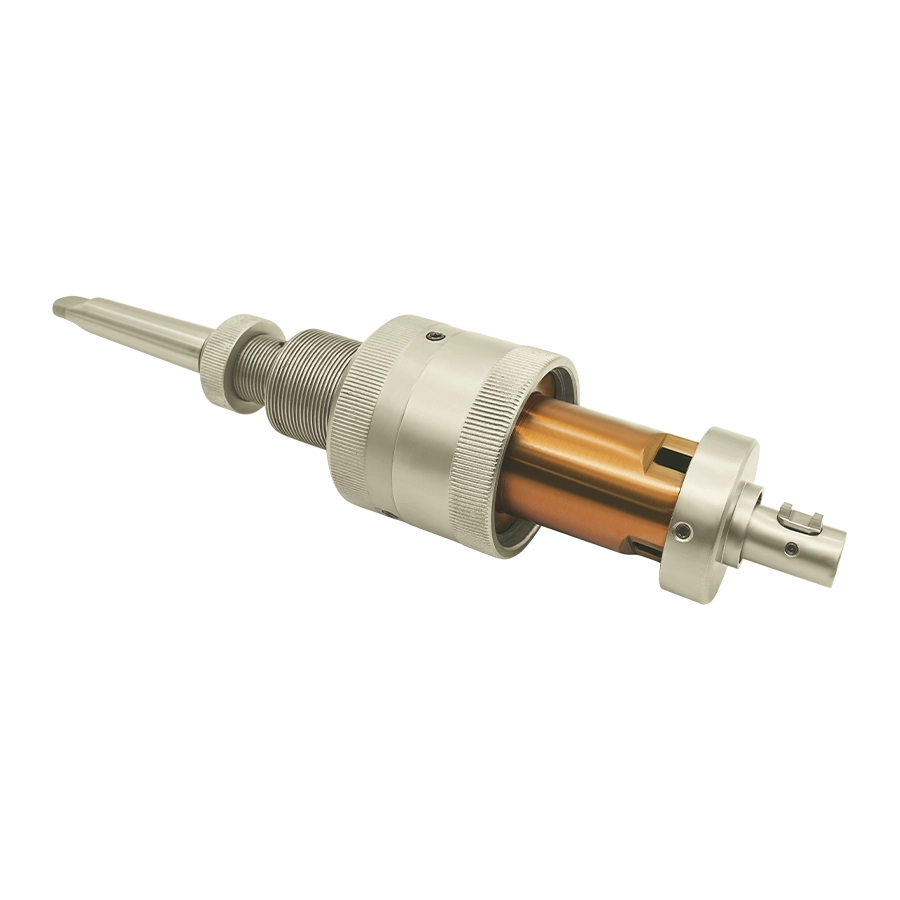

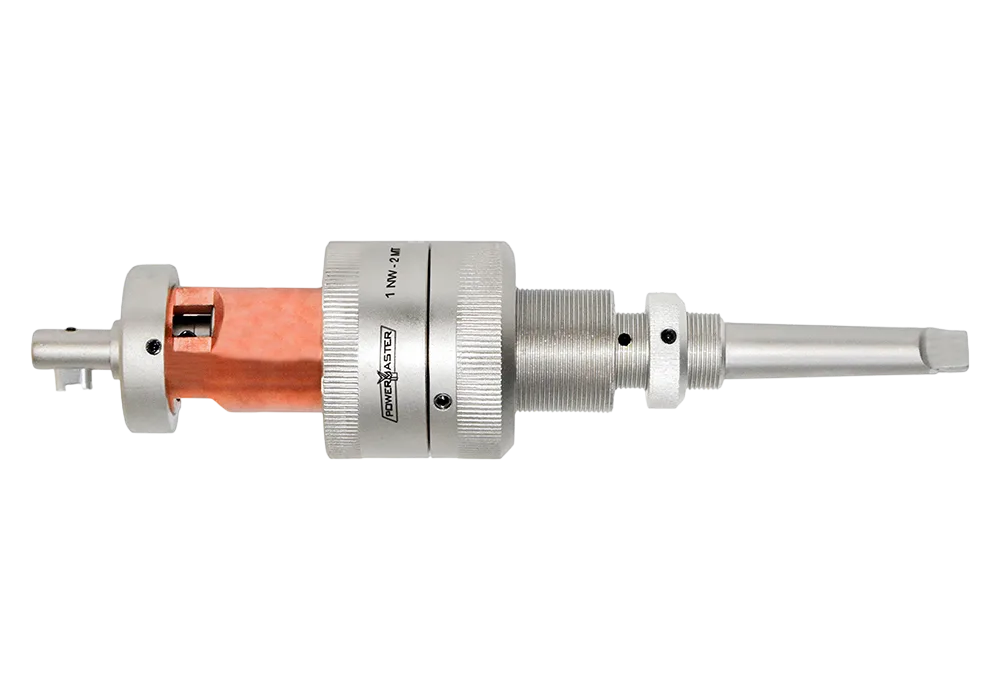

NW Series Grooving Tool Tube Installation Tools
- Changing of pilot nose and cutter allows one tool to cover a range of hole diameters.
- Simple to change cutter for different groove shapes.
- Location and depth of cut easy to adjust.
- Only light pressure required to cut precision grooves.
- Ready to fit CNC drill machines, lathes and boring machines.
- The life of the cutter of this grooving tool is extendable by re-sharpening.
Filters
Sort results
Reset
Apply
Item Code | Product | Tube OD | Tube Size & Spacing | Price | |
|---|---|---|---|---|---|
1NW-2MT |
Grooving Tool |
3/8'' - 1.1/4" |
3/8" to 1.1/4", (9mm to 32mm) |
$543.15 |
|
3NW-3MT |
Grooving Tool |
5/8" - 1.3/4" |
5/8" to 1.3/4", (16mm to 45mm) |
$626.45 |
|
4NW-4MT |
Grooving Tool |
3/4" - 1.7/8" |
3/4" to 1.7/8", (19mm-48mm) |
$729.30 |
|
6NW-5MT |
Grooving Tool |
1.1/2" - 4" |
.1.1/2" to 4", (38mm-102mm) |
$1194.25 |
Filters
Sort results
Reset
Apply
Item Code | Product | Tube OD | Tube Size & Spacing | Price | |
|---|---|---|---|---|---|
1NW-PN-0952 |
Pilot Nose |
3/8 |
3/8" OD Tube Pilot Nose for Grooving Tool - 1NW-2MT |
$45.90 |
|
1NW-PN-1270 |
Pilot Nose |
1/2 |
1/2" OD Tube Pilot Nose for Grooving Tool - 1NW-2MT |
$45.90 |
|
1NW-PN-1588 |
Pilot Nose |
5/8 |
5/8" OD Tube Pilot Nose for Grooving Tool - 1NW-2MT |
$45.90 |
|
1NW-PN-1900 |
Pilot Nose |
3/4 |
3/4" OD Tube Pilot Nose for Grooving Tool - 1NW-2MT |
$45.90 |
|
1NW-PN-2220 |
Pilot Nose |
7/8 |
7/8" OD Tube Pilot Nose for Grooving Tool - 1NW-2MT |
$45.90 |
|
1NW-PN-2540 |
Pilot Nose |
1 |
1" OD Tube Pilot Nose for Grooving Tool - 1NW-2MT |
$45.90 |
|
1NW-PN-3175 |
Pilot Nose |
1.1/4 |
1.1/4" OD Tube Pilot Nose for Grooving Tool - 1NW-2MT |
$45.90 |
|
3NW-PN-1588 |
Pilot Nose |
5/8 |
5/8" OD Tube Pilot Nose for Grooving Tool - 3NW-3MT |
$58.65 |
|
3NW-PN-1900 |
Pilot Nose |
3/4 |
3/4" OD Tube Pilot Nose for Grooving Tool - 3NW-3MT |
$58.65 |
|
3NW-PN-2220 |
Pilot Nose |
7/8 |
7/8" OD Tube Pilot Nose for Grooving Tool - 3NW-3MT |
$58.85 |
|
3NW-PN-2540 |
Pilot Nose |
1 |
1" OD Tube Pilot Nose for Grooving Tool - 3NW-3MT |
$58.85 |
|
3NW-PN-3175 |
Pilot Nose |
1.1/4 |
1.1/4" OD Tube Pilot Nose for Grooving Tool - 3NW-3MT |
$58.85 |
|
3NW-PN-3810 |
Pilot Nose |
1.1/2 |
1.1/2" OD Tube Pilot Nose for Grooving Tool - 3NW-3MT |
$58.85 |
|
3NW-PN-4440 |
Pilot Nose |
1.3/4 |
1.3/4" OD Tube Pilot Nose for Grooving Tool - 3NW-3MT |
$58.85 |
|
4NW-PN-1900 |
Pilot Nose |
3/4 |
3/4" OD Tube Pilot Nose for Grooving Tool - 4NW-4MT |
$62.05 |
|
4NW-PN-2220 |
Pilot Nose |
7/8 |
7/8" OD Tube Pilot Nose for Grooving Tool - 4NW-4MT |
$62.05 |
|
4NW-PN-2540 |
Pilot Nose |
1 |
1" OD Tube Pilot Nose for Grooving Tool - 4NW-4MT |
$62.05 |
|
4NW-PN-3175 |
Pilot Nose |
1.1/4 |
1.1/4" OD Tube Pilot Nose for Grooving Tool - 4NW-4MT |
$62.05 |
|
4NW-PN-3800 |
Pilot Nose |
1.1/2 |
1.1/2" OD Tube Pilot Nose for Grooving Tool - 4NW-4MT |
$62.05 |
|
4NW-PN-4440 |
Pilot Nose |
1.3/4 |
1.3/4" OD Tube Pilot Nose for Grooving Tool - 4NW-4MT |
$62.05 |
|
4NW-PN-5080 |
Pilot Nose |
2 |
2" OD Tube Pilot Nose for Grooving Tool - 4NW-4MT |
$62.05 |
|
6NW-PN-3800 |
Pilot Nose |
1.1/2 |
1.1/2" OD Tube Pilot Nose for Grooving Tool - 6NW-5MT |
$96.90 |
|
6NW-PN-5080 |
Pilot Nose |
2 |
2" OD Tube Pilot Nose for Grooving Tool - 6NW-5MT |
$96.90 |
|
6NW-PN-6350 |
Pilot Nose |
2.1/2 |
2.1/2" OD Tube Pilot Nose for Grooving Tool - 6NW-5MT |
$96.90 |
|
6NW-PN-6350 |
Pilot Nose |
3 |
3" OD Tube Pilot Nose for Grooving Tool - 6NW-5MT |
$96.90 |
|
6NW-PN-6350 |
Pilot Nose |
3.1/2 |
3.1/2" OD Tube Pilot Nose for Grooving Tool - 6NW-5MT |
$96.90 |
|
6NW-PN-6350 |
Pilot Nose |
4 |
4" OD Tube Pilot Nose for Grooving Tool - 6NW-5MT |
$96.90 |
|
1NW-CF-0952 |
CF Cutter |
3/8 |
Circular Cutter Tube OD- 3/8" (Spacing : 3x6x3 mm) |
$77.55 |
|
1NW-CF-1270 |
CF Cutter |
1/2 |
Circular Cutter Tube OD- 1/2" (Spacing : 3x6x3 mm) |
$80.75 |
|
1NW-CF-1588 |
CF Cutter |
5/8 |
Circular Cutter Tube OD- 5/8" (Spacing : 3x6x3 mm) |
$95.20 |
