Pneumatic Series
Pipe Bevelling Machines

BODY - Light Weight, High Pressure Cast Aluminum Body Allows Continuous Operation Under The Harshest Conditions.
TOOL HOLDER - Holds The Cutting Tool Bits Tightly At The Desired Position. Its Robust Construction And Support To The Cutting Bits Ensure Vibration Free Performance.
FEED SHAFT - High Strength, Precise Machined And Hardened Feed Shaft Provides A Strong Support To The Assembly Which Slides Over It.
JAW - Wedge Style Hardened Tool Steel Mounted Jaws For Maximum Life And Secure Positioning.
Available Within The Locking Range Of 49mm To 203mm.
CENTRAL MANDREL - Expanding Mandrel Allows Fast, Accurate And Self-Centering Alignment With Torque-Free Operation For Operator Safety.
GEAR BOX - Highly Accurately Machined For Positive Power Transmission With Less Noise And No Wear And Tear.
BROACHED BUSH - Through Hardened Broached Bush Restricts The Angular Movement Of The Machine.
PNEUMATIC OR ELECTRIC DRIVE - High Quality Pneumatic Or Electric Drive For Reliable Service And Long Working Life.

Same Day Delivery

55 Years Of Engineering Expertise

ISO Standards

Secure Transaction

Select & Add to Cart

Item Code	Tube Range	Power	Locking Range (mm)	Feed Stroke (mm)	Details	Price

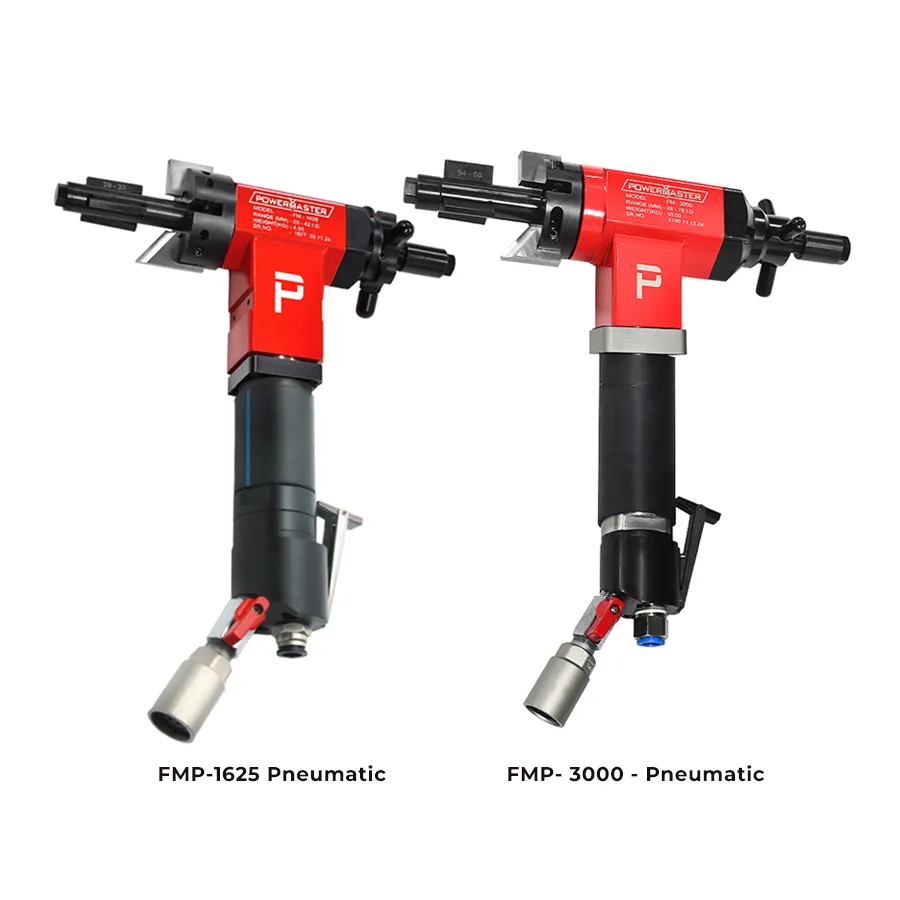

FMP-1625	3/4" to 1.5/8''	0.6 HP	20 - 42	23	Pneumatic Bevelling Machine,	$2240.00	+
FMP-3000	1.1/8" to 3''	0.83 HP	28 - 76	40	Pneumatic Bevelling Machine	$2580.00	+

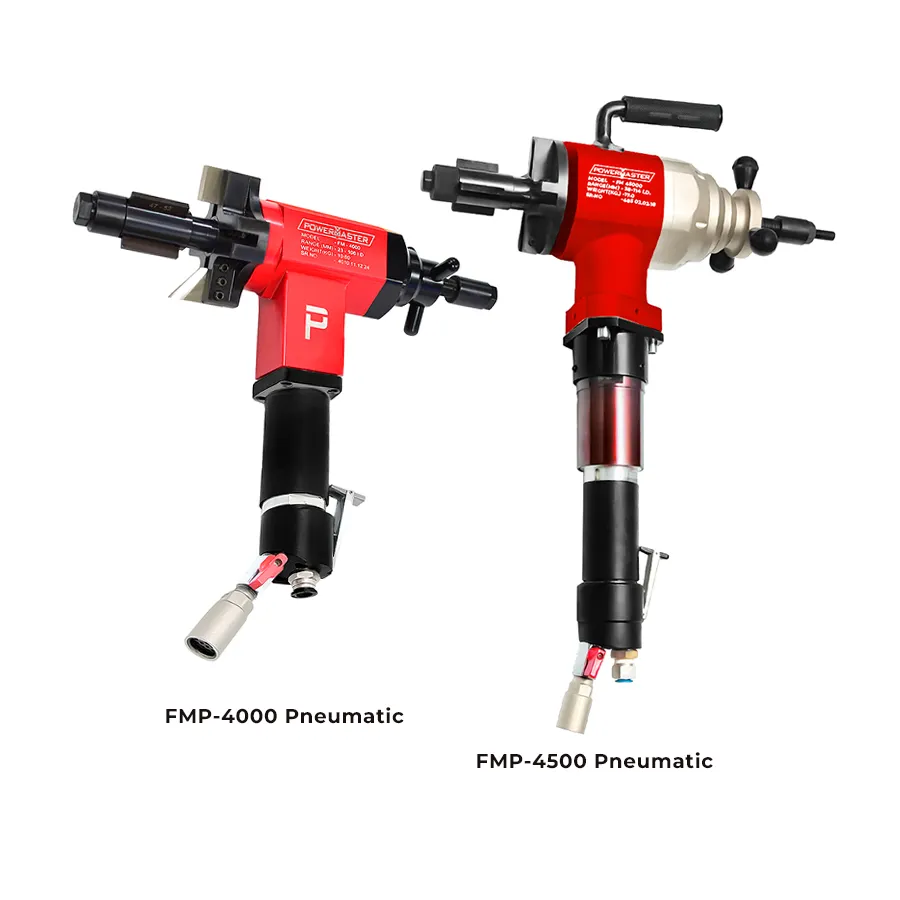

FMP-4000	7/8" to 4''	1.33 HP	23 - 104	40	Pneumatic Bevelling Machine	$3600.00	+
FMP-4500	1.1/2" to 4.5''	1.33 HP	39 - 104	40	Pneumatic Bevelling Machine	$3610.00	+

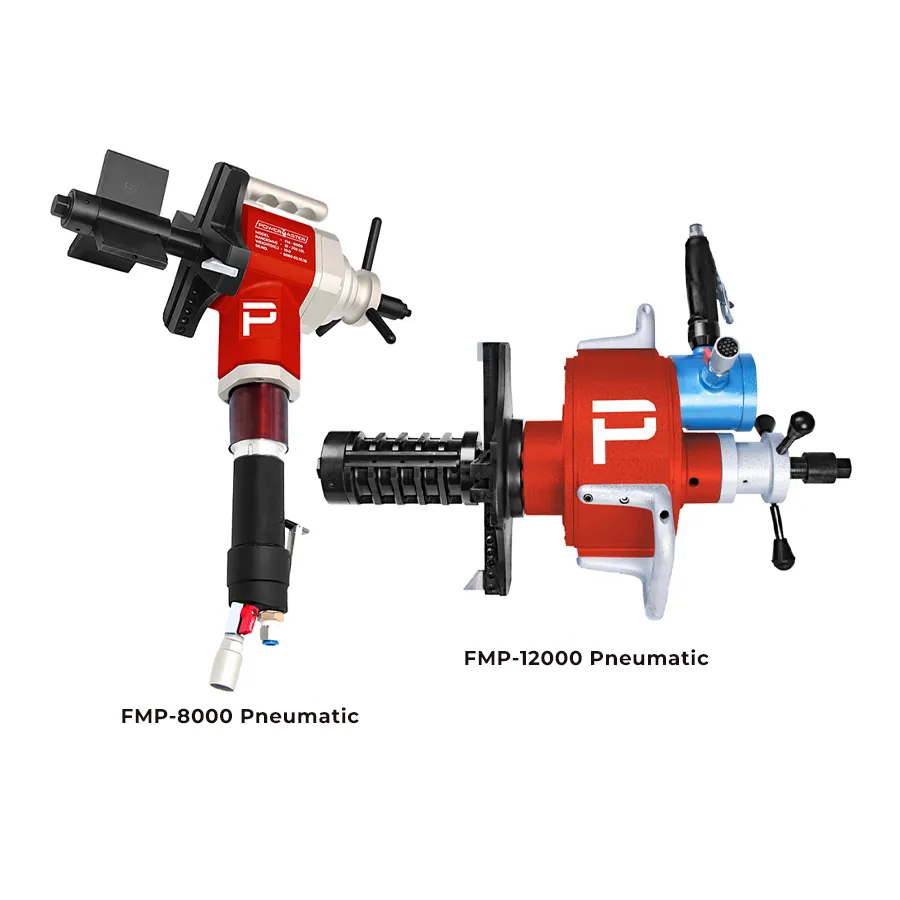

FMP-8000	2" to 8''	1.33 HP	50 - 203	40	Pneumatic Bevelling Machine	$4730.00	+
FMP-12000	4" to 12''	1.9 HP	100- 306	50	Pneumatic Bevelling Machine	$9990.00	+
1625 Auto Lock	3/4" to 1.5/8"	0.6 HP	20 - 42	23	Facing & Beveling Machine	$3030.00	+
1625 Auto Lock Lever Feed	3/4" - 1.5/8"	0.6 HP	20 - 42	23	Facing & Beveling Machine	$3140.00	+
3000 Auto Lock	1.1/8" to 3''	0.83 HP	28 - 76	40	Facing & Beveling Machine	$3960.00	+
3000 Auto Lock Lever Feed	1.1/8" to 3''	0.83 HP	28 - 76	40	Facing & Beveling Machine	$4140.00	+
FMP-18000	4" to 18"	2.6 HP	102 - 457	60	Pneumatic Bevelling Machine	$15200.00	+
FMP-24000	7" to 24"	3.5 HP	180 - 609	60	Pneumatic Bevelling Machine	$22400.00	+
P-2864P/AF Pneumatic	28-64 OD	1HP	28 - 63		OD-Mounted Auto-Feed Pipe Beveling Machine	Original price was: $1890.00.Current price is: $1520.00.	+
P-4276P/AF Pneumatic	42-76 OD	1HP	42 - 76		OD-Mounted Auto-Feed Pipe Beveling Machine	Original price was: $1990.00.Current price is: $1600.00.	+
FFP-4000 Pneumatic	1.3/8" to 4"	0.83 HP	35 - 104	17	Flange Pipe Facing Machine Flange Facer	Original price was: $2190.00.Current price is: $1760.00.	+
FM-1625-MD	3/4" to 1.5/8"		20.0 - 42.0		Air motor Driven, Tube Facing Mini Drill	$4250.00	+
