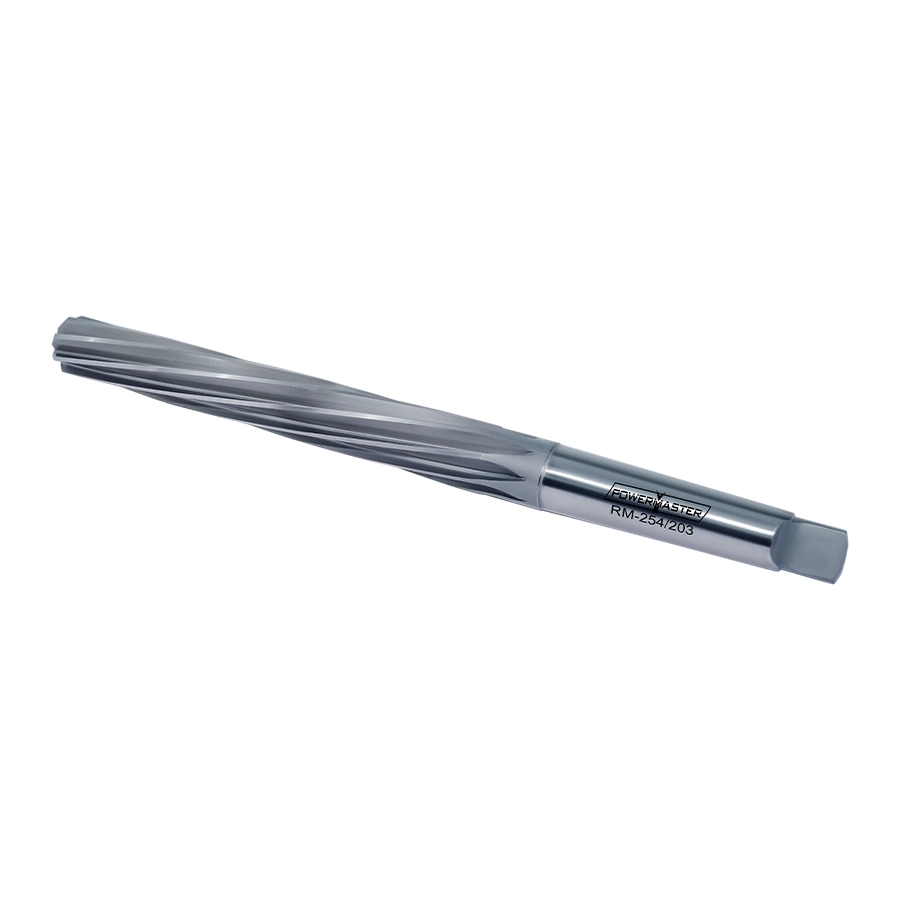

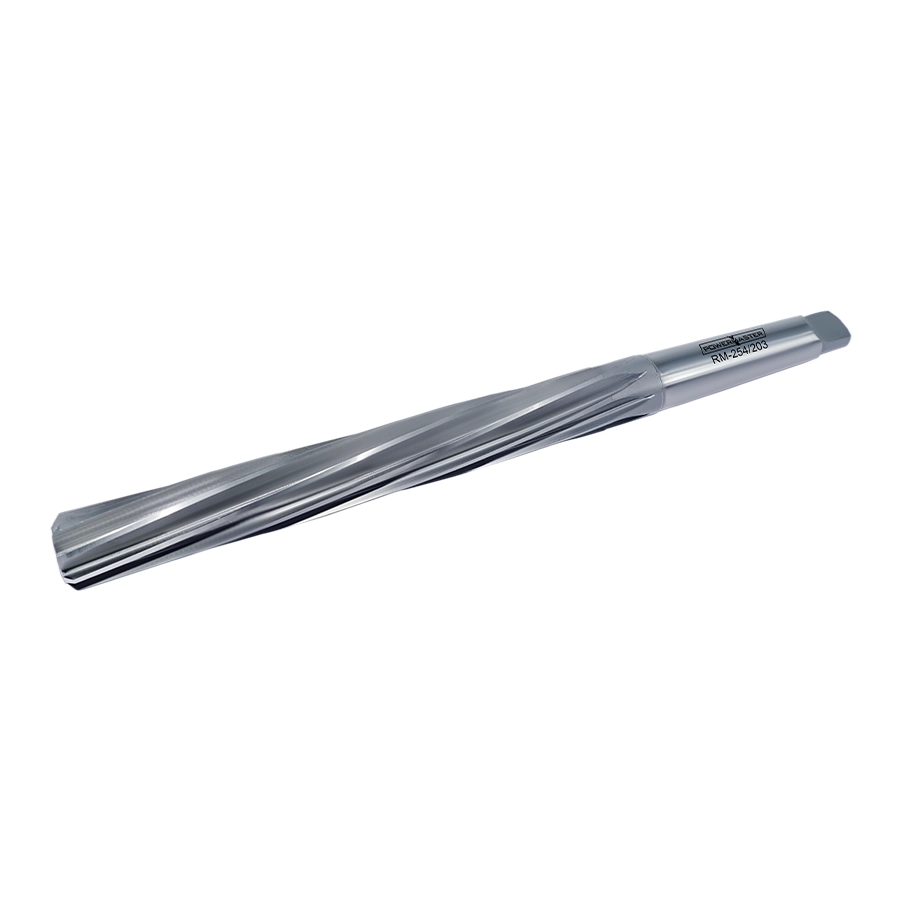

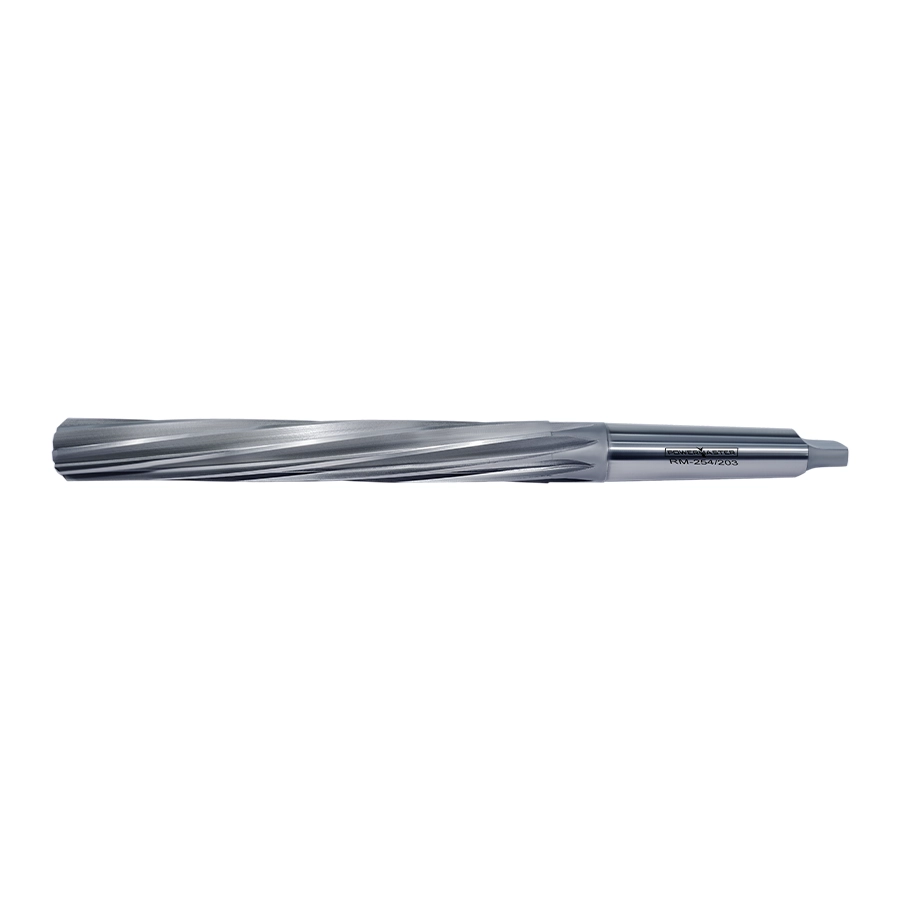

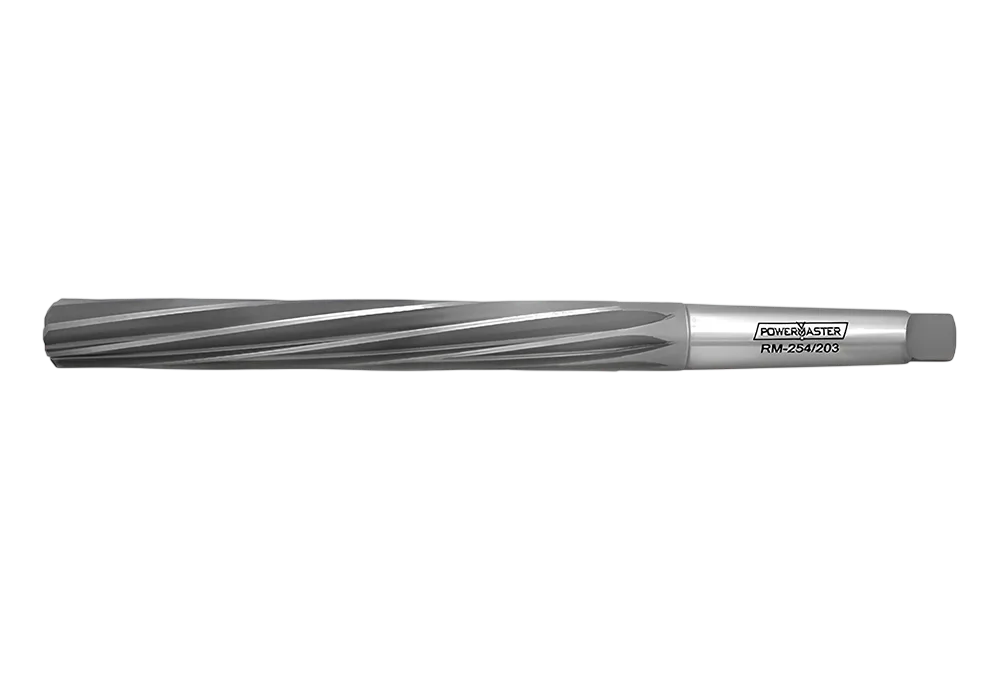

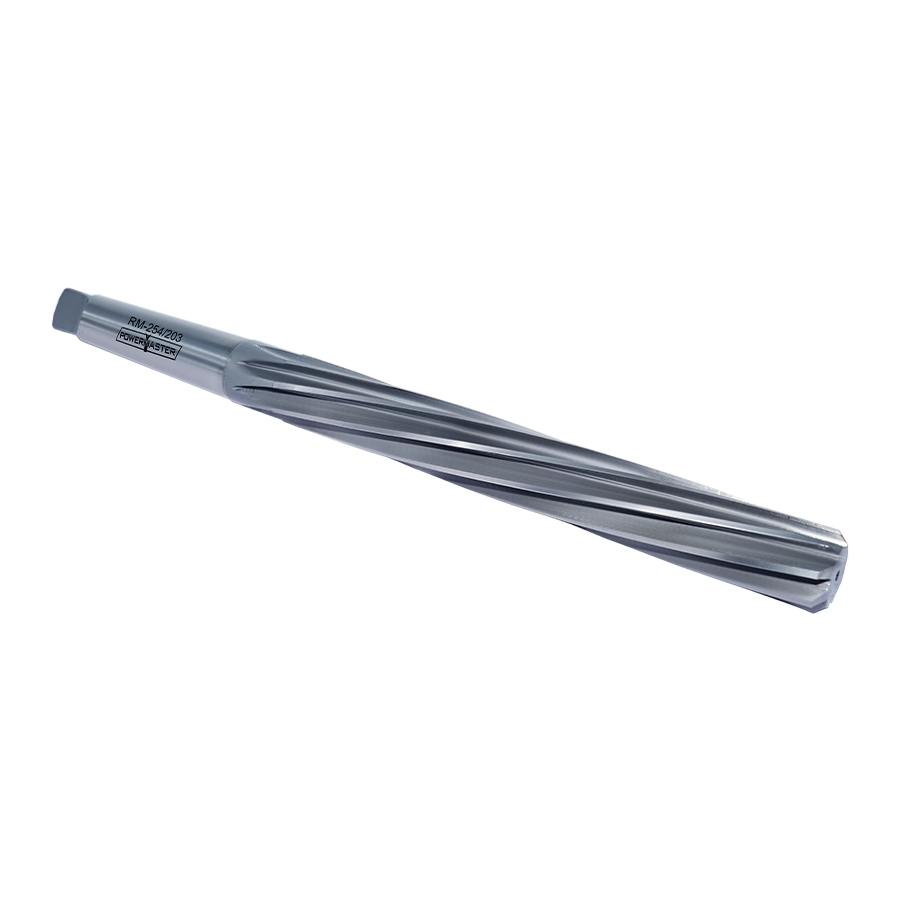

Tube Sheet Hole Reamer Tube Installation Tools
- Use : Highly recommended for use on thin walled tubes (19 thru 22 gauge walls) of Stainless Steel, Titanium, Incoloy and other exotic materials in thick tube sheets.
- Advantages : Gives a more concentric and even expansion when expanding thin walled tubes vs. a conventional 3 roll tube expander and reduces tube spring back effect.
- Expanders for tube sizes not listed below are also available. Please enquire.
Filters
Sort results
Reset
Apply
Item Code | Product | Tube OD | Drive Size | OAL (mm) | Details | Price | |
|---|---|---|---|---|---|---|---|
RM-095/66 |
Reamer |
3/8 |
Morse Taper # 1 |
146 |
Reamer Size-9.65mm/0.380", Flute Length-66mm/2.60" |
$46.75 |
|
RM-095/101 |
Reamer |
3/8 |
Morse Taper # 1 |
146 |
Reamer Size-9.65mm/0.380", Flute Length-101mm/3.97" |
$54.40 |
|
RM-095/152 |
Reamer |
3/8 |
Morse Taper # 1 |
146 |
Reamer Size-9.65mm/0.380", Flute Length-152mm/5.98", |
$63.75 |
|
RM-127/76 |
Reamer |
1/2 |
Morse Taper # 1 |
156 |
Reamer Size-12.83mm/0.505", Flute Length-76mm/2.99'' |
$64.60 |
|
RM-127/101 |
Reamer |
1/2 |
Morse Taper # 1 |
181 |
Reamer Size-12.83mm/0.505", Flute Length-101mm/3.97" |
$70.55 |
|
RM-127/152 |
Reamer |
1/2 |
Morse Taper # 1 |
232 |
Reamer Size-12.83mm/0.505", Flute Length-152mm/5.92", Shank: Morse Taper # 1 |
$90.10 |
|
RM-158/87 |
Reamer |
5/8 |
Morse Taper # 2 |
187 |
Reamer Size-16.03mm/0.380", Flute Length-87mm/3.42", Shank: |
$68.00 |
|
RM-158/152 |
Reamer |
5/8 |
Morse Taper # 2 |
252 |
Reamer Size- 0.380" (16.03mm), Flute Length- 5.98" (152mm) |
$86.70 |
|
RM-158/203 |
Reamer |
5/8 |
Morse Taper # 2 |
300 |
Reamer Size- 0.380" (16.03mm), Flute Length- 7.99" (203mm) |
$103.70 |
|
RM-190/100 |
Reamer |
3/4 |
Morse Taper # 2 |
200 |
Reamer Size- 0.758" (19.25mm), Flute Length- 3.90" (100mm) |
$92.65 |
|
RM-190/152 |
Reamer |
3/4 |
Morse Taper # 2 |
252 |
Reamer Size- 0.758" (19.25mm), Flute Length- 5.98" (152mm) |
$108.80 |
|
RM-190/203 |
Reamer |
3/4 |
Morse Taper # 2 |
300 |
Reamer Size- 0.758" (19.25mm), Flute Length- 7.99" (203mm) |
$130.90 |
|
RM-222/107 |
Reamer |
7/8 |
Morse Taper # 2 |
207 |
Reamer Size-22.42mm/0.875", Flute Length-107mm/4.21" |
$123.25 |
|
RM-222/152 |
Reamer |
7/8 |
Morse Taper # 2 |
52 |
Reamer Size-22.42mm/0.875", Flute Length-152mm/5.98" |
$141.95 |
|
RM-222/203 |
Reamer |
7/8 |
Morse Taper # 2 |
300 |
Reamer Size-22.42mm/0.875", Flute Length-203mm/7.99" |
$175.10 |
|
RM-254/115 |
Reamer |
1 |
Morse Taper # 3 |
242 |
Reamer Size-25.65mm/1.010", Flute Length-115mm/4.53" |
$170.00 |
|
RM-254/203 |
Reamer |
1 |
Morse Taper # 3 |
330 |
Reamer Size-25.65mm/1.010", Flute Length-203mm/7.99" |
$213.35 |
|
RM-254/254 |
Reamer |
1.1/8 |
Morse Taper # 3 |
381 |
Reamer Size-25.65mm/1.010", Flute Length-254mm/10.00" |
$245.65 |
|
RM-285/124 |
Reamer |
1.1/8 |
Morse Taper # 3 |
251 |
Reamer Size-28.86mm/1.136", Flute Length-124mm/4.88" |
$213.35 |
|
RM-285/203 |
Reamer |
1.1/8 |
Morse Taper # 3 |
330 |
Reamer Size-28.86mm/1.136", Flute Length-203mm/7.99" |
$241.40 |
|
RM-285/254 |
Reamer |
1.1/8 |
Morse Taper # 3 |
381 |
Reamer Size-28.86mm/1.136", Flute Length-254mm/10.00" |
$300.05 |
|
RM-317/133 |
Reamer |
1.1/4 |
Morse Taper # 3 |
293 |
Reamer Size-32.07mm/1.262", Flute Length-133mm/5.23" |
$375.70 |
|
RM-317/203 |
Reamer |
1.1/4 |
Morse Taper # 3 |
203 |
Reamer Size-32.07mm/1.262", Flute Length-203mm/7.99" |
$449.65 |
|
RM-317/254 |
Reamer |
1.1/4 |
Morse Taper # 3 |
254 |
Reamer Size-32.07mm/1.262", Flute Length-254mm/10.00" |
$567.80 |
