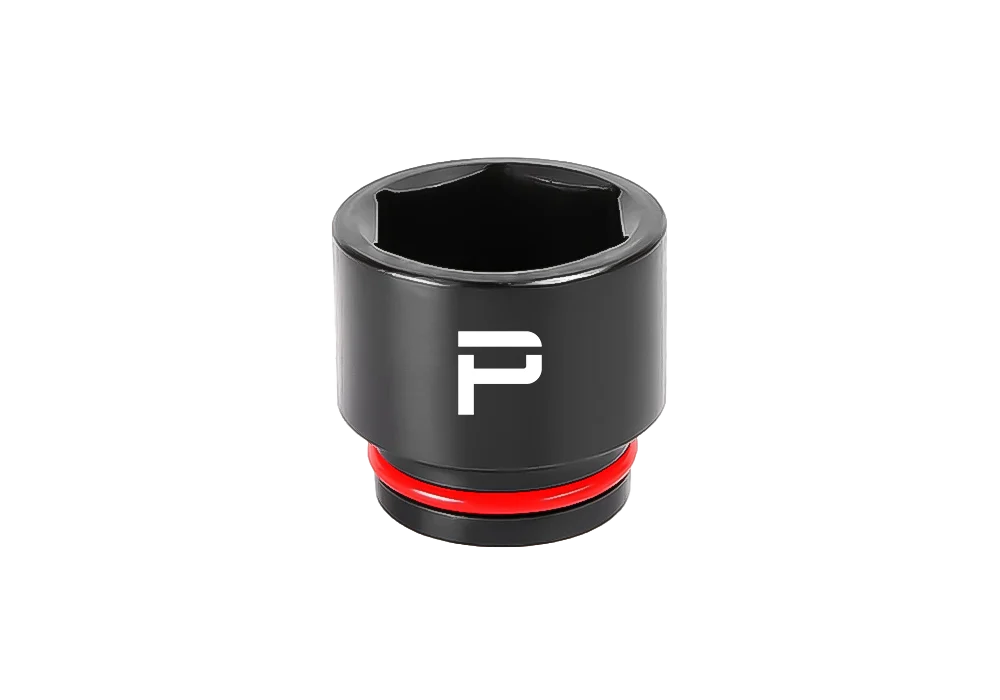

Impact Sockets 1" Square Drive

All Impact Sockets are made from high strength alloy steel.
All Impact Sockets are heat treated for the best combination of strength and impact resistance.
The depth of the Hex openings is designed to accomodate the full standard fastener head.
All Impact Sockets have chamfered openings for ease in engagement with the drive tool and the fastener.
All Impact Sockets have a Ring-N-Pin arrangement for securing them to the drive.
Sockets are plated and black oxidized coated for increased protection from rusting.

Item Code	Size	Profile	Wall Thickness	D1	D2	T	C	OAL	Weight	Price
S-16M19	19	Hexagon	Standard	36	51	14	25	55	0.51	$10.00	+
S-16M20	20	Hexagon	Standard	36	51	14	25	55	0.5	$10.00	+
S-16M21	21	Hexagon	Standard	38	51	14	25	55	0.52	$10.00	+
S-16M22	22	Hexagon	Standard	40	51	14	25	55	0.53	$10.00	+
S-16M23	23	Hexagon	Standard	40	51	14	25	55	0.52	$10.00	+
S-16M24	24	Hexagon	Standard	42	51	16	27	57	0.55	$11.00	+
S-16M25	25	Hexagon	Standard	43	51	16	27	57	0.55	$11.00	+
S-16M26	26	Hexagon	Standard	45	51	16	27	57	0.56	$11.00	+
S-16M27	27	Hexagon	Standard	46	51	16	27	57	0.57	$11.00	+
S-16M28	28	Hexagon	Standard	47	51	16	27	57	0.57	$11.00	+
S-16M29	29	Hexagon	Standard	48	51	18	29	59	0.59	$11.00	+
S-16M30	30	Hexagon	Standard	49	54	18	29	59	0.66	$11.00	+
S-16M31	31	Hexagon	Standard	51	54	18	29	59	0.66	$11.00	+
S-16M32	32	Hexagon	Standard	52	54	18	29	59	0.68	$11.00	+
S-16M33	33	Hexagon	Standard	54	54	18	29	59	0.69	$11.00	+
S-16M34	34	Hexagon	Standard	54	54	20	31	61	0.7	$12.00	+
S-16M35	35	Hexagon	Standard	54	54	20	31	61	0.69	$12.00	+
S-16M36	36	Hexagon	Standard	57	54	20	31	61	0.78	$12.00	+
S-16M37	37	Hexagon	Standard	57	54	20	31	61	0.76	$13.00	+
S-16M38	38	Hexagon	Standard	59	54	22	34	64	0.84	$13.00	+
S-16M39	39	Hexagon	Standard	60	54	22	34	64	0.88	$13.00	+
S-16M40	40	Hexagon	Standard	62	54	22	34	64	0.85	$15.00	+
S-16M41	41	Hexagon	Standard	62	54	22	34	64	0.9	$15.00	+
S-16M42	42	Hexagon	Standard	64	54	24	36	66	0.97	$15.00	+
S-16M43	43	Hexagon	Standard	65	54	24	36	66	0.98	$16.00	+
S-16M44	44	Hexagon	Standard	66	54	24	36	66	0.98	$16.00	+
S-16M45	45	Hexagon	Standard	68	54	24	36	66	1.03	$16.00	+
S-16M46	46	Hexagon	Standard	68	54	26	38	68	1.02	$16.00	+
S-16M47	47	Hexagon	Standard	71	54	26	38	68	1.12	$17.00	+
S-16M48	48	Hexagon	Standard	71	54	26	38	68	1.08	$18.00	+
