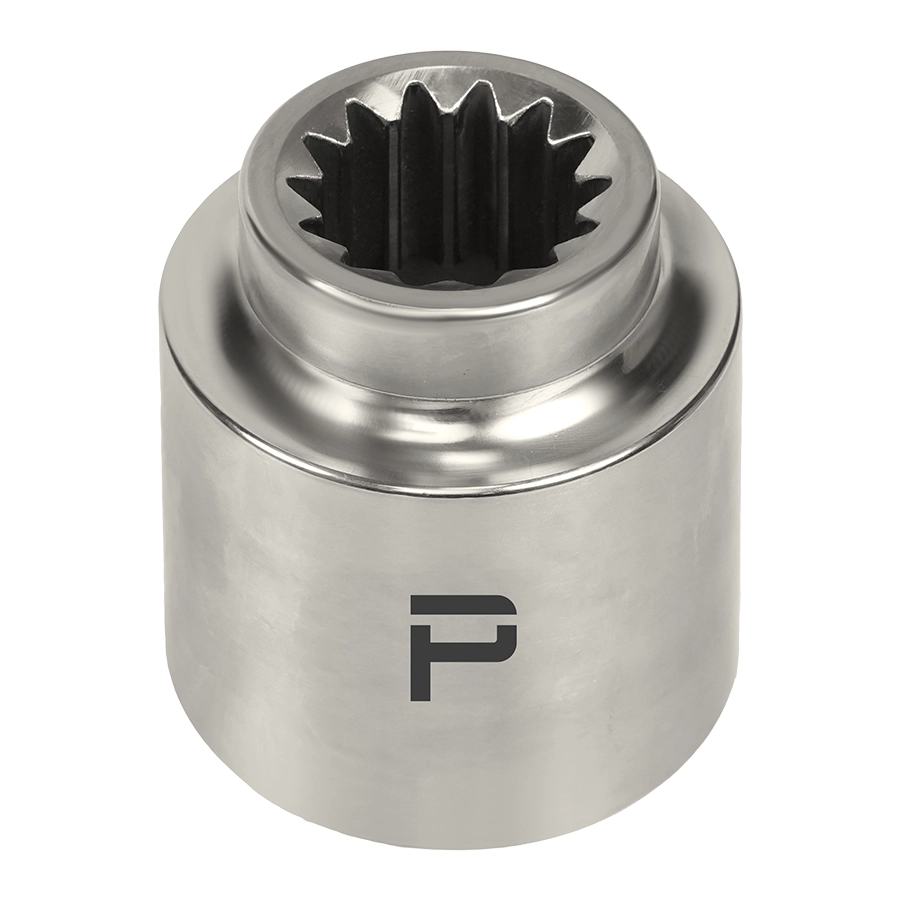

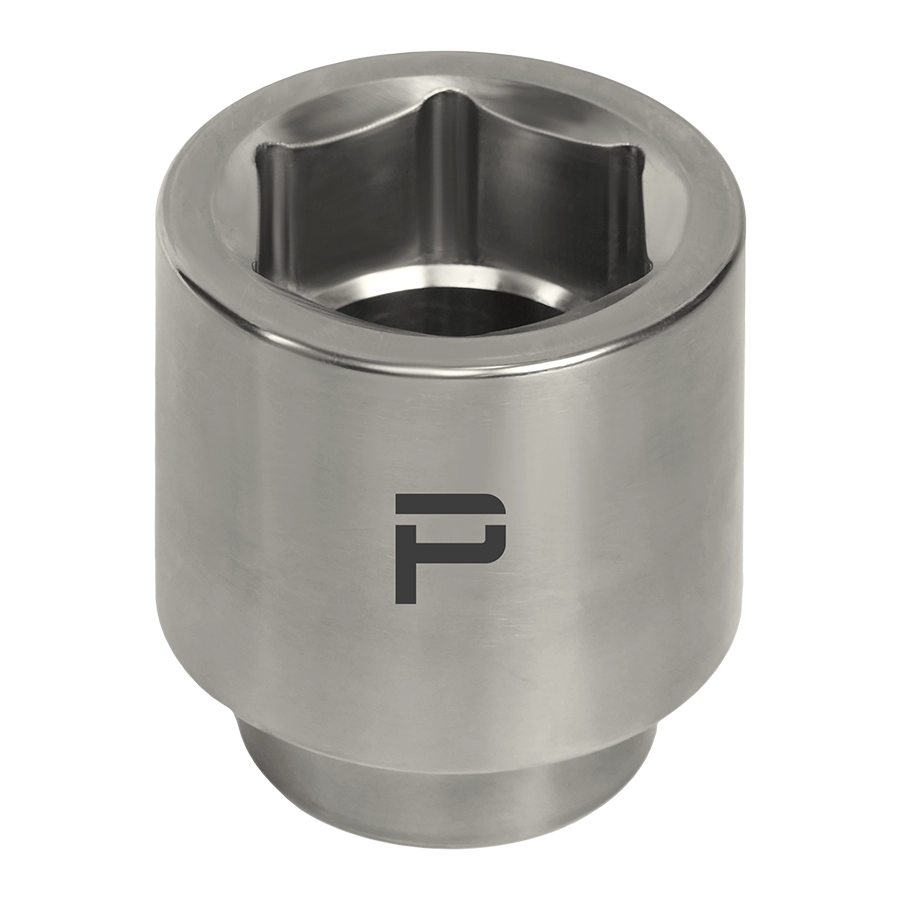

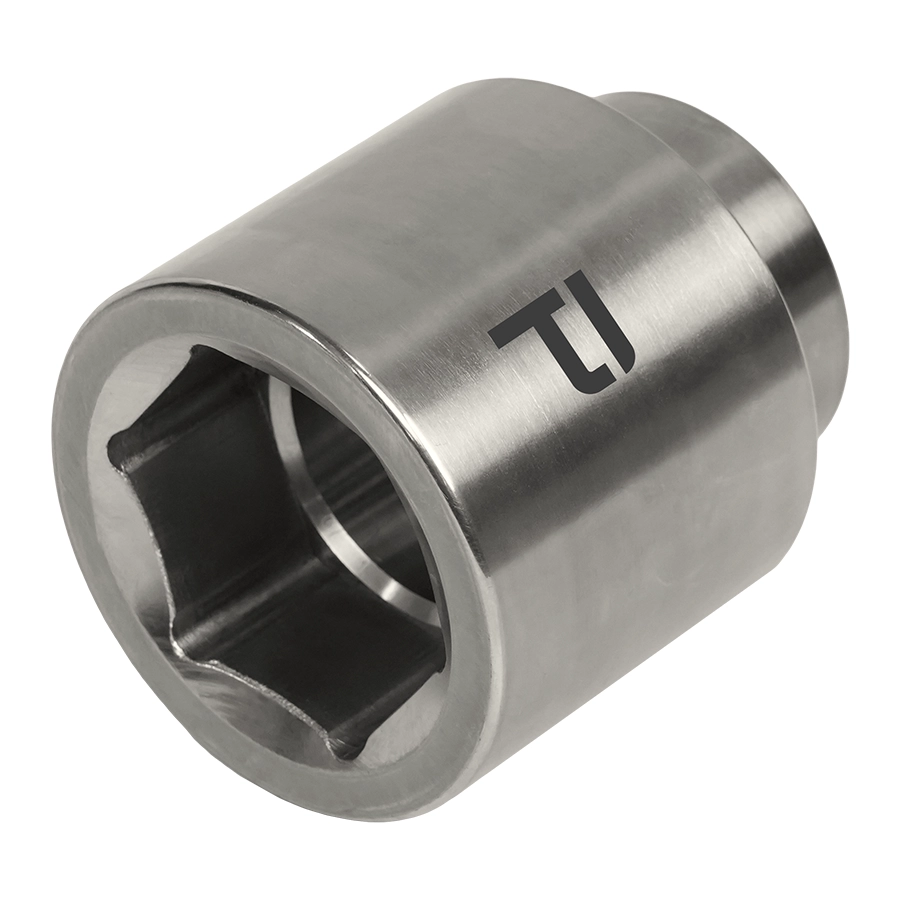

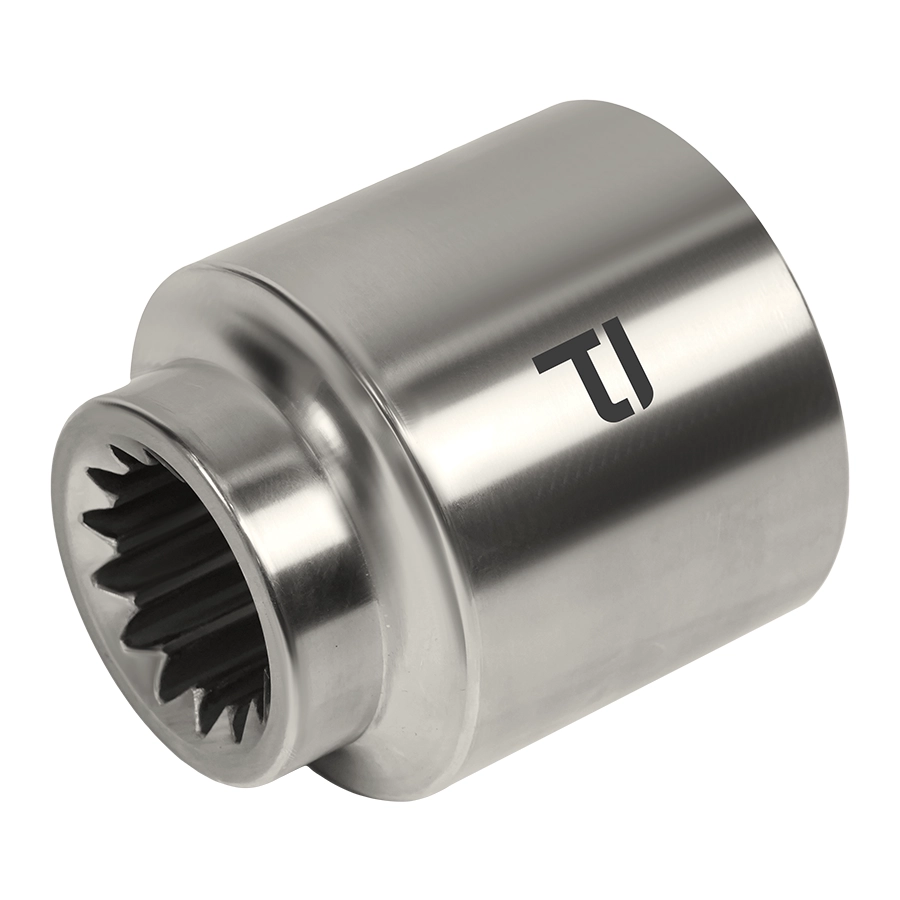

Impact Sockets #5 Spline Square Drive

All Impact Sockets are made from high strength alloy steel.
All Impact Sockets are heat treated for the best combination of strength and impact resistance.
The depth of the Hex openings is designed to accomodate the full standard fastener head.
All Impact Sockets have chamfered openings for ease in engagement with the drive tool and the fastener.
All Impact Sockets have a Ring-N-Pin arrangement for securing them to the drive.
Sockets are plated and black oxidized coated for increased protection from rusting.

Item Code	Size	Profile	Wall Thickness	D1	D2	T	C	OAL	Weight	Price
S-95M19	19	Hexagon	Standard	48	56	16	35	68	0.8	$32.00	+
S-95M20	20	Hexagon	Standard	48	56	16	35	68	0.8	$32.00	+
S-95M21	21	Hexagon	Standard	48	56	16	35	68	0.8	$32.00	+
S-95M22	22	Hexagon	Standard	48	56	16	35	68	0.8	$32.00	+
S-95M23	23	Hexagon	Standard	48	56	16	35	68	0.8	$32.00	+
S-95M24	24	Hexagon	Standard	48	56	16	35	68	1	$32.00	+
S-95M25	25	Hexagon	Standard	50	56	18	37	70	1	$32.00	+
S-95M26	26	Hexagon	Standard	50	56	18	37	70	1	$32.00	+
S-95M27	27	Hexagon	Standard	52	56	20	39	72	1	$32.00	+
S-95M28	28	Hexagon	Standard	52	56	20	39	72	1	$32.00	+
S-95M29	29	Hexagon	Standard	53	56	22	41	74	1	$32.00	+
S-95M30	30	Hexagon	Standard	53.5	56	22	41	74	1.1	$32.00	+
S-95M31	31	Hexagon	Standard	54	56	22	41	74	1.1	$32.00	+
S-95M32	32	Hexagon	Standard	54	56	22	41	74	1.1	$32.00	+
S-95M33	33	Hexagon	Standard	58	56	22	41	74	1.2	$32.00	+
S-95M34	34	Hexagon	Standard	58	56	22	41	74	1.2	$32.00	+
S-95M35	35	Hexagon	Standard	59.8	56	25	44	77	1.3	$32.00	+
S-95M36	36	Hexagon	Standard	64	56	25	44	77	1.3	$36.00	+
S-95M37	37	Hexagon	Standard	63	56	25	44	77	1.4	$36.00	+
S-95M38	38	Hexagon	Standard	63.5	56	25	44	77	1.4	$36.00	+
S-95M39	39	Hexagon	Standard	64	56	25	44	77	1.4	$36.00	+
S-95M40	40	Hexagon	Standard	64	56	25	44	77	1.4	$36.00	+
S-95M41	41	Hexagon	Standard	68	56	28	47	80	1.5	$36.00	+
S-95M42	42	Hexagon	Standard	68	56	28	47	80	1.6	$36.00	+
S-95M43	43	Hexagon	Standard	68	56	28	47	80	1.6	$40.00	+
S-95M44	44	Hexagon	Standard	73	56	28	49	82	1.6	$40.00	+
S-95M45	45	Hexagon	Standard	73	56	28	49	82	1.6	$40.00	+
S-95M46	46	Hexagon	Standard	73	56	28	49	82	1.7	$40.00	+
S-95M47	47	Hexagon	Standard	73	56	28	49	82	1.7	$40.00	+
S-95M48	48	Hexagon	Standard	77	56	28	49	82	1.7	$40.00	+

1 2 … 6
