In-situ machining — Split Frame Machines
Electric Series
Split Frame Machines
- POWERMASTER split frame machine perform precision pipe cutting, bevelling , facing and ID. boring operations over the range of 2” – 60” OD.
- These portable split frame machines are capable of working on a wide range of wall thickness.
- The construction comprising of a steel mobile ring gear resting on the solid bearing mounted on the light weight aluminum fixed ring, ensures extreme strength and durability.
- The rugged construction of machine and powerful drives provides the necessary rigidity and stability.
Delivery
High Quality
Material
Material
Standards
Transaction
Select & Add to Cart
Filters
Sort results
Reset
Apply
Item Code | Product Type | Tube OD | Power | Speed | Details | Price | |
|---|---|---|---|---|---|---|---|
SF-0206 (Electric) |
Pipe Cutting Machine |
2"- 6" |
1100 Watts, 230V |
37 |
Locking Range-50.08mm-152.4mm(2"-6") |
Original price was: $4008.00.$3340.00Current price is: $3340.00. |
|
SF-0612 (Electric) |
Pipe Cutting Machine |
6"-12" |
1100 Watts, 230V |
24 |
Locking Range-152.4mm-304.8mm(6"-12") |
Original price was: $5124.00.$4270.00Current price is: $4270.00. |
|

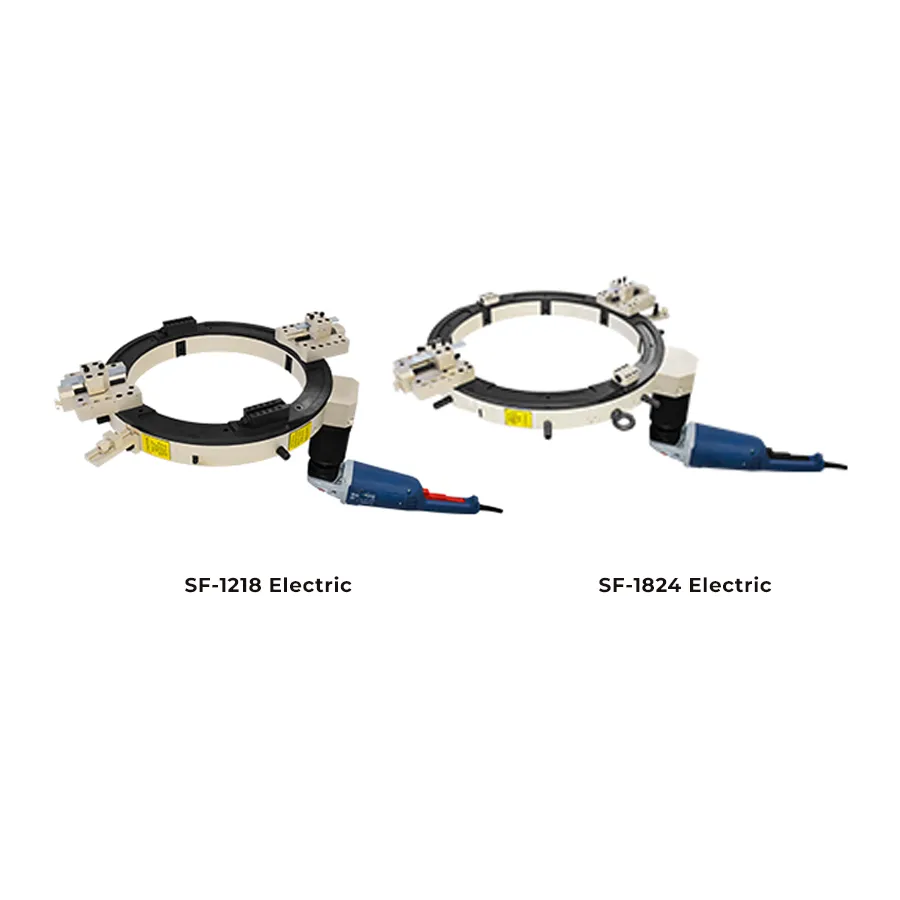

SF-1218 (Electric) |
Pipe Cutting Machine |
12"-18" |
2000 Watts, 230V |
15 |
Locking Range-304.8mm-457.2mm(12"-18") |
Original price was: $6420.00.$5350.00Current price is: $5350.00. |
|
SF-1824 (Electric) |
Pipe Cutting Machine |
18"-24" |
2600 Watts, 230V |
15 |
Locking Range-457.2mm-609.6mm(18"-24") |
Original price was: $7284.00.$6070.00Current price is: $6070.00. |
|

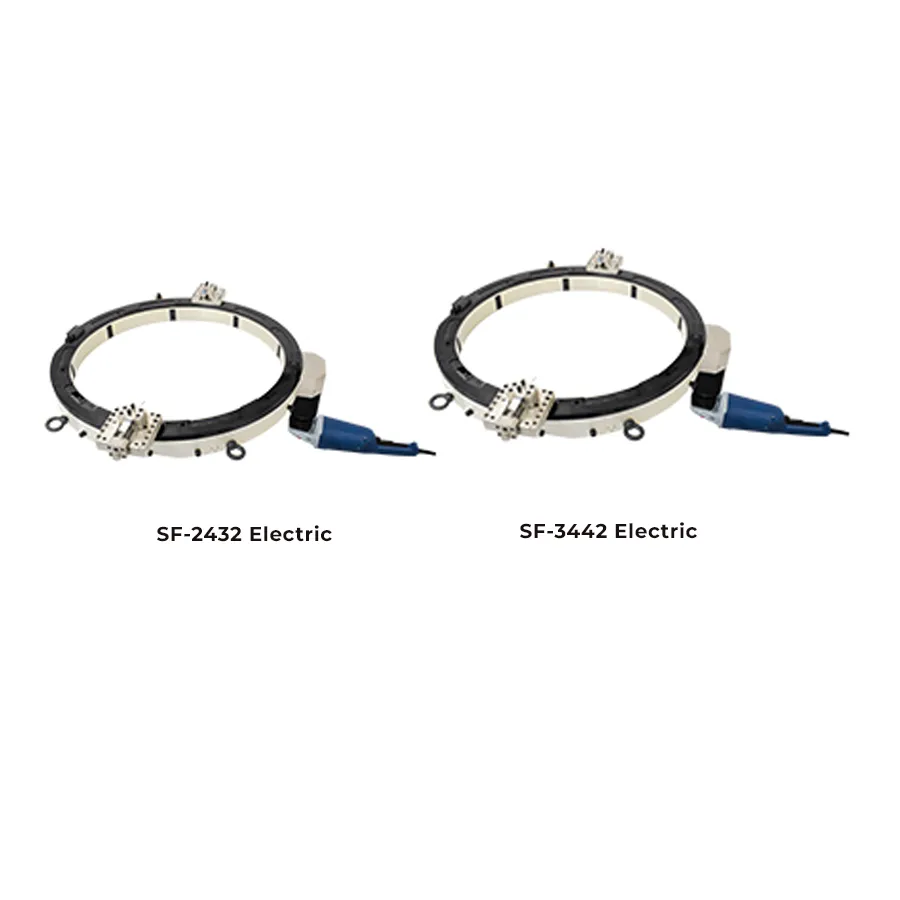

SF-2432 (Electric) |
Pipe Cutting Machine |
24"-32" |
2600 Watts, 230V |
13 |
Locking Range-609.6mm-812.8mm(24"-32") |
Original price was: $10800.00.$9000.00Current price is: $9000.00. |
|
SF-2836 (Electric) |
Pipe Cutting Machine |
28"-36" |
2600 Watts, 230V |
11 |
Locking Range-711.2mm-914.47mm(28"-36") |
Original price was: $11280.00.$9400.00Current price is: $9400.00. |
|
SF-3442 (Electric) |
Pipe Cutting Machine |
34"-42" |
2600 Watts, 230V |
10 |
Locking Range-863.6mm-1066.8mm(34"-42") |
Original price was: $13610.00.$11340.00Current price is: $11340.00. |
|
SF-4048 (Electric) |
Pipe Cutting Machine |
40"-48" |
2600 Watts, 230V |
7 |
Locking Range-1016.0mm-1219.2mm(40"-48") |
Original price was: $15450.00.$12870.00Current price is: $12870.00. |
|
SFE-0104 |
Cold Cutting Machine |
1" - 4" |
1.2 kW |
50 |
Locking Range-25.4mm-101.6mm(1"-4") |
Original price was: $3372.00.$3035.00Current price is: $3035.00. |
|
SFE-0208 |
Cold Cutting Machine |
2'- 8" |
1.2 kW |
30 |
Locking Range-25.4mm-101.6mm(2"-8") |
Original price was: $4245.00.$3821.00Current price is: $3821.00. |
|
SFE-0814 |
Cold Cutting Machine |
8"-14" |
1.2 kW |
25 |
Locking Range-25.4mm-101.6mm(8"-14") |
Original price was: $5241.00.$4717.00Current price is: $4717.00. |
|
SFE-1420 |
Cold Cutting Machine |
14" - 20" |
2.2 kW |
13 |
Locking Range- 355.6mm -508.0mm(14"- 20") |
Original price was: $6475.00.$5828.00Current price is: $5828.00. |
|
SFE-4860 |
Cold Cutting Machine |
48" - 60" |
2.4 kW |
7 |
Locking Range- 1219mm -1524mm(48” - 60”) |
Original price was: $27440.00.$24696.00Current price is: $24696.00. |
|
SFE-6072 |
Cold Cutting Machine |
60" - 72" |
2.4 kW |
4 |
Locking Range- 1524mm -1829mm(60” - 72”) |
Original price was: $32774.00.$29497.00Current price is: $29497.00. |
