In-situ machining — Split Frame Machines
Hydraulic Series
Split Frame Machines
- POWERMASTER split frame machine perform precision pipe cutting, bevelling , facing and ID. boring operations over the range of 2” – 60” OD.
- These portable split frame machines are capable of working on a wide range of wall thickness.
- The construction comprising of a steel mobile ring gear resting on the solid bearing mounted on the light weight aluminum fixed ring, ensures extreme strength and durability.
- The rugged construction of machine and powerful drives provides the necessary rigidity and stability.
Delivery
High Quality
Material
Material
Standards
Transaction
Select & Add to Cart
Filters
Sort results
Reset
Apply
Item Code | Product Type | Tube OD | Power | Speed | Details | Price | |
|---|---|---|---|---|---|---|---|
SF-0206 (Hydraulics) |
Pipe Cutting Machine |
2"- 6" |
7.5 HP, 415 V |
35 |
Locking Range-50.08mm-152.4mm(2"-6") |
Original price was: $6804.00.$5670.00Current price is: $5670.00. |
|

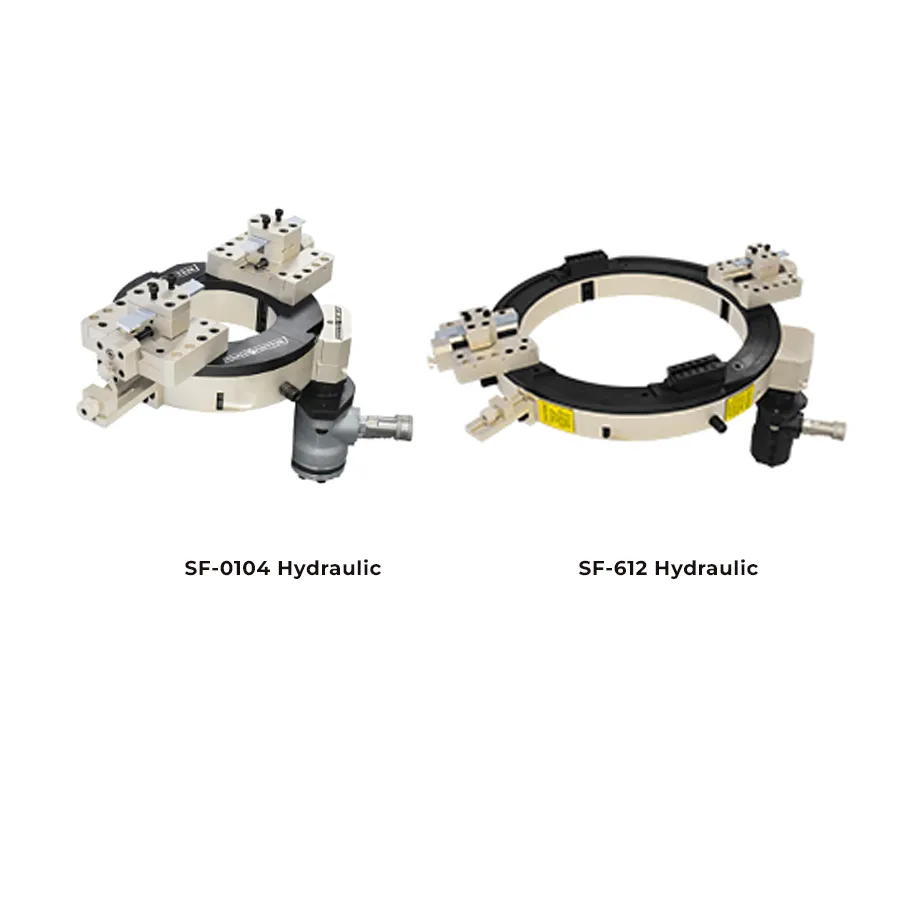

SF-0612 (Hydraulics) |
Pipe Cutting Machine |
6"-12" |
7.5 HP, 415 V |
24 |
Locking Range-152.4mm-304.8mm(6"-12") |
Original price was: $7920.00.$6600.00Current price is: $6600.00. |
|

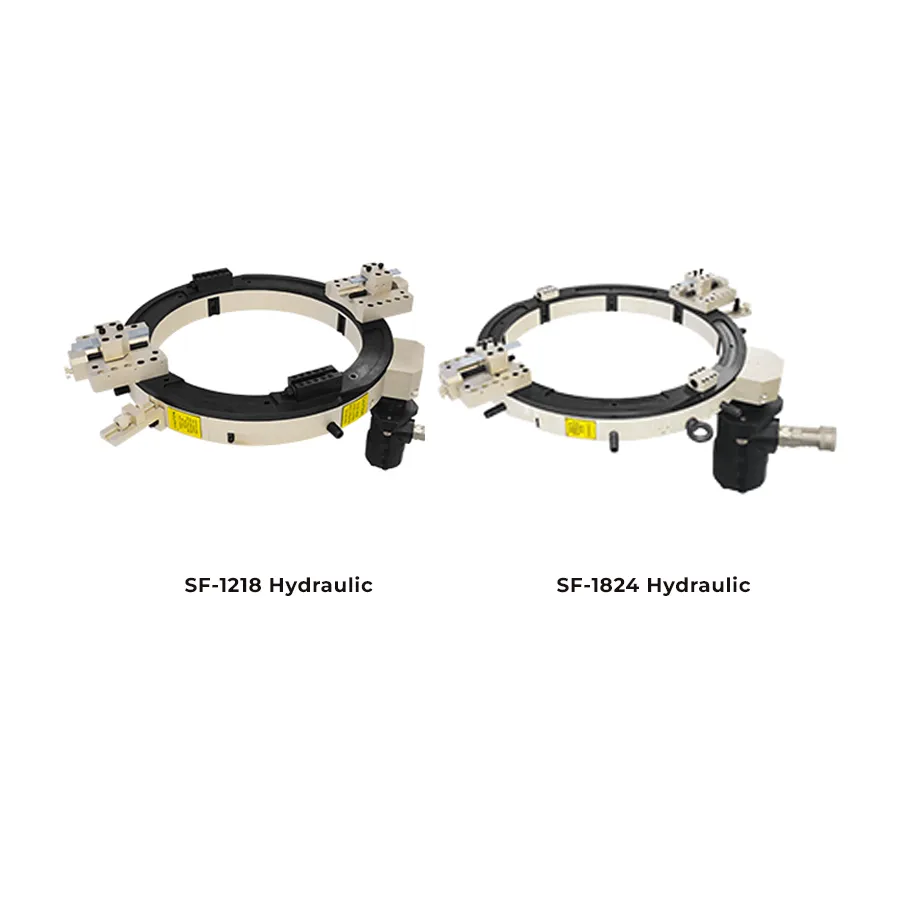

SF-1218 (Hydraulics) |
Pipe Cutting Machine |
12"-18" |
7.5 HP, 415 V |
20 |
Locking Range-304.8mm-457.2mm(12"-18") |
Original price was: $8808.00.$7340.00Current price is: $7340.00. |
|
SF-1824 (Hydraulics) |
Pipe Cutting Machine |
18"-24" |
7.5 HP, 415 V |
17 |
Locking Range-457.2mm-609.6mm(18"-24") |
Original price was: $9630.00.$8020.00Current price is: $8020.00. |
|

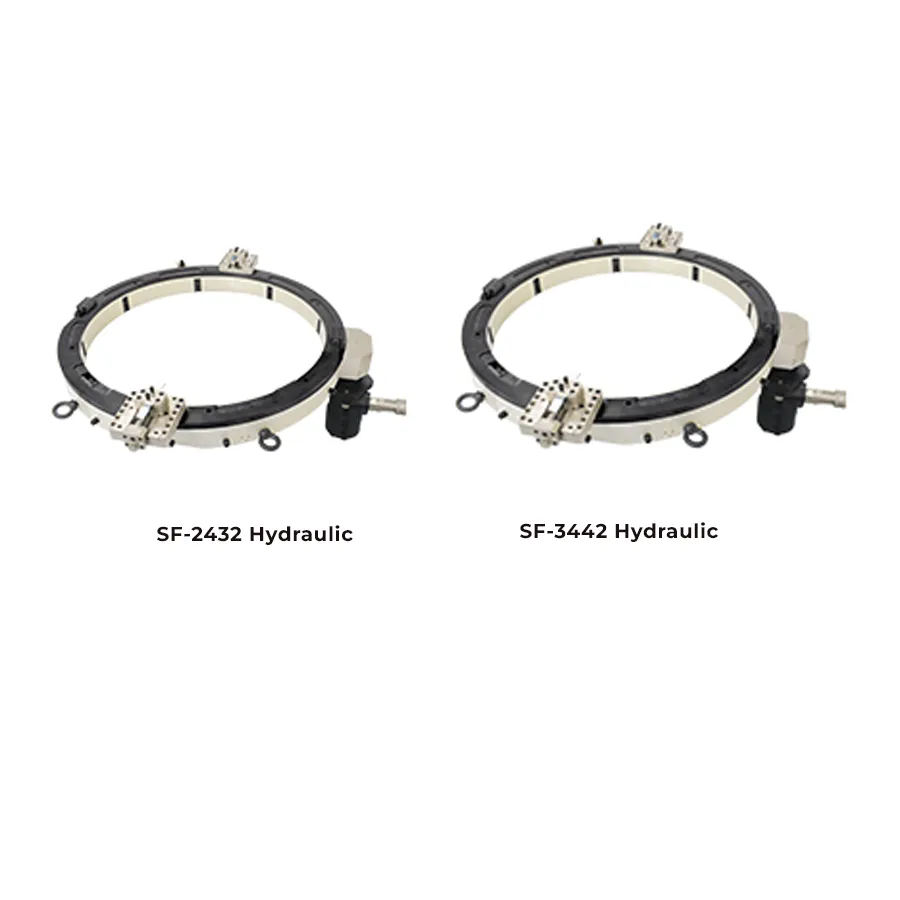

SF-2432 (Hydraulics) |
Pipe Cutting Machine |
24"-32" |
7.5 HP, 415 V |
12 |
Locking Range-609.6mm-812.8mm(24"-32") |
Original price was: $13300.00.$11080.00Current price is: $11080.00. |
|
SF-2836 (Hydraulics) |
Pipe Cutting Machine |
28"-36" |
7.5 HP, 415 V |
10 |
Locking Range-711.2mm-914.47mm(28"-36") |
Original price was: $13780.00.$11480.00Current price is: $11480.00. |
|
SF-3442 (Hydraulics) |
Pipe Cutting Machine |
34"-42" |
7.5 HP, 415 V |
9 |
Locking Range-863.6mm-1066.8mm(34"-42") |
Original price was: $13920.00.$11600.00Current price is: $11600.00. |
|
SF-4048 (Hydraulics) |
Pipe Cutting Machine |
40"-48" |
7.5 HP, 415 V |
7 |
Locking Range-1016.0mm-1219.2mm(40"-48") |
Original price was: $18000.00.$15000.00Current price is: $15000.00. |
|
SFH-0104 |
Cold Cutting Machine |
1" - 4" |
5 hp |
47 |
Locking Range-25.4mm-101.6mm(1"-4") |
Original price was: $5893.00.$5304.00Current price is: $5304.00. |
|
SFH-0208 |
Cold Cutting Machine |
2'- 8" |
5 hp |
29 |
Locking Range-25.4mm-101.6mm(2"-8") |
Original price was: $6766.00.$6090.00Current price is: $6090.00. |
|
SFH-0814 |
Cold Cutting Machine |
8"-14" |
5 hp |
24 |
Locking Range-25.4mm-101.6mm(8"-14") |
Original price was: $7762.00.$6986.00Current price is: $6986.00. |
|
SFH-1420 |
Cold Cutting Machine |
14" - 20" |
5 hp |
11 |
Locking Range- 355.6mm -508.0mm(14"- 20") |
Original price was: $8726.00.$7854.00Current price is: $7854.00. |
|
SFH-4860 |
Cold Cutting Machine |
48" - 60" |
5 hp |
6 |
Locking Range- 1219mm -1524mm(48” - 60”) |
Original price was: $29516.00.$26565.00Current price is: $26565.00. |
|
SFH-6072 |
Cold Cutting Machine |
60" - 72" |
5 hp |
4 |
Locking Range- 1524mm -1829mm(60” - 72”) |
Original price was: $34880.00.$31392.00Current price is: $31392.00. |
