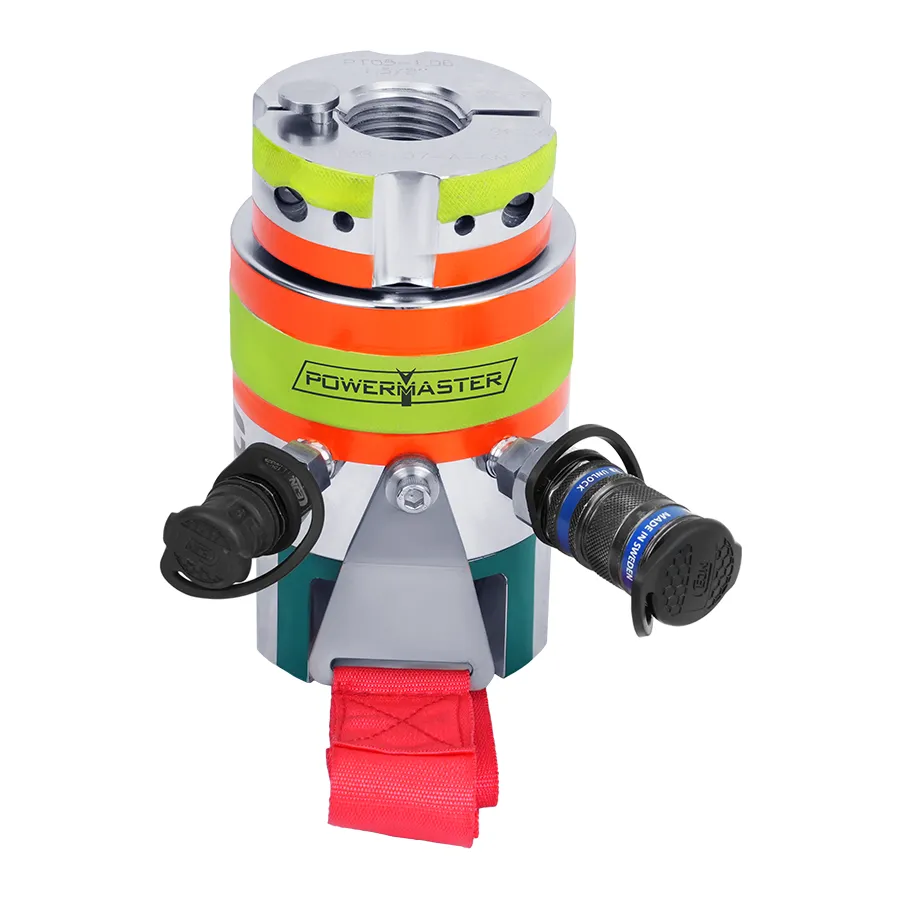

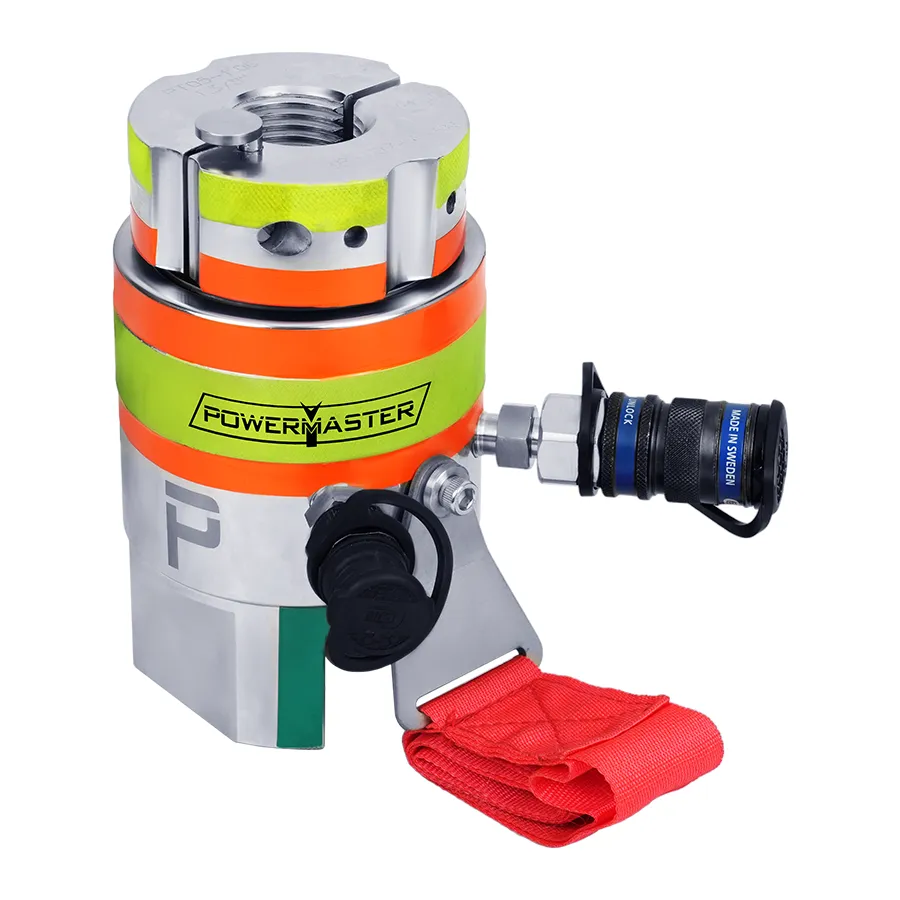

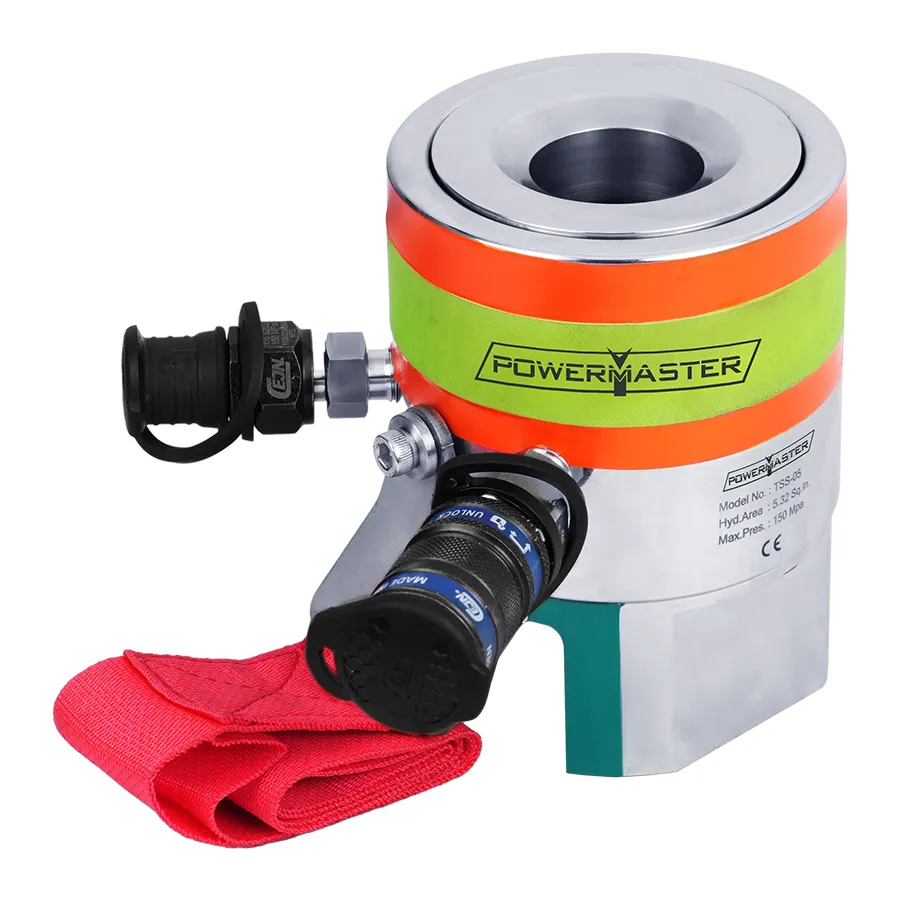

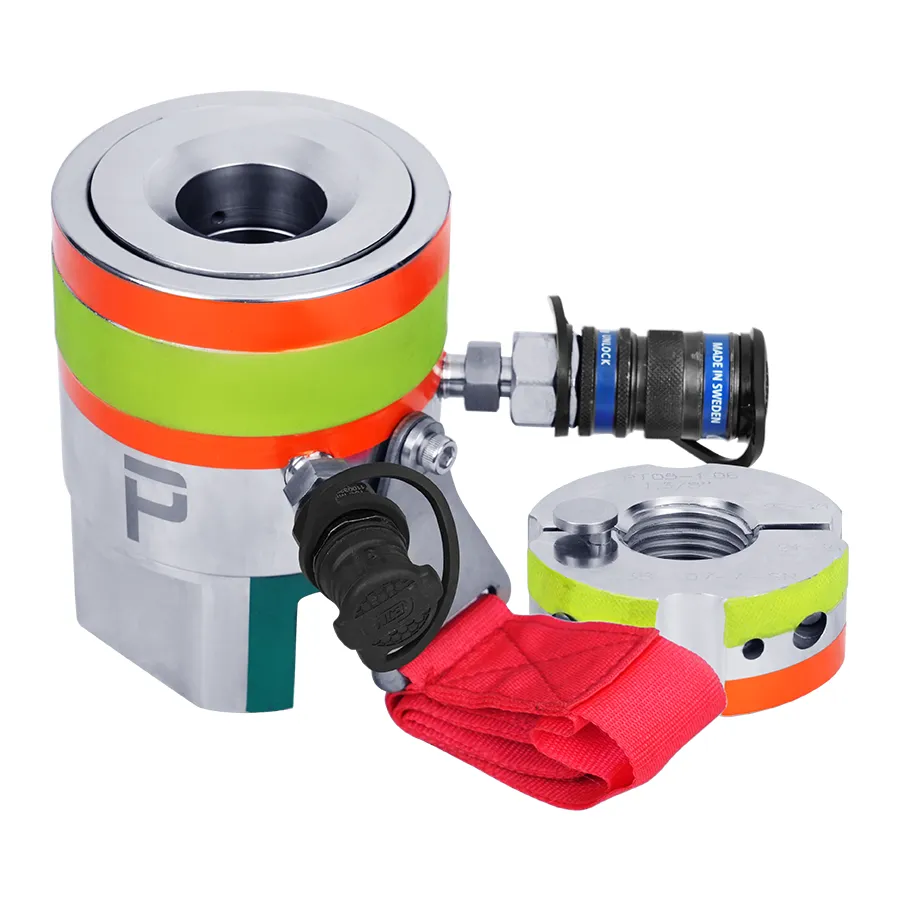

TSS-Series, Sub Sea Bolt Tensioners
- TSS-Series Bolt Tensioners are specially for sub sea applications.
- It’s design makes it very easy to handle and use by divers under the harsh sea conditions.
- High Strength Stainless Steel Construction
- Higher Load generation
- Long Stroke And Stroke Indication
- Safe Design in event of Piston ‘Over Stroke’s.
- Non Slip Tool Surface
Filters
Sort results
Reset
Apply
Item Code | Part | For Load Cell | Bolt Size(mm) | Bolt Size (inch) | Max Load(kN) | Hyd Area (inch) | OD(mm) | C(mm) | W(mm) | A(mm) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TSS-03 |
Load cell |
'- |
M20 |
3/4" - 7/8" |
188 |
1.95 |
'- |
'- |
'- |
'- |
$779.00 |
|
PT03-0.12 |

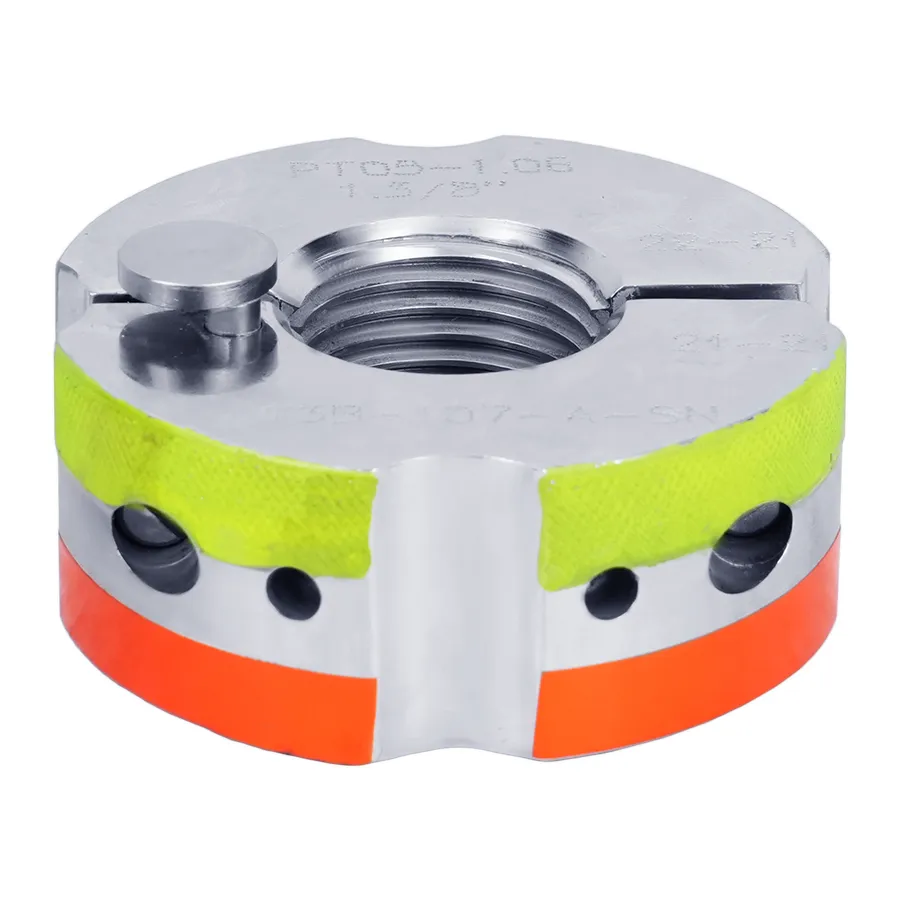

Puller Nut |
TSS-03 |
'- |
3/4" |
188 |
1.95 |
65 |
30 |
46 |
122 |
$285.00 |
|
PT03-M20 |
Puller Nut |
TSS-03 |
M20 |
'- |
188 |
1.95 |
65 |
30 |
46 |
122 |
$285.00 |
|
PT03-0.14 |
Puller Nut |
TSS-03 |
'- |
7/8" |
188 |
1.95 |
65 |
30 |
46 |
122 |
$285.00 |
|
TSS-04 |
Load cell |
'- |
M27 - M30 |
1" - 1.1/8" |
309 |
3.19 |
'- |
'- |
'- |
'- |
$827.00 |
|
PT04-M24 |
Puller Nut |
TSS-04 |
M24 |
'- |
309 |
3.19 |
86 |
30 |
64 |
153 |
$304.00 |
|
PT04-1.00 |
Puller Nut |
TSS-04 |
'- |
1" |
309 |
3.19 |
86 |
30 |
64 |
153 |
$304.00 |
|
PT04-M27 |
Puller Nut |
TSS-04 |
M27 |
'- |
309 |
3.19 |
86 |
30 |
64 |
153 |
$304.00 |
|
PT04-1.02 |
Puller Nut |
TSS-04 |
'- |
1.1/8" |
309 |
3.19 |
86 |
30 |
64 |
153 |
$304.00 |
|
PT04-M30 |
Puller Nut |
TSS-04 |
M30 |
'- |
309 |
3.19 |
86 |
30 |
64 |
153 |
$304.00 |
|
TSS-05 |
Load cell |
'- |
M33 - M36 |
1.1/4" - 1.3/8" |
482 |
4.98 |
'- |
'- |
'- |
'- |
$874.00 |
|
PT05-1.04 |
Puller Nut |
TSS-05 |
'- |
1.1/4" |
482 |
4.98 |
98 |
30 |
78 |
171 |
$352.00 |
|
PT05-M33 |
Puller Nut |
TSS-05 |
M33 |
'- |
482 |
4.98 |
98 |
30 |
78 |
171 |
$352.00 |
|
PT05-1.06 |
Puller Nut |
TSS-05 |
'- |
1.3/8" |
482 |
4.98 |
98 |
30 |
78 |
174 |
$352.00 |
|
PT05-M36 |
Puller Nut |
TSS-05 |
M36 |
'- |
482 |
4.98 |
98 |
30 |
78 |
174 |
$352.00 |
|
TSS-07 |
Load cell |
'- |
M39 - M42 |
1.1/2" - 1.5/8" |
706 |
7.3 |
'- |
'- |
'- |
'- |
$931.00 |
|
PT07-1.08 |
Puller Nut |
TSS-07 |
'- |
1.1/2" |
706 |
7.3 |
117 |
30 |
93 |
186 |
$371.00 |
|
PT07-M39 |
Puller Nut |
TSS-07 |
M39 |
'- |
706 |
7.3 |
117 |
30 |
93 |
186 |
$371.00 |
|
PT07-1.10 |
Puller Nut |
TSS-07 |
'- |
1.5/8" |
706 |
7.3 |
117 |
30 |
93 |
189 |
$371.00 |
|
PT07-M42 |
Puller Nut |
TSS-07 |
M42 |
'- |
706 |
7.3 |
117 |
30 |
93 |
189 |
$371.00 |
|
TSS-11 |
Load cell |
'- |
M45 - M52 |
1.3/4" - 2" |
1060 |
10.95 |
'- |
'- |
'- |
'- |
$1036.00 |
|
PT11-1.12 |
Puller Nut |
TSS-11 |
'- |
1.3/4" |
1060 |
10.95 |
138 |
60 |
113 |
197 |
$466.00 |
|
PT11-M45 |
Puller Nut |
TSS-11 |
M45 |
'- |
1060 |
10.95 |
138 |
60 |
113 |
197 |
$466.00 |
|
PT11-1.14 |
Puller Nut |
TSS-11 |
'- |
1.7/8 " |
1060 |
10.95 |
138 |
60 |
113 |
200 |
$466.00 |
|
PT11-M48 |
Puller Nut |
TSS-11 |
M48 |
'- |
1060 |
10.95 |
138 |
60 |
113 |
203 |
$466.00 |
|
PT11-2.00 |
Puller Nut |
TSS-11 |
'- |
2" |
1060 |
10.95 |
138 |
60 |
113 |
206 |
$466.00 |
|
PT11-M52 |
Puller Nut |
TSS-11 |
M52 |
'- |
1060 |
10.95 |
138 |
60 |
113 |
209 |
$466.00 |
|
TSS-15 |
Load cell |
'- |
M56 - M64 |
2.1/4" - 2.1/2" |
1554 |
16.06 |
'- |
'- |
'- |
'- |
$1188.00 |
|
PT15-M56 |
Puller Nut |
TSS-15 |
M56 |
'- |
1554 |
16.06 |
164 |
60 |
141 |
229 |
$513.00 |
|
PT15-2.04 |
Puller Nut |
TSS-15 |
'- |
2.1/4" |
1554 |
16.06 |
164 |
60 |
141 |
229 |
$513.00 |
