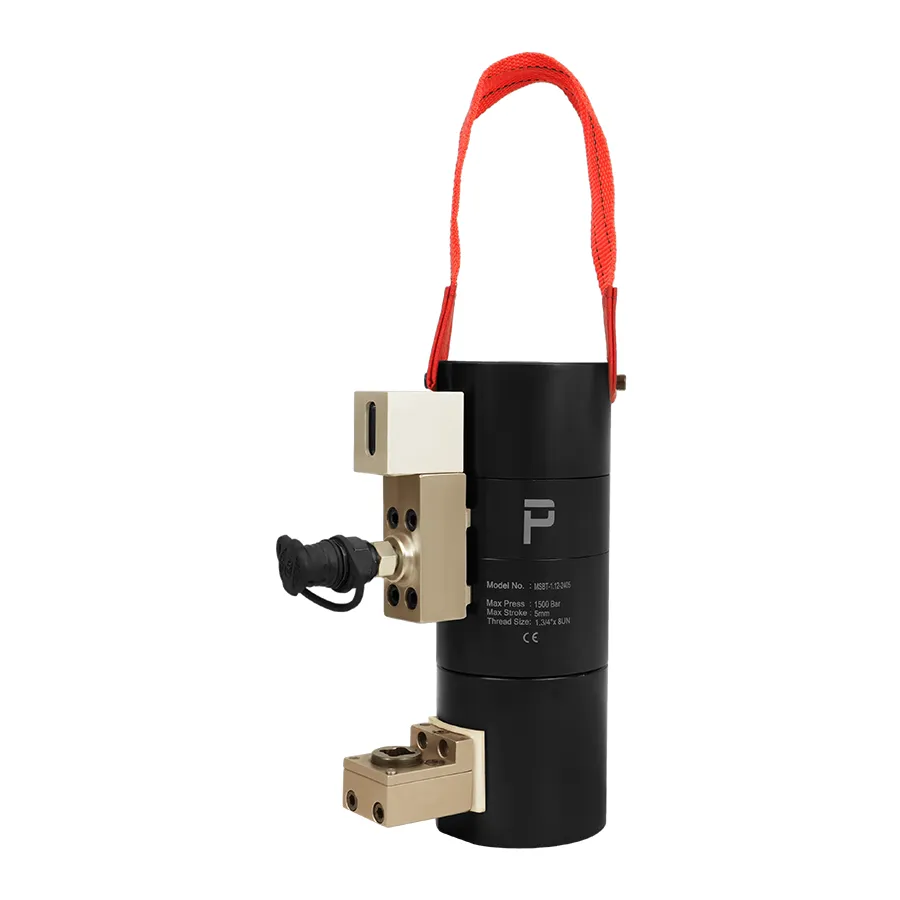

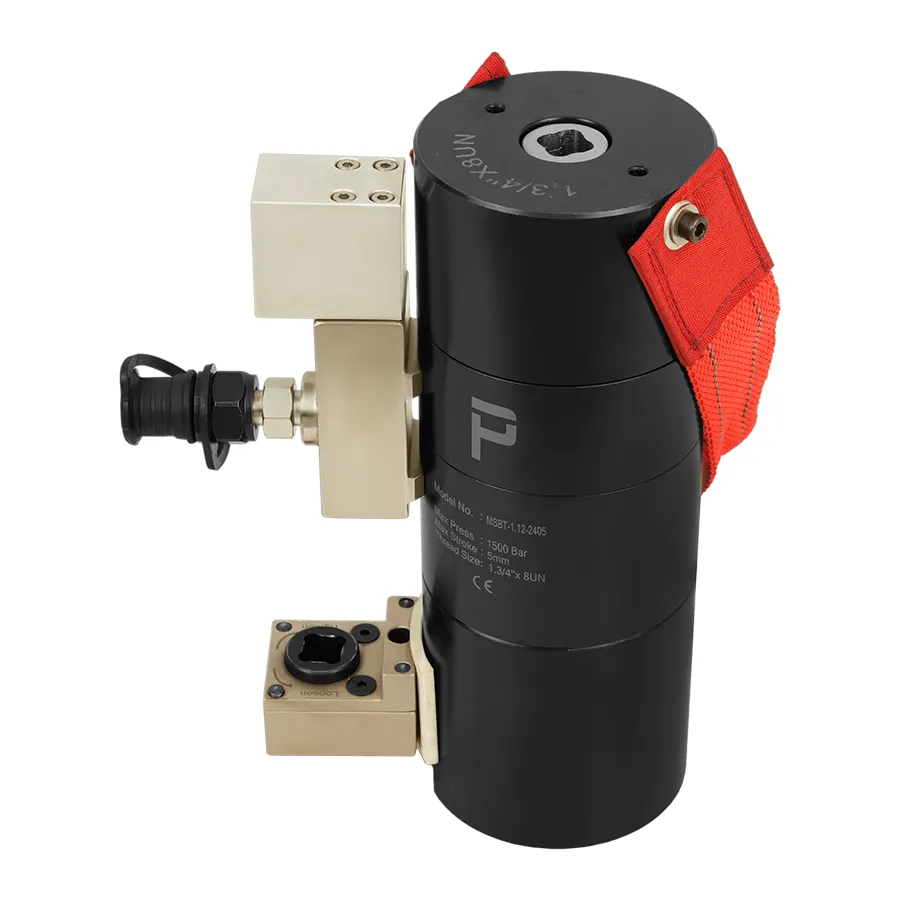

Multi-Stage Bolt Tensioners
- These tensioners are used for low clearance high load applications on application like Gearboxes, Gas-Turbines and Windmill applications etc.
- These tensioners too have 1500 bar max operating pressure. These are available for sizes from 1” to 3” (24mm to 72mm for metric sizes) for different thread configurations. Optional Auto Spring Return Feature makes the operation very fast and easy.

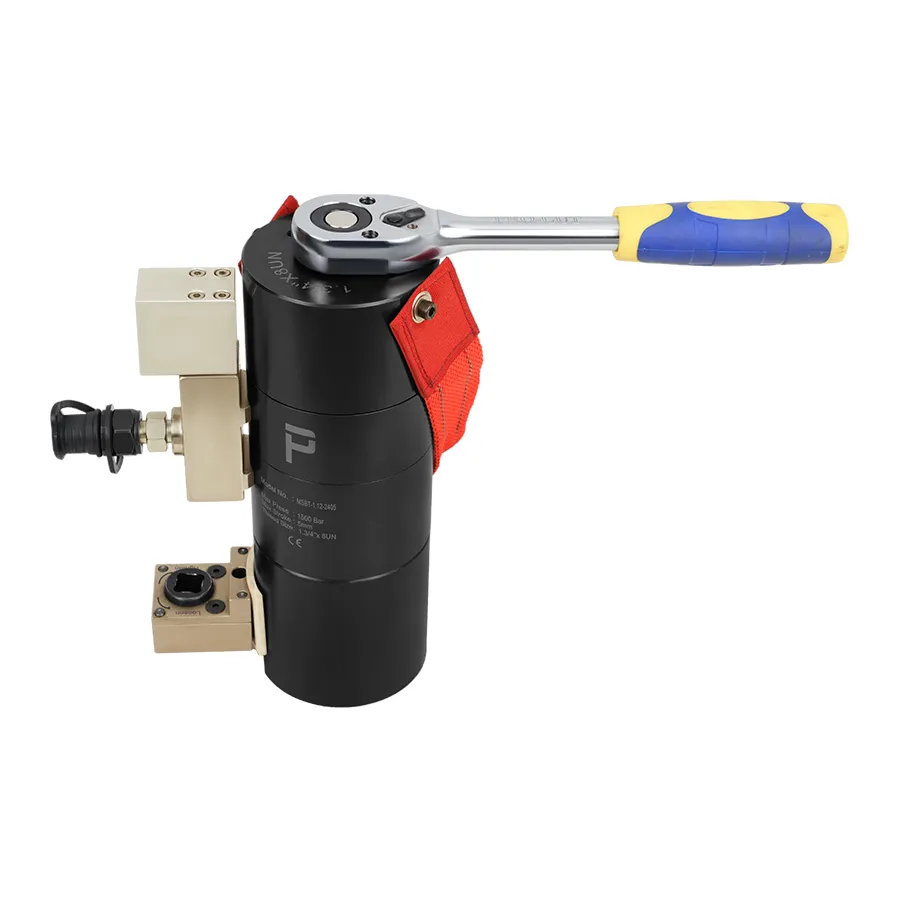

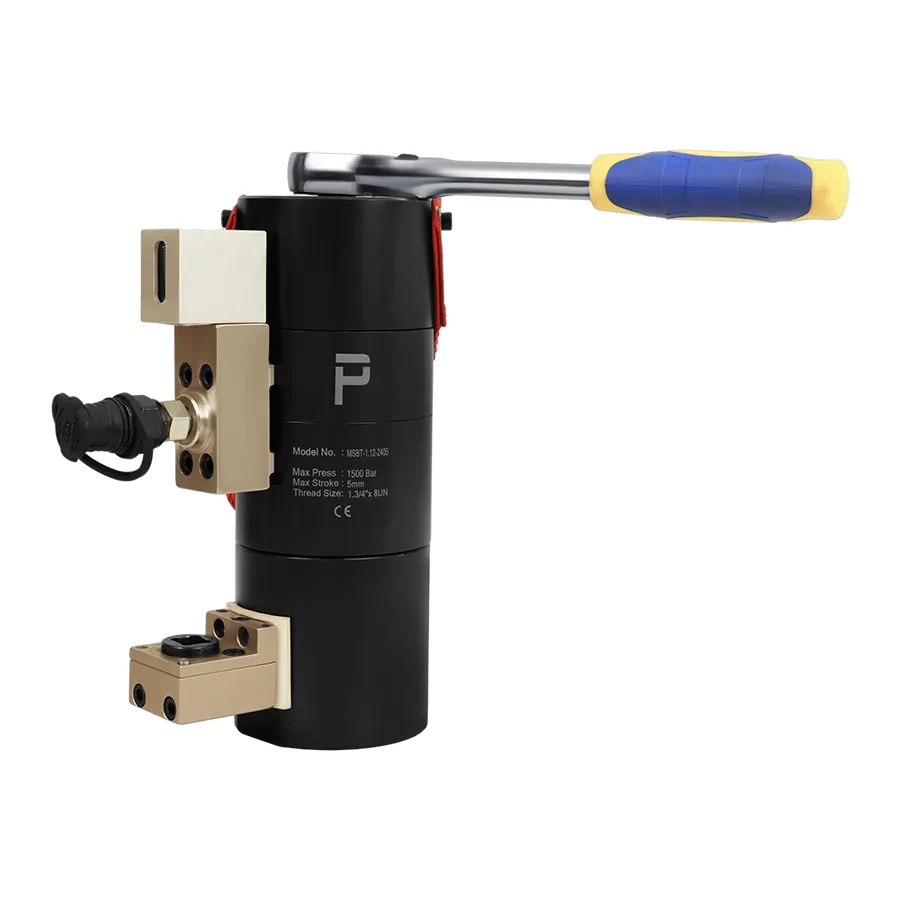

- Standard tools have geared Nut Driver to move the nut faster and with ease using standard 1/2” Square Drive Wrench.
- All parts of these tensioners are made of Special High Strength Alloy Steel for better design and safety requirement.
Size
Filters
Sort results
Reset
Apply
Item Code | Size | Bolt Size | OD (mm) | Max Load (kN) | OAL (mm) | Width A | Width B | Width C | Price | |
---|---|---|---|---|---|---|---|---|---|---|
MSBT-30 |
Metric |
M30 |
73 |
452 |
203 |
25 |
65 |
36.5 |
||
MSBT-33 |
Metric |
M33 |
78 |
516 |
229 |
32 |
73 |
39 |
||
MSBT-36 |
Metric |
M36 |
85 |
664 |
230 |
35 |
79 |
42.5 |
||
MSBT-39 |
Metric |
M39 |
94 |
862 |
252.5 |
37.5 |
81.5 |
48.5 |
||
MSBT-42 |
Metric |
M42 |
98 |
930 |
282 |
42 |
107 |
48.5 |
||
MSBT-45 |
Metric |
M45 |
108 |
1062 |
288 |
45 |
110 |
54 |
||
MSBT-48 |
Metric |
M48 |
114 |
1235 |
310 |
45 |
101 |
57 |
||
MSBT-1.125 |
Imperial |
1.1/8'' |
73 |
452 |
203 |
25 |
65 |
36.5 |
||
MSBT-1.250 |
Imperial |
1.1/4'' |
78 |
516 |
229 |
32 |
73 |
39 |
||
MSBT-1.375 |
Imperial |
1.3/8'' |
85 |
664 |
230 |
35 |
79 |
42.5 |
||
MSBT-1.500 |
Imperial |
1.1/2'' |
94 |
862 |
252.5 |
37.5 |
81.5 |
48.5 |
||
MSBT-1.625 |
Imperial |
1.5/8'' |
98 |
930 |
282 |
42 |
107 |
48.5 |
||
MSBT-1.750 |
Imperial |
1.3/4'' |
108 |
1062 |
288 |
45 |
110 |
54 |
||
MSBT-1.875 |
Imperial |
1.7/8'' |
114 |
1235 |
310 |
45 |
101 |
57 |
