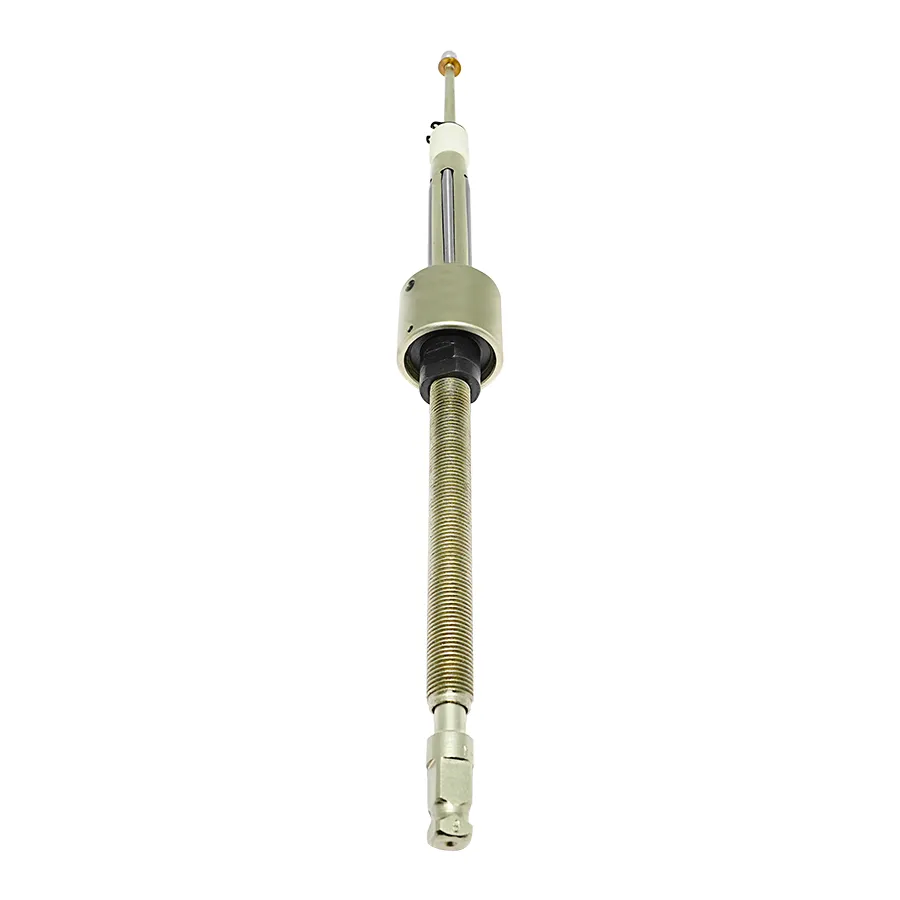

Condenser Tube Expanders 1200-5 Series
- Use : Highly recommended for use on thin walled tubes (19 thru 22 gauge walls) of Stainless Steel, Titanium, Incoloy and other exotic materials in thick tube sheets.
- Advantages : Gives a more concentric and even expansion when expanding thin walled tubes vs. a conventional 3 roll tube expander and reduces tube spring back effect.
Filters
Sort results
Reset
Apply
Expander | Min ID Tool Enters (mm) Min ID Tool Enters (inch) | Max Expansion Tool (mm)Max Expansion Tool (inch) | Reach (mm)Reach (inch) | Thickness (mm)Thickness (inch) | Thickness (bwg) | Drive inch | Price | |
|---|---|---|---|---|---|---|---|---|
1223-5 |
14.5 0.571 |
16.2 0.638 |
144.98 5 11/16 |
2.11 0.083 |
14 |
3/8" |
$140.25 |
|
1224-5 |
14.5 0.571 |
16.2 0.638 |
160.02 6 5/16 |
2.11 0.083 |
14 |
3/8" |
$155.55 |
|
1225-5 |
14.9 0.587 |
16.7 0.657 |
144.98 5 11/16 |
1.83 0.072 |
15 |
3/8" |
$140.25 |
|
1226-5 |
14.9 0.587 |
16.7 0.657 |
160.02 6 5/16 |
1.83 0.072 |
15 |
3/8" |
$155.55 |
|
1227-5 |
15.3 0.602 |
17.4 0.685 |
144.98 5 11/16 |
1.65 0.065 |
16 |
3/8" |
$140.25 |
|
1229-5 |
15.7 0.618 |
17.8 0.701 |
144.98 5 11/16 |
1.47-1.24 0.058-0.049 |
17-18 |
3/8" |
$140.25 |
|
1230-5 |
15.7 0.618 |
17.8 0.701 |
160.02 6 5/16 |
1.47-1.24 0.058-0.049 |
17-18 |
3/8" |
$155.55 |
|
1231-5 |
16.3 0.642 |
18.5 0.728 |
144.98 5 11/16 |
1.06-0.71 0.042-0.028 |
19-22 |
3/8" |
$153.85 |
|
1232-5 |
16.3 0.642 |
18.5 0.728 |
160.02 6 5/16 |
1.06-0.71 0.042-0.028 |
19-22 |
3/8" |
$161.50 |
|
1249-5 |
20.5 0.807 |
23 0.906 |
144.98 5 11/16 |
2.11 0.083 |
14 |
3/8" |
$153.65 |
|
1250-5 |
20.5 0.807 |
23 0.906 |
160.02 6 5/16 |
2.11 0.083 |
14 |
3/8" |
$161.50 |
|
1251-5 |
21.2 0.835 |
23.7 0.933 |
144.98 5 11/16 |
1.82-1.65 0.072-0.065 |
15-16 |
3/8" |
$153.85 |
|
1252-5 |
21.2 0.835 |
23.7 0.933 |
160.02 6 5/16 |
1.82-1.65 0.072-0.065 |
15-16 |
3/8" |
$161.50 |
|
1255-5 |
21.9 0.862 |
24.4 0.961 |
144.98 5 11/16 |
1.47-0.89 0.058-0.035 |
17-20 |
3/8" |
$153.85 |
|
1256-5 |
21.9 0.862 |
24.4 0.961 |
160.02 6 5/16 |
1.47-0.89 0.058-0.035 |
17-20 |
3/8" |
$161.50 |
|
1257-5 |
22.4 0.882 |
24.9 0.98 |
144.98 5 11/16 |
0.81-0.71 0.032-0.028 |
21-22 |
3/8" |
$197.20 |
|
1257-5 |
22.4 0.882 |
24.9 0.98 |
144.98 5 11/16 |
2.77 0.109 |
12 |
3/8" |
$197.20 |
|
1258-5 |
22.4 0.882 |
24.9 0.98 |
160.02 6 5/16 |
0.81-0.71 0.032-0.028 |
21-22 |
3/8" |
$197.20 |
|
1258-5 |
22.4 0.882 |
24.9 0.98 |
160.02 6 5/16 |
2.77 0.109 |
12 |
3/8" |
$197.20 |
|
1263-5 |
24.4 0.961 |
27.2 1.071 |
144.98 5 11/16 |
1.82-1.65 0.072-0.065 |
15-16 |
1/2" |
$197.20 |
|
1299-5 |
33.8 1.331 |
37.3 1.469 |
144.98 5 11/16 |
1.47-0.89 0.058-0.035 |
17-20 |
1/2" |
$197.20 |
|
1300-5 |
33.8 1.331 |
37.3 1.469 |
160.02 6 5/16 |
1.47-0.89 0.058-0.035 |
17-20 |
1/2" |
$197.20 |
Filters
Sort results
Reset
Apply
Item Code | Spare Part | Expander | Price | |
|---|---|---|---|---|
R-6-5 |
Roller |
1223-5 |
$3.49 |
|
M-1224-5 |
Mandrel |
1223-5 |
$32.30 |
|
R-6-A-5 |
Roller |
1224-5 |
$4.25 |
|
M-1224-5 |
Mandrel |
1224-5 |
$32.30 |
|
R-7-5 |
Roller |
1225-5 |
$3.49 |
|
M-1226-5 |
Mandrel |
1225-5 |
$32.30 |
|
R-7-A-5 |
Roller |
1226-5 |
$4.25 |
|
M-1226-5 |
Mandrel |
1226-5 |
$32.30 |
|
R-7-5 |
Roller |
1227-5 |
$3.49 |
|
M-63 |
Mandrel |
1227-5 |
$32.30 |
|
R-7-A-5 |
Roller |
1228-5 |
$4.25 |
|
M-63 |
Mandrel |
1228-5 |
$32.30 |
|
R-7-5 |
Roller |
1229-5 |
$3.49 |
|
M-1230-5 |
Mandrel |
1229-5 |
$32.30 |
|
R-7-A-5 |
Roller |
1230-5 |
$4.25 |
|
M-1230-5 |
Mandrel |
1230-5 |
$32.30 |
|
R-9-5 |
Roller |
1231-5 |
$3.66 |
|
M-63 |
Mandrel |
1231-5 |
$37.40 |
|
R-9-A-5 |
Roller |
1232-5 |
$4.25 |
|
M-63 |
Mandrel |
1232-5 |
$37.40 |
|
R-12-5 |
Roller |
1249-5 |
$3.66 |
|
M-1250-5 |
Mandrel |
1249-5 |
$37.40 |
|
R-12-A-5 |
Roller |
1250-5 |
$4.25 |
|
M-1250-5 |
Mandrel |
1250-5 |
$37.40 |
|
R-13-5 |
Roller |
1251-5 |
$3.66 |
|
M-1250-5 |
Mandrel |
1251-5 |
$37.40 |
|
R-13-A-5 |
Roller |
1252-5 |
$4.25 |
|
M-1250-5 |
Mandrel |
1252-5 |
$374.00 |
|
R-13-5 |
Roller |
1255-5 |
$4.25 |
|
M-1250-5 |
Mandrel |
1255-5 |
$37.40 |
