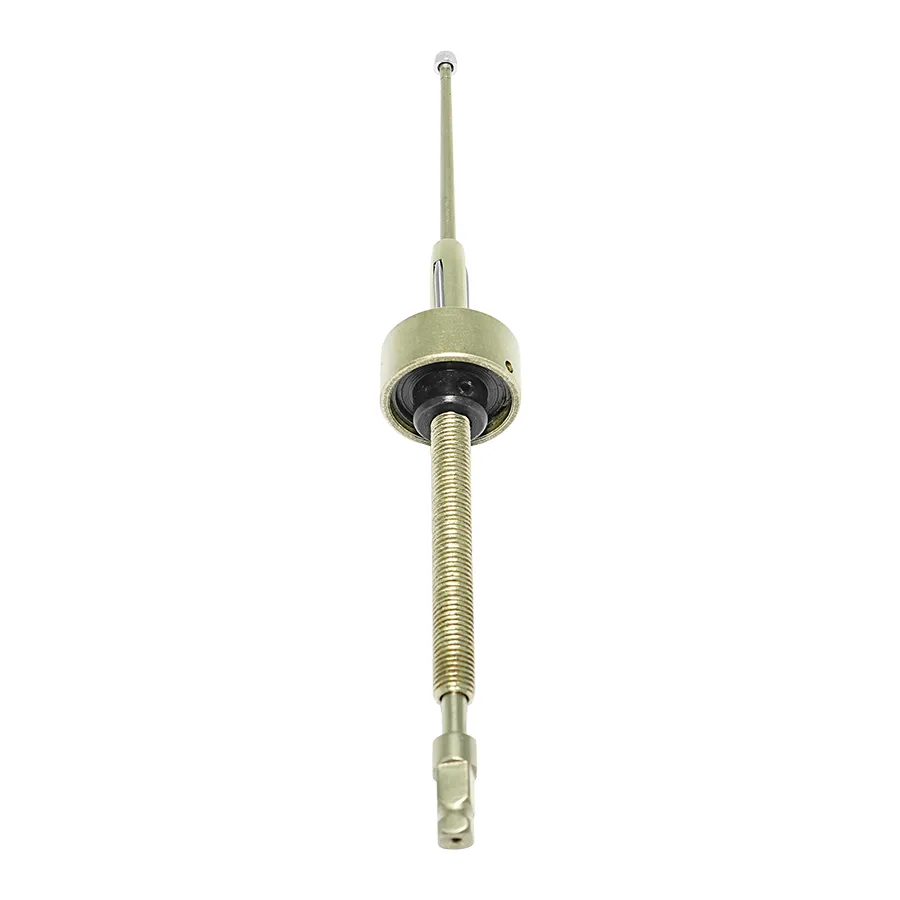

Condenser Tube Expanders 1300 Series

Use : Oil Coolers, Radiators and other apparatus with small diameter tubes and thick tube sheets.

Select Spare Part Table

Unit

mm inch

Expander	Min ID Tool Enters (mm)Min ID Tool Enters (inch)	Max Expansion Tool (mm)Max Expansion Tool (inch)	Reach (mm)Reach (inch)	Thickness (mm)Thickness (inch)	Thickness (bwg)	Drive inch	Price
1301	6.9 0.272	7.8 0.307	76.2 3	1.24 0.049	18	1/4"	$110.00	+
1302	6.9 0.272	7.8 0.307	88.9 3 1/2	1.24 0.049	18	1/4"	$110.00	+
1303	7.2 0.283	8.1 0.319	76.2 3	1.07 0.042	19	1/4"	$110.00	+
1304	7.2 0.283	8.1 0.319	88.9 3 1/2	1.07 0.042	19	1/4"	$110.00	+
1305	7.6 0.299	8.4 0.331	76.2 3	0.89 0.035	20	1/4"	$110.00	+
1306	7.6 0.299	8.4 0.331	88.9 3 1/2	0.89 0.035	20	1/4"	$110.00	+
1307	7.7 0.303	8.6 0.339	76.2 3	0.81 0.032	21	1/4"	$110.00	+
1308	7.7 0.303	8.6 0.339	88.9 3 1/2	0.81 0.032	21	1/4"	$110.00	+
1309	7.9 0.311	8.8 0.346	76.2 3	0.71 0.028	22	1/4"	$110.00	+
1310	7.9 0.311	8.8 0.346	88.9 3 1/2	0.71 0.028	22	1/4"	$110.00	+
1311	8.1 0.319	9 0.354	76.2 3	0.63-0.55 0.025-0.022	23-24	1/4"	$110.00	+
1312	8.1 0.319	9 0.354	88.9 3 1/2	0.63-0.55 0.025-0.022	23-24	1/4"	$110.00	+
1315	5.8 0.228	6.7 0.264	76.2 3	1.83 0.072	15	1/4"	$110.00	+
1316	5.8 0.228	6.7 0.264	88.9 3 1/2	1.83 0.072	15	1/4"	$110.00	+
1317	6.4 0.252	7.3 0.287	76.2 3	1.47 0.058	17	1/4"	$110.00	+
1318	6.4 0.252	7.3 0.287	88.9 3 1/2	1.47 0.058	17	1/4"	$110.00	+
1319	6.1 0.24	6.9 0.272	76.2 3	1.65 0.065	16	1/4"	$110.00	+
1319L	6.1 0.24	6.9 0.272	88.9 3 1/2	1.65 0.065	16	1/4"	$110.00	+

Item Code	Spare Part	Expander	Price
R-903	Roller	1301	$109.00	+
M-81	Mandrel	1301	$37.00	+
R-904	Roller	1302	$109.00	+
M-82	Mandrel	1302	$37.00	+
R-903	Roller	1303	$109.00	+
M-82	Mandrel	1303	$37.00	+
R-904	Roller	1304	$109.00	+
M-83	Mandrel	1304	$37.00	+
R-907	Roller	1305	$109.00	+
M-83	Mandrel	1305	$37.00	+
R-908	Roller	1306	$109.00	+
M-84	Mandrel	1306	$37.00	+
R-907	Roller	1307	$109.00	+
M-84	Mandrel	1307	$37.00	+
R-908	Roller	1308	$109.00	+
M-84	Mandrel	1308	$37.00	+
R-909	Roller	1309	$109.00	+
M-84	Mandrel	1309	$37.00	+
R-910	Roller	1310	$109.00	+
M-84	Mandrel	1310	$37.00	+
R-911	Roller	1311	$109.00	+
M-84	Mandrel	1311	$37.00	+
R-912	Roller	1312	$109.00	+
M-86	Mandrel	1312	$37.00	+
R-1315	Roller	1315	$109.00	+
M-86	Mandrel	1315	$37.00	+
R-1316	Roller	1316	$109.00	+
M-88	Mandrel	1316	$37.00	+
R-903	Roller	1317	$109.00	+
M-80	Mandrel	1317	$37.00	+
