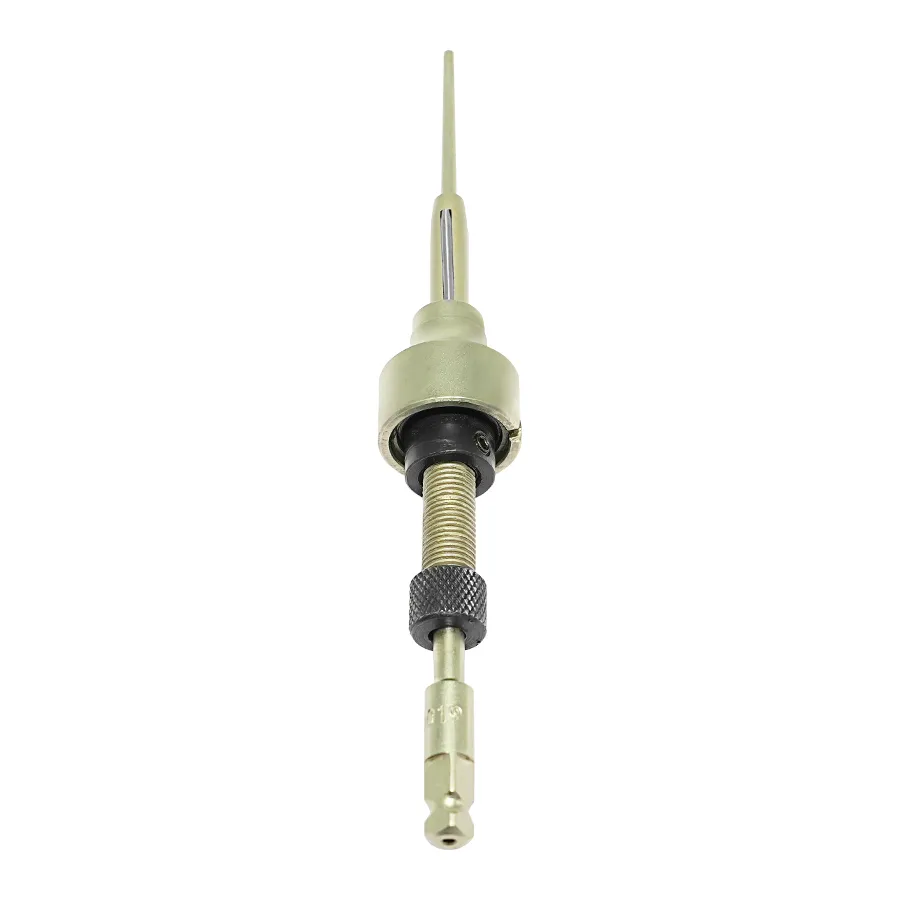

Condenser Tube Expanders AN Series
- Use : Oil Coolers, Radiators and other apparatus with small diameter tubes.
- Advantages : Captive mandrel – eliminates nut on mandrel tip which prevents scratching of tube I.D.
- Increased feed angle makes it the fastest operating tool on the market, ideal for high production environments.
Filters
Sort results
Reset
Apply
Expander | Min ID Tool Enters (mm)Min ID Tool Enters (inch) | Max Expansion Tool (mm)Max Expansion Tool (inch) | Reach (inch)Reach (mm) | Thickness (bwg) | Thickness (mm)Thickness (inch) | Drive inch | Price | |
|---|---|---|---|---|---|---|---|---|
A-25018 |
3.7 0.148 |
4.2 0.167 |
1 25.4 |
18 |
1.24 0.049 |
1/4" |
$95.00 |
|
A-25019 |
4 0.16 |
4.5 0.18 |
1 25.4 |
19 |
1.07 0.042 |
1/4" |
$95.00 |
|
A-25020 |
4.4 0.175 |
4.9 0.196 |
1 25.4 |
20 |
0.89 0.035 |
1/4" |
$95.00 |
|
A-25021 |
4.5 0.18 |
5.1 0.202 |
1 25.4 |
21 |
0.81 0.032 |
1/4" |
$95.00 |
|
A-25022 |
4.8 0.19 |
5.4 0.213 |
1 25.4 |
22 |
0.71 0.028 |
1/4" |
$95.00 |
|
A-25023 |
4.9 0.195 |
5.5 0.216 |
1 25.4 |
23 |
0.64 0.025 |
1/4" |
$95.00 |
|
A-25024 |
5.1 0.201 |
5.7 0.224 |
1 25.4 |
24 |
0.56 0.022 |
1/4" |
$95.00 |
|
A-25028 |
5.4 0.217 |
6.1 0.243 |
1 25.4 |
28-30 |
0.35-0.30 0.014-0.012 |
1/4" |
$95.00 |
|
A-37514 |
5.1 0.204 |
5.8 0.23 |
1 25.4 |
14 |
2.11 0.083 |
1/4" |
$95.00 |
|
A-37515 |
5.6 0.225 |
6.6 0.265 |
1 25.4 |
15 |
1.83 0.072 |
1/4" |
$95.00 |
|
A-37516 |
6 0.238 |
7 0.278 |
1 25.4 |
16 |
1.65 0.065 |
1/4" |
$95.00 |
|
A-37517 |
6.4 0.253 |
7.4 0.293 |
1 25.4 |
17 |
1.47 0.058 |
1/4" |
$95.00 |
|
A-37518 |
6.8 0.27 |
7.8 0.31 |
1 25.4 |
18 |
1.24 0.049 |
1/4" |
$95.00 |
|
A-37519 |
7.1 0.285 |
8.1 0.325 |
1 25.4 |
19 |
1.07 0.042 |
1/4" |
$95.00 |
|
A-37520 |
7.4 0.295 |
8.4 0.335 |
1 25.4 |
20 |
0.89 0.035 |
1/4" |
$95.00 |
|
A-37521 |
7.5 0.305 |
8.6 0.345 |
1 25.4 |
21 |
0.81 0.032 |
1/4" |
$95.00 |
|
A-37522 |
7.9 0.312 |
8.9 0.353 |
1 25.4 |
22 |
0.71 0.028 |
1/4" |
$95.00 |
|
A-37523 |
8.1 0.318 |
9.2 0.363 |
1 25.4 |
23-24 |
0.63-0.55 0.025-0.022 |
1/4" |
$95.00 |
Filters
Sort results
Reset
Apply
Item Code | Spare Part | Expander | Price | |
|---|---|---|---|---|
M-21819 |
Mandrel |
A-25018 |
$26.00 |
|
R-20018 |
Roller
|
A-25018 |
$3.57 |
|
M-21819 |
Mandrel |
A-25019 |
$26.00 |
|
R-21920 |
Roller |
A-25019 |
$3.57 |
|
M-22021 |
Mandrel |
A-25020 |
$26.00 |
|
R-21920 |
Roller |
A-25020 |
$3.57 |
|
M-22021 |
Mandrel |
A-25021 |
$26.00 |
|
R-22124 |
Roller |
A-25021 |
$3.57 |
|
M-20022 |
Mandrel |
A-25022 |
$26.00 |
|
R-22124 |
Roller |
A-25022 |
$3.57 |
|
M-22324 |
Mandrel |
A-25023 |
$26.00 |
|
R-21920 |
Roller |
A-25023 |
$3.57 |
|
M-22324 |
Mandrel |
A-25024 |
$26.00 |
|
R-22124 |
Roller |
A-25024 |
$3.57 |
|
M-22830 |
Mandrel |
A-25028 |
$26.00 |
|
R-22830 |
Roller |
A-25028 |
$3.57 |
|
M-22830-B |
Mandrel |
A-37514 |
$26.00 |
|
R-21920 |
Roller |
A-37514 |
$3.57 |
|
M-22830-B |
Mandrel |
A-37515 |
$26.00 |
|
R-31516 |
Roller |
A-37515 |
$3.57 |
|
M-31617 |
Mandrel |
A-37516 |
$26.00 |
|
R-31516 |
Roller |
A-37516 |
$3.57 |
|
M-31617 |
Mandrel |
A-37517 |
$26.00 |
|
R-31720 |
Roller |
A-37517 |
$3.57 |
|
M-30018 |
Mandrel |
A-37518 |
$26.00 |
|
R-31720 |
Roller |
A-37518 |
$3.57 |
|
M-30019 |
Mandrel |
A-37519 |
$26.00 |
|
R-31720 |
Roller |
A-37519 |
$3.57 |
|
M-32021 |
Mandrel |
A-37520 |
$26.00 |
|
R-31720 |
Roller |
A-37520 |
$3.57 |
