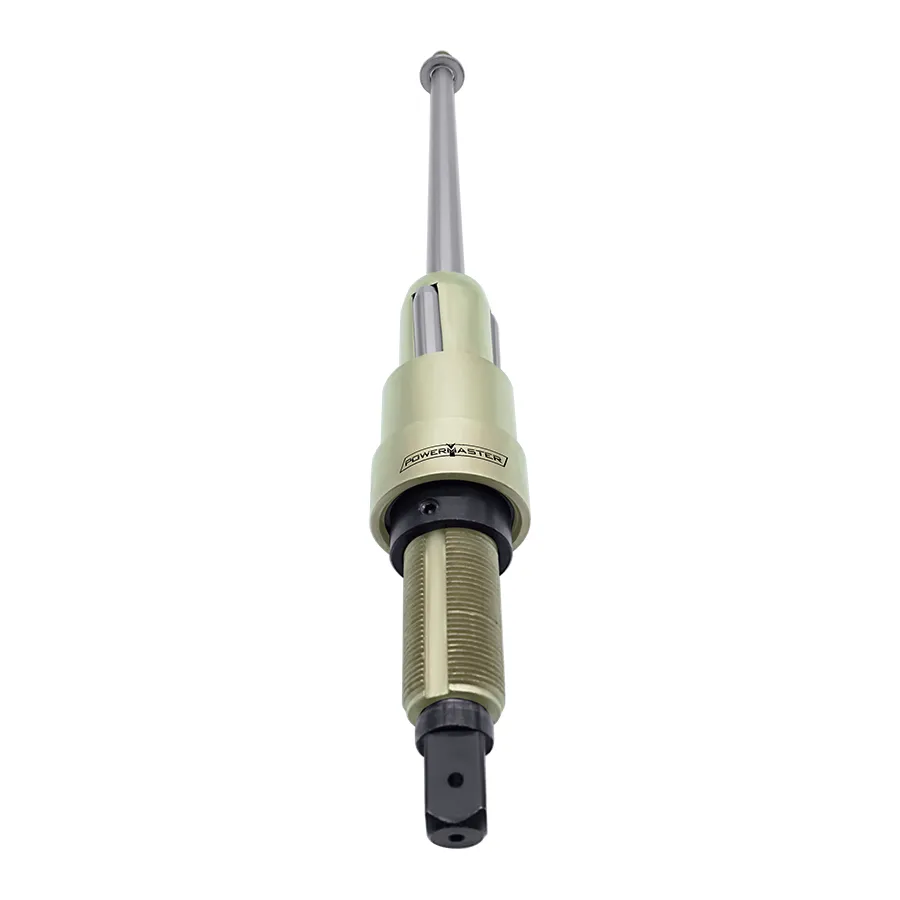

Condenser Tube Expanders 8012 Series
- 8012 Series Condenser Tube Expanders can be used to expand tubes in Air Heaters, Boilers and Refinery still tubes. Can be used to expand thick tube sheets (upto 8”).
- For Larger Size ‘8012’ series condenser tube expanders, please contact us.
Filters
Sort results
Reset
Apply
Expander | Min ID Tool Enters (mm) Min ID Tool Enters (inch) | Max Expansion Tool (mm)Max Expansion Tool (inch) | Reach (mm)Reach (inch) | Thickness (mm)Thickness (inch) | Thickness (bwg) | Drive inch | Price | |
|---|---|---|---|---|---|---|---|---|
8012-1.3/4-10 |
36 1.417 |
40.8 1.606 |
101.6 4 |
3.4 0.134 |
10 |
3/4" |
$264.00 |
|
8012-1.3/4-11 |
36.9 1.453 |
41.5 1.634 |
101.6 4 |
3.05 0.12 |
11 |
3/4" |
$264.00 |
|
8012-1.3/4-12 |
37.6 1.48 |
42 1.654 |
101.6 4 |
2.77 0.109 |
12 |
3/4" |
$264.00 |
|
8012-1.3/4-13 |
38.3 1.508 |
42.7 1.681 |
101.6 4 |
2.41 0.095 |
13 |
3/4" |
$264.00 |
|
8012-1.3/4-14 |
38.9 1.531 |
43.4 1.709 |
101.6 4 |
2.11 0.083 |
14 |
3/4" |
$264.00 |
|
8012-1.3/4-8 |
34.7 1.366 |
39.3 1.547 |
101.6 4 |
4.19 0.165 |
8 |
3/4" |
$264.00 |
|
8012-2-13-18 |
43.9 1.728 |
49.6 1.953 |
101.6 4 |
2.41-1.24 0.095-0.049 |
13-18 |
3/4" |
$264.00 |
|
8012-2.1/2-10-12 |
54.3 2.138 |
61.1 2.406 |
101.6 4 |
3.40-2.76 0.134-0.109 |
10-12 |
3/4" |
$295.00 |
|
8012-2.1/2-13-18 |
56.6 2.228 |
62.2 2.449 |
101.6 4 |
2.41-1.24 0.083-0.049 |
13-18 |
3/4" |
$295.00 |
|
8012-2.1/2-7-8 |
52 2.047 |
59.3 2.335 |
101.6 4 |
4.57-4.19 0.180-0.165 |
7-8 |
3/4" |
$295.00 |
|
8012-2.1/2-9 |
53.5 2.106 |
60.4 2.378 |
101.6 4 |
3.76 0.148 |
9 |
3/4" |
$295.00 |
|
8012-2.1/4-10 |
48 1.89 |
53.5 2.106 |
101.6 4 |
3.4 0.134 |
10 |
3/4" |
$283.00 |
|
8012-2.1/4-11 |
48.7 1.917 |
54.2 2.134 |
101.6 4 |
3.05 0.12 |
11 |
3/4" |
$283.00 |
|
8012-2.1/4-12 |
49.6 1.953 |
54.7 2.154 |
101.6 4 |
2.77 0.109 |
12 |
3/4" |
$283.00 |
|
8012-2.1/4-13-16 |
50.3 1.98 |
55.4 2.181 |
101.6 4 |
2.41-1.65 0.095-0.065 |
13-16 |
3/4" |
$283.00 |
|
8012-2.3/4-10-16 |
60.7 2.39 |
68.6 2.701 |
101.6 4 |
3.40-1.65 0.134-0.065 |
10-16 |
1" |
$314.00 |
|
8012-2"-10 |
41.6 1.638 |
47.1 1.854 |
101.6 4 |
3.4 0.134 |
10 |
3/4" |
$272.00 |
|
8012-2"-11 |
42.4 1.669 |
47.8 1.882 |
101.6 4 |
3.05 0.12 |
11 |
3/4" |
$272.00 |
|
8012-2"-12 |
43.2 1.701 |
48.4 1.906 |
101.6 4 |
2.77 0.109 |
12 |
3/4" |
$272.00 |
|
8012-2"-7 |
39.8 1.567 |
45 1.772 |
101.6 4 |
4.57 0.18 |
7 |
3/4" |
$272.00 |
|
8012-2"-8 |
40.5 1.594 |
45.6 1.795 |
101.6 4 |
4.19 0.165 |
8 |
3/4" |
$272.00 |
|
8012-3-10-18 |
67 2.638 |
74.9 2.949 |
101.6 4 |
3.40-1.24 0.134-0.049 |
10-18 |
1" |
$335.00 |
|
8012-3-8-9 |
65 2.559 |
71.8 2.827 |
101.6 4 |
4.19-3.75 0.165-0.148 |
08-09 |
1" |
$335.00 |
|
8012-3.1/2-10-18 |
81 3.189 |
88 3.465 |
101.6 4 |
2.41-1.24 0.095-0.049 |
13-18 |
1" |
$478.00 |
|
8012-4-10-18 |
93 3.661 |
100.6 3.961 |
101.6 4 |
3.40-1.65 0.134-0.065 |
10-16 |
1" |
$600.00 |
|
8012-4-3-4 |
87 3.425 |
96 3.78 |
101.6 4 |
6.60-6.00 0.259-0.236 |
03-04 |
1" |
$600.00 |
|
8012-4-8-9 |
91 3.583 |
100 3.937 |
101.6 4 |
4.19-3.75 0.165-0.148 |
08-09 |
1" |
$600.00 |
|
8012-4.1/2-10-18 |
104 4.094 |
113 4.449 |
101.6 4 |
3.40-1.65 0.134-0.065 |
10-16 |
1" |
$822.00 |
|
8012-4.1/2-3-4 |
100 3.937 |
109 4.291 |
101.6 4 |
6.30-6.00 0.259-0.236 |
03-04 |
1" |
$822.00 |
|
8012-4.1/2-8-9 |
102 4.016 |
111 4.37 |
101.6 4 |
4.19-3.75 0.165-0.148 |
08-09 |
1" |
$822.00 |
Filters
Sort results
Reset
Apply
Item Code | Spare Part | Expander | Price | |
|---|---|---|---|---|
R-37-A |
Roller |
8012-1.3/4-10 |
$7.65 |
|
M-90 |
Mandrel |
8012-1.3/4-10 |
$65.00 |
|
R-42 |
Roller |
8012-1.3/4-11 |
$7.65 |
|
M-90 |
Mandrel |
8012-1.3/4-11 |
$65.00 |
|
R-44 |
Roller |
8012-1.3/4-12 |
$7.65 |
|
M-90 |
Mandrel |
8012-1.3/4-12 |
$65.00 |
|
R-46 |
Roller |
8012-1.3/4-13 |
$7.65 |
|
M-90 |
Mandrel |
8012-1.3/4-13 |
$65.00 |
|
R-48 |
Roller |
8012-1.3/4-14 |
$7.65 |
|
M-90 |
Mandrel |
8012-1.3/4-14 |
$65.00 |
|
R-33-A |
Roller |
8012-1.3/4-8 |
$7.65 |
|
M-90 |
Mandrel |
8012-1.3/4-8 |
$65.00 |
|
R-56 |
Roller |
8012-2-13-18 |
$9.35 |
|
M-91 |
Mandrel |
8012-2-13-18 |
$77.00 |
|
R-64 |
Roller |
8012-2.1/2-10-12 |
$88.00 |
|
M-93 |
Mandrel |
8012-2.1/2-10-12 |
$88.00 |
|
R-64 |
Roller |
8012-2.1/2-13-18 |
$88.00 |
|
M-94 |
Mandrel |
8012-2.1/2-13-18 |
$88.00 |
|
R-45-A |
Roller |
8012-2.1/2-7-8 |
$11.05 |
|
M-92 |
Mandrel |
8012-2.1/2-7-8 |
$88.00 |
|
R-46-A |
Roller |
8012-2.1/2-9 |
$11.05 |
|
M-93 |
Mandrel |
8012-2.1/2-9 |
$88.00 |
|
R-56 |
Roller |
8012-2.1/4-10 |
$10.20 |
|
M-92 |
Mandrel |
8012-2.1/4-10 |
$83.00 |
|
R-58 |
Roller |
8012-2.1/4-11 |
$10.20 |
|
M-92 |
Mandrel |
8012-2.1/4-11 |
$83.00 |
|
R-60 |
Roller |
8012-2.1/4-12 |
$10.20 |
|
M-92 |
Mandrel |
8012-2.1/4-12 |
$83.00 |
|
R-62 |
Roller |
8012-2.1/4-13-16 |
$10.20 |
|
M-92 |
Mandrel |
8012-2.1/4-13-16 |
$83.00 |
