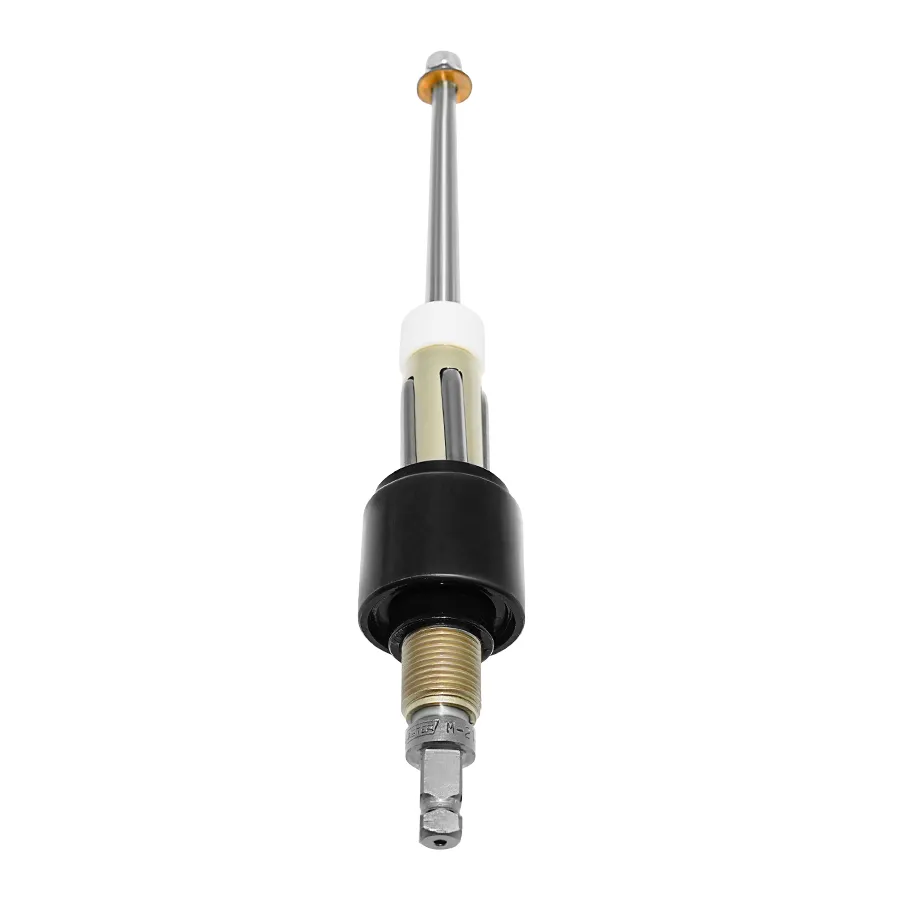

Condenser Tube Expanders 800-5 Series

  • Use : Highly recommended for use on thin walled condenser tubes (19 thru 24 gauge walls) of Stainless Steel, Titanium, Incoloy and other exotic materials.
  • Advantages : Gives a more concentric and even expansion when expanding thin walled condenser tubes vs. a conventional 3 roll condenser tube expander and reduces tube spring back effect.

Select Spare Part Table

Unit
TOD inch
Roller Length (mm)
Roller Length (inch)
Filters Sort results
Reset Apply
Expander
Min ID Tool Enters (mm)Min ID Tool Enters (inch)
Max Expansion Tool (mm)Max Expansion Tool (inch)
Reach (inch)Reach (mm)
Thickness (inch)Thickness (mm)
Thickness (bwg)
Drive inch
Price
815-5
12.6
0.496
14.3
0.563
2
50.8
0.058
1.47
17
3/8"
$118.15
+
816-5
12.6
0.496
14.3
0.563
2 9/16
65.02
0.058
1.47
17
3/8"
$135.15
+
817-5
13.1
0.516
14.6
0.575
2
50.8
0.049
1.24
18
3/8"
$118.15
+
819-5
13.3
0.524
14.8
0.583
2
50.8
0.042
1.07
19
3/8"
$118.15
+
820-5
13.3
0.524
14.8
0.583
2 9/16
65.02
0.042
1.07
19
3/8"
$135.15
+
819-5 S
13.6
0.535
15.1
0.594
2
50.8
0.035-0.028
0.88-0.71
20-22
3/8"
$118.15
+
820-5 S
13.6
0.535
15.1
0.594
2 9/16
65.02
0.035-0.028
0.88-0.71
20-22
3/8"
$135.15
+
821-5
13.9
0.547
15.6
0.614
2
50.8
0.095
2.41
13
3/8"
$118.15
+
822-5
13.9
0.547
15.6
0.614
2 9/16
65.02
0.095
2.41
13
3/8"
$135.15
+
823-5
14.5
0.571
15.9
0.626
2
50.8
0.083
2.11
14
3/8"
$118.15
+
824-5
14.5
0.571
15.9
0.626
2 9/16
65.02
0.083
2.11
14
3/8"
$135.15
+
825-5
14.9
0.587
16.8
0.661
2
50.8
0.072
1.83
15
3/8"
$118.15
+
826-5
14.9
0.587
16.8
0.661
2 9/16
65.02
0.072
1.83
15
3/8"
$135.15
+
827-5
15.3
0.602
17.2
0.677
2
50.8
0.065
1.65
16
3/8"
$118.15
+
828-5
15.3
0.602
17.2
0.677
2 9/16
65.02
0.065
1.65
16
3/8"
$135.15
+
829-5
15.7
0.618
17.8
0.701
2
50.8
0.058-0.049
1.47-1.24
17-18
3/8"
$118.15
+
830-5
15.7
0.618
17.8
0.701
2 9/16
65.02
0.058-0.049
1.47-1.24
17-18
3/8"
$135.15
+
831-5
16.3
0.642
18.5
0.728
2
50.8
0.042-0.028
1.06-0.71
19-22
3/8"
$135.15
+
832-5
16.3
0.642
18.5
0.728
2 9/16
65.02
0.042-0.028
1.06-0.71
19-22
3/8"
$144.50
+
833-5
17
0.669
18.9
0.744
2
50.8
0.025-0.020
0.64-0.51
23-25
3/8"
$125.80
+
834-5
17
0.669
18.9
0.744
2 9/16
65.02
0.025-0.020
0.64-0.51
23-25
3/8"
$144.50
+
833-5
17
0.669
18.9
0.744
2
50.8
0.095
2.41
13
3/8"
$125.80
+
834-5
17
0.669
18.9
0.744
2 9/16
65.02
0.095
2.41
13
3/8"
$144.50
+
835-5
17.4
0.685
19
0.748
2
50.8
0.082-0.072
2.10-1.83
14-15
3/8"
$125.80
+
836-5
17.4
0.685
19
0.748
2 9/16
65.02
0.082-0.072
2.10-1.83
14-15
3/8"
$144.50
+
839-5
18.4
0.724
20.3
0.799
2
50.8
0.065
1.65
16
3/8"
$125.80
+
840-5
18.4
0.724
20.3
0.799
2 9/16
65.02
0.065
1.65
16
3/8"
$144.50
+
843-5
18.8
0.74
20.9
0.823
2
50.8
0.058-0.049
1.47-1.24
17-18
3/8"
$125.80
+
844-5
18.8
0.74
20.9
0.823
2 9/16
65.02
0.058-0.049
1.47-1.24
17-18
3/8"
$144.50
+
845-5
19.4
0.764
21.6
0.85
2
50.8
0.042-0.028
1.07-0.71
19-22
3/8"
$125.80
+
1 2 3

Select Expander Table

Spare Part
Filters Sort results
Reset Apply
Item Code
Spare Part
Expander
Price
R-4-5
Roller
815-5
$3.40
+
M-816-5
Mandrel
815-5
$27.37
+
R-4-A-5
Roller
816-5
$4.25
+
M-816-5
Mandrel
816-5
$27.37
+
R-4-5
Roller
817-5
$3.40
+
M-9
Mandrel
817-5
$27.37
+
R-4-5
Roller
819-5
$3.40
+
R-4-5
Roller
819-5 S
$4.25
+
M-820-5 S
Mandrel
819-5 S
$27.37
+
M-820-5 S
Mandrel
819-5 S
$27.37
+
R-4-A-5
Roller
820-5
$3.40
+
M-820-5
Mandrel
820-5
$27.37
+
R-4-A-5
Roller
820-5 S
$4.25
+
M-820-5 S
Mandrel
820-5 S
$27.37
+
R-5-5
Roller
821-5
$3.40
+
M-822-5
Mandrel
821-5
$27.37
+
R-5-A-5
Roller
822-5
$4.25
+
M-822-5
Mandrel
822-5
$27.37
+
R-6-5
Roller
823-5
$3.40
+
M-824-5
Mandrel
823-5
$27.37
+
R-6-A-5
Roller
824-5
$4.25
+
M-824-5
Mandrel
824-5
$27.37
+
R-7-5
Roller
825-5
$3.40
+
M-826-5
Mandrel
825-5
$27.37
+
R-7-A-5
Roller
826-5
$4.25
+
M-826-5
Mandrel
826-5
$27.37
+
R-7-5
Roller
827-5
$3.40
+
M-13
Mandrel
827-5
$27.37
+
R-7-A-5
Roller
828-5
$4.25
+
M-13
Mandrel
828-5
$27.37
+
1 2 … 5
