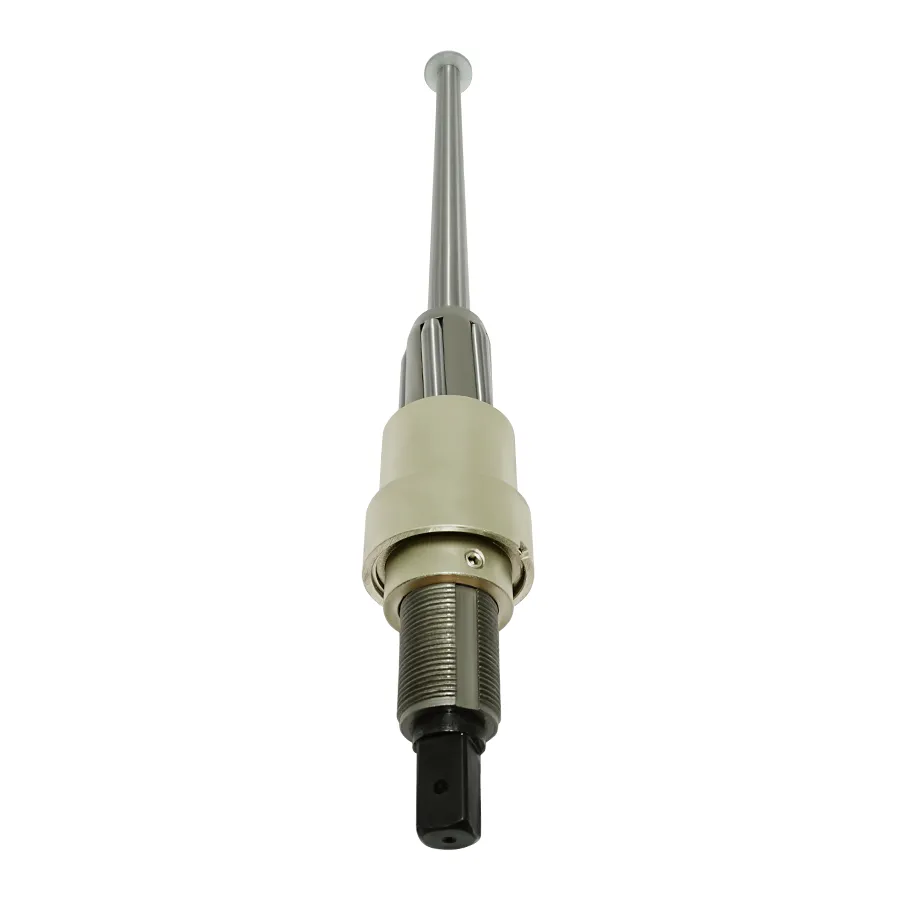

Condenser Tube Expanders 8012-5 Series
- 8012-5 Series Condenser Tube Expanders can be used to expand tubes in Air Heaters, Boilers and Refinery still tubes. Can be used to expand thick tube sheets (upto 8”).
- For Larger Size ‘8012-5’ series condenser tube expanders.
Filters
Sort results
Reset
Apply
Expander | Min ID Tool Enters (mm)Min ID Tool Enters (inch) | Max Expansion Tool (mm)Max Expansion Tool (inch) | Reach (mm)Reach (inch) | Thickness (mm)Thickness (inch) | Thickness (bwg) | Drive inch | Price | |
|---|---|---|---|---|---|---|---|---|
8012-1.3/4-10 - 5 |
36 1.417 |
40.8 1.606 |
101.6 4 |
3.4 0.134 |
10 |
3/4" |
$267.00 |
|
8012-1.3/4-11 - 5 |
36.9 1.453 |
41.5 1.634 |
101.6 4 |
3.05 0.12 |
11 |
3/4" |
$267.00 |
|
8012-1.3/4-12 - 5 |
37.6 1.48 |
42 1.654 |
101.6 4 |
2.77 0.109 |
12 |
3/4" |
$267.00 |
|
8012-1.3/4-13 - 5 |
38.3 1.508 |
42.7 1.681 |
101.6 4 |
2.41 0.095 |
13 |
3/4" |
$267.00 |
|
8012-1.3/4-14 - 5 |
38.9 1.531 |
43.4 1.709 |
101.6 4 |
2.11 0.083 |
14 |
3/4" |
$267.00 |
|
8012-1.3/4-8 - 5 |
34.7 1.366 |
39.3 1.547 |
101.6 4 |
4.19 0.165 |
8 |
3/4" |
$267.00 |
|
8012-2-10 - 5 |
41.6 1.638 |
47.1 1.854 |
101.6 4 |
3.4 0.134 |
10 |
3/4" |
$278.00 |
|
8012-2-11 - 5 |
42.4 1.669 |
47.8 1.882 |
101.6 4 |
3.05 0.12 |
11 |
3/4" |
$278.00 |
|
8012-2-12 - 5 |
43.2 1.701 |
48.4 1.906 |
101.6 4 |
2.77 0.109 |
12 |
3/4" |
$278.00 |
|
8012-2-13-18 - 5 |
43.9 1.728 |
49.6 1.953 |
101.6 4 |
2.41-1.24 0.095-0.049 |
13-18 |
3/4" |
$278.00 |
|
8012-2-7 - 5 |
39.7 1.563 |
45 1.772 |
101.6 4 |
4.57 0.18 |
7 |
3/4" |
$278.00 |
|
8012-2-8 - 5 |
40.5 1.594 |
45.6 1.795 |
101.6 4 |
4.19 0.165 |
8 |
3/4" |
$278.00 |
|
8012-2.1/2-10-12 - 5 |
54.3 2.138 |
61.1 2.406 |
101.6 4 |
3.40-2.76 0.134-0.109 |
10-12 |
3/4" |
$300.00 |
|
8012-2.1/2-13-18 - 5 |
56.6 2.228 |
62.2 2.449 |
101.6 4 |
2.41-1.24 0.095-0.049 |
13-18 |
3/4" |
$300.00 |
|
8012-2.1/2-7-8 - 5 |
52 2.047 |
59.3 2.335 |
101.6 4 |
4.57-4.19 0.180-0.165 |
07-08 |
3/4" |
$300.00 |
|
8012-2.1/2-9 - 5 |
53.5 2.106 |
60.4 2.378 |
101.6 4 |
3.76 0.148 |
9 |
3/4" |
$300.00 |
|
8012-3-10-18 - 5 |
67 2.638 |
74.9 2.949 |
101.6 4 |
3.40-1.24 0.134-0.049 |
10-18 |
1" |
$341.00 |
|
8012-3-8-9 - 5 |
65 2.559 |
71.8 2.827 |
101.6 4 |
4.19-3.75 0.165-0.148 |
08-09 |
1" |
$341.00 |
Filters
Sort results
Reset
Apply
Item Code | Spare Part | Expander | Price | |
|---|---|---|---|---|
R-29-A-5 |
Roller |
8012-1.3/4-10 - 5 |
$7.65 |
|
M-91-5 |
Mandrel |
8012-1.3/4-10 - 5 |
$78.00 |
|
R-30-A-5 |
Roller |
8012-1.3/4-11 - 5 |
$7.65 |
|
M-91-5 |
Mandrel |
8012-1.3/4-11 - 5 |
$78.00 |
|
R-31-A-5 |
Roller |
8012-1.3/4-12 - 5 |
$7.65 |
|
M-91-5 |
Mandrel |
8012-1.3/4-12 - 5 |
$78.00 |
|
R-32-A-5 |
Roller |
8012-1.3/4-13 - 5 |
$30.00 |
|
M-91-5 |
Mandrel |
8012-1.3/4-13 - 5 |
$78.00 |
|
R-33-A-5 |
Roller |
8012-1.3/4-14 - 5 |
$7.65 |
|
M-91-5 |
Mandrel |
8012-1.3/4-14 - 5 |
$78.00 |
|
R-28-A-5 |
Roller |
8012-1.3/4-8 - 5 |
$7.65 |
|
M-91-5 |
Mandrel |
8012-1.3/4-8 - 5 |
$78.00 |
|
R-36-A-5 |
Roller |
8012-2-10 - 5 |
$9.35 |
|
M-93-5 |
Mandrel |
8012-2-10 - 5 |
$90.00 |
|
R-37-A-5 |
Roller |
8012-2-11 - 5 |
$9.35 |
|
M-93-5 |
Mandrel |
8012-2-11 - 5 |
$90.00 |
|
R-38-A-5 |
Roller |
8012-2-12 - 5 |
$9.35 |
|
M-93-5 |
Mandrel |
8012-2-12 - 5 |
$90.00 |
|
R-39-A-5 |
Roller |
8012-2-13-18 - 5 |
$9.35 |
|
M-93-5 |
Mandrel |
8012-2-13-18 - 5 |
$90.00 |
|
R-34-A-5 |
Roller |
8012-2-7 - 5 |
$9.35 |
|
M-93-5 |
Mandrel |
8012-2-7 - 5 |
$90.00 |
|
R-35-A-5 |
Roller |
8012-2-8 - 5 |
$9.35 |
|
M-93-5 |
Mandrel |
8012-2-8 - 5 |
$90.00 |
|
R-46-A-5 |
Roller |
8012-2.1/2-10-12 - 5 |
$11.05 |
|
M-94-5 |
Mandrel |
8012-2.1/2-10-12 - 5 |
$90.00 |
|
R-47-A-5 |
Roller |
8012-2.1/2-13-18 - 5 |
$11.05 |
|
M-94-5 |
Mandrel |
8012-2.1/2-13-18 - 5 |
$90.00 |
|
R-44-A-5 |
Roller |
8012-2.1/2-7-8 - 5 |
$11.05 |
|
M-94-5 |
Mandrel |
8012-2.1/2-7-8 - 5 |
$90.00 |
