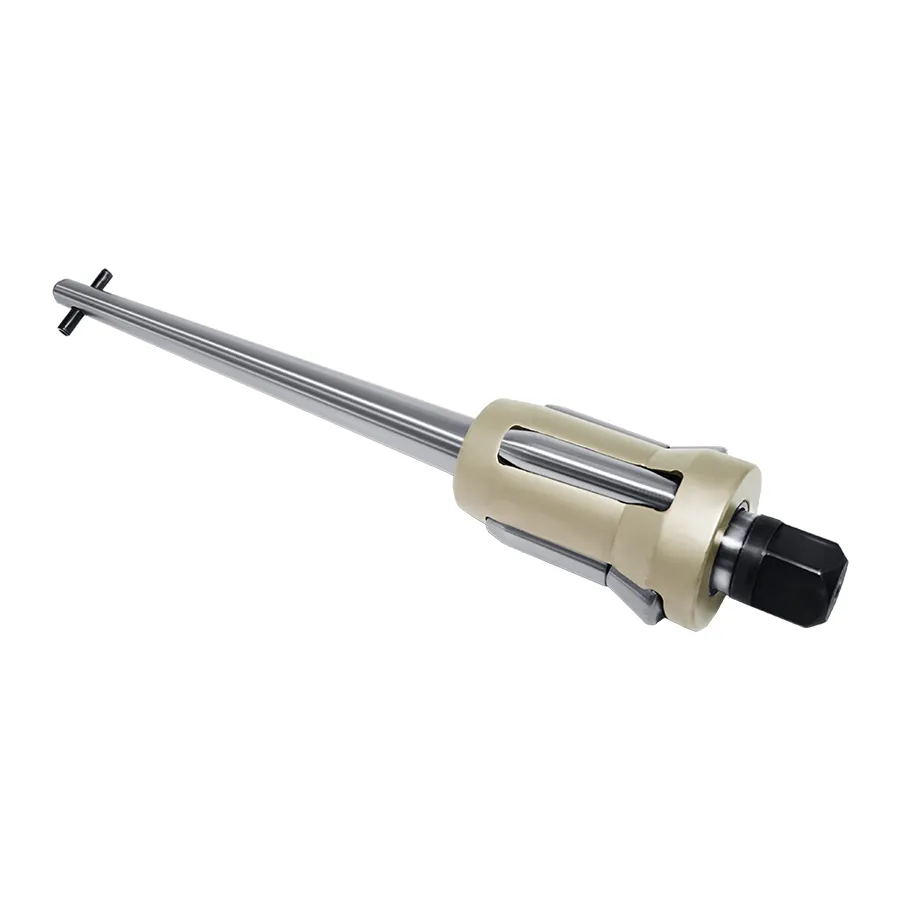

Boiler Tube Expanders 114 Series
- ‘5 Roll’ design is used primarily for rolling thin walled tubes used in sugar mill juice heaters, pans.
- 5 Rolls’ give you a more concentric, uniform expansion vs. a ‘3 roll’ expander in thin tubes and reduces tube ‘spring back’ effect.
- Use – For top plate tube expansion in pans, juice heaters in sugar mills.
Filters
Sort results
Reset
Apply
Expander | Min ID Tool Enters (mm)Min ID Tool Enters (inch) | Max Expansion Tool (mm)Max Expansion Tool (inch) | Reach (mm)Reach (inch) | Thickness (mm)Thickness (inch) | Thickness (bwg) | Drive inch | Price | |
|---|---|---|---|---|---|---|---|---|
14172 |
36.67 1.444 |
43.07 1.696 |
28.58 1 1/8 |
3.05-2.41 0.12-0.095 |
11-13 |
3/4" |
$208.00 |
|
14174 |
36.67 1.444 |
43.07 1.696 |
41.28 1 5/8 |
3.05-2.41 0.12-0.095 |
11-13 |
3/4" |
$232.00 |
|
14176 |
36.67 1.444 |
43.07 1.696 |
53.98 2 1/8 |
3.05-2.41 0.12-0.095 |
11-13 |
3/4" |
$254.00 |
|
14178 |
36.67 1.444 |
43.07 1.696 |
66.68 2 5/8 |
3.05-2.41 0.12-0.095 |
11-13 |
3/4" |
$273.00 |
|
14182 |
38.27 1.507 |
44.57 1.755 |
28.58 1 1/8 |
2.11-1.65 0.083-0.065 |
14-16 |
3/4" |
$208.00 |
|
14184 |
38.27 1.507 |
44.57 1.755 |
41.28 1 5/8 |
2.11-1.65 0.083-0.065 |
14-16 |
3/4" |
$232.00 |
|
14186 |
38.27 1.507 |
44.57 1.755 |
53.98 2 1/8 |
2.11-1.65 0.083-0.065 |
14-16 |
3/4" |
$254.00 |
|
14188 |
38.27 1.507 |
44.57 1.755 |
66.68 2 5/8 |
2.11-1.65 0.083-0.065 |
14-16 |
3/4" |
$273.00 |
|
14172 |
36.67 1.444 |
43.07 1.696 |
28.58 1 1/8 |
6.05-5.59 0.238-0.22 |
4-5 |
3/4" |
$208.00 |
|
14174 |
36.67 1.444 |
43.07 1.696 |
41.28 1 5/8 |
6.05-5.59 0.238-0.22 |
4-5 |
3/4" |
$232.00 |
|
14176 |
36.67 1.444 |
43.07 1.696 |
53.98 2 1/8 |
6.05-5.59 0.238-0.22 |
4-5 |
3/4" |
$254.00 |
|
14178 |
36.67 1.444 |
43.07 1.696 |
66.68 2 5/8 |
6.05-5.59 0.238-0.22 |
4-5 |
3/4" |
$273.00 |
|
14182 |
38.27 1.507 |
44.57 1.755 |
28.58 1 1/8 |
5.16-4.57 0.203-0.18 |
6-7 |
3/4" |
$208.00 |
|
14184 |
38.27 1.507 |
44.57 1.755 |
41.28 1 5/8 |
5.16-4.57 0.203-0.18 |
6-7 |
3/4" |
$232.00 |
|
14186 |
38.27 1.507 |
44.57 1.755 |
53.98 2 1/8 |
5.16-4.57 0.203-0.18 |
6-7 |
3/4" |
$254.00 |
|
14188 |
38.27 1.507 |
44.57 1.755 |
66.68 2 5/8 |
5.16-4.57 0.203-0.18 |
6-7 |
3/4" |
$273.00 |
|
14191 |
39.87 1.57 |
46.38 1.826 |
22.23 7/8 |
4.57-4.19 0.18-0.165 |
7-8 |
3/4" |
$199.00 |
|
14192 |
39.87 1.57 |
46.38 1.826 |
28.58 1 1/8 |
4.57-4.19 0.18-0.165 |
7-8 |
3/4" |
$208.00 |
|
14194 |
39.87 1.57 |
46.38 1.826 |
41.28 1 5/8 |
4.57-4.19 0.18-0.165 |
7-8 |
3/4" |
$232.00 |
|
14196 |
39.87 1.57 |
46.38 1.826 |
53.98 2 1/8 |
4.57-4.19 0.18-0.165 |
7-8 |
3/4" |
$254.00 |
|
14198 |
39.87 1.57 |
46.38 1.826 |
66.68 2 5/8 |
4.57-4.19 0.18-0.165 |
7-8 |
3/4" |
$273.00 |
|
14201 |
41.47 1.633 |
47.98 1.889 |
22.23 7/8 |
3.76-3.40 0.148-0.134 |
9-10 |
3/4" |
$208.00 |
|
14202 |
41.47 1.633 |
47.98 1.889 |
28.58 1 1/8 |
3.76-3.40 0.148-0.134 |
9-10 |
3/4" |
$221.00 |
|
14204 |
41.47 1.633 |
47.98 1.889 |
41.28 1 5/8 |
3.76-3.40 0.148-0.134 |
9-10 |
3/4" |
$254.00 |
|
14206 |
41.47 1.633 |
47.98 1.889 |
53.98 2 1/8 |
3.76-3.40 0.148-0.134 |
9-10 |
3/4" |
$267.00 |
|
14208 |
41.47 1.633 |
47.98 1.889 |
66.68 2 5/8 |
3.76-3.40 0.148-0.134 |
9-10 |
3/4" |
$290.00 |
|
14211 |
43.07 1.696 |
49.58 1.952 |
22.23 7/8 |
3.05-2.41 0.12-0.095 |
11-13 |
3/4" |
$208.00 |
|
14212 |
43.07 1.696 |
49.58 1.952 |
28.58 1 1/8 |
3.05-2.41 0.12-0.095 |
11-13 |
3/4" |
$221.00 |
|
14214 |
43.07 1.696 |
49.58 1.952 |
41.28 1 5/8 |
3.05-2.41 0.12-0.095 |
11-13 |
3/4" |
$254.00 |
|
14216 |
43.07 1.696 |
49.58 1.952 |
53.98 2 1/8 |
3.05-2.41 0.12-0.095 |
11-13 |
3/4" |
$267.00 |
Filters
Sort results
Reset
Apply
Item Code | Spare Part | Expander | Price | |
|---|---|---|---|---|
R-34872 |
Roller |
14172 |
$66.00 |
|
R-34872 |
Roller |
14172 |
$66.00 |
|
M-32269 |
Mandrel |
14172 |
$57.00 |
|
M-32269 |
Mandrel |
14172 |
$57.00 |
|
R-34874 |
Roller |
14174 |
$66.00 |
|
R-34874 |
Roller |
14174 |
$66.00 |
|
M-32269 |
Mandrel |
14174 |
$57.00 |
|
M-32269 |
Mandrel |
14174 |
$57.00 |
|
R-34876 |
Roller |
14176 |
$66.00 |
|
R-34876 |
Roller |
14176 |
$66.00 |
|
M-32269 |
Mandrel |
14176 |
$57.00 |
|
M-32269 |
Mandrel |
14176 |
$57.00 |
|
R-34948 |
Roller |
14178 |
$68.00 |
|
R-34948 |
Roller |
14178 |
$68.00 |
|
M-32269 |
Mandrel |
14178 |
$57.00 |
|
M-32269 |
Mandrel |
14178 |
$57.00 |
|
R-34879 |
Roller |
14182 |
$66.00 |
|
R-34879 |
Roller |
14182 |
$66.00 |
|
M-32269 |
Mandrel |
14182 |
$57.00 |
|
M-32269 |
Mandrel |
14182 |
$57.00 |
|
R-34881 |
Roller |
14184 |
$66.00 |
|
R-34881 |
Roller |
14184 |
$66.00 |
|
M-32269 |
Mandrel |
14184 |
$57.00 |
|
M-32269 |
Mandrel |
14184 |
$57.00 |
|
R-34883 |
Roller |
14186 |
$59.00 |
|
R-34883 |
Roller |
14186 |
$59.00 |
|
M-32269 |
Mandrel |
14186 |
$57.00 |
|
M-32269 |
Mandrel |
14186 |
$57.00 |
|
R-34949 |
Roller |
14188 |
$68.00 |
|
R-34949 |
Roller |
14188 |
$68.00 |
