Tube Tools — Boiler Tube Expanders

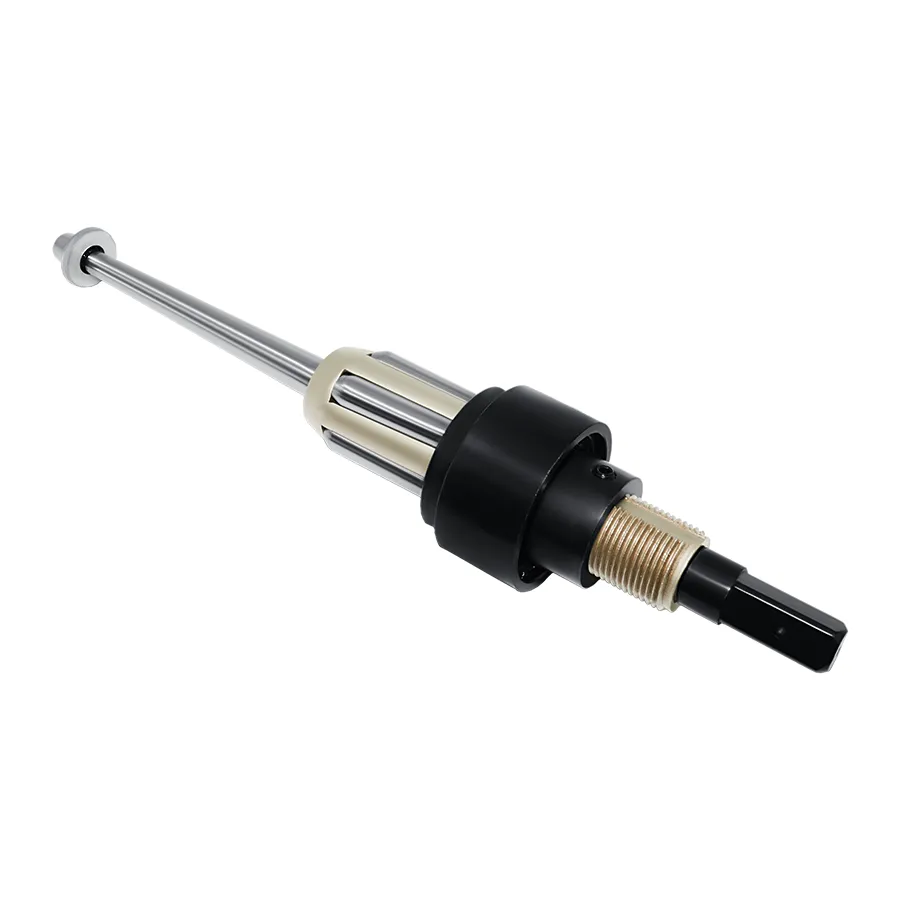

SB Series
Boiler Tube Expanders

  • Overlapping rolls prevent ridging of tube.
  • Can be converted for parallel expansion use – enquire with us.
  • Self retained rolls in cage.
  • Compact design for use through small hand holes, headers etc.
  • Use – General purpose expander for expanding and flaring boiler tubes, water wall, downcomer, economizer, riser and air heater tubes.
Powermaster
Delivery
High Quality
Material
ISO
Standards
Secure
Transaction
Select & Add to Cart
Unit
TOD inch
Roller Length (mm)
Roller Length (inch)
Filters Sort results
Reset Apply
Expander
Min ID Tool Enters (mm)Min ID Tool Enters (inch)
Max Expansion Tool (mm)Max Expansion Tool (inch)
Reach (mm)Reach (inch)
Thickness (mm)Thickness (inch)
Thickness (bwg)
Drive inch
Price
SB-00C
31
1.22
33.2
1.307
50.8
2
3.05-2.77
0.12-0.109
11-12
1/2
Original price was: $46.80.Current price is: $39.00.
+
SB-0C
32.5
1.279
36
1.417
50.8
2
2.41-2.11
0.095-0.083
13-14
1/2
Original price was: $46.80.Current price is: $39.00.
+
SB-1A
33.5
1.319
37.2
1.465
31.8
1.1/4
1.82-1.65
0.072-0.065
15-16
1/2
Original price was: $49.20.Current price is: $41.00.
+
SB-1B
33.5
1.319
37.2
1.465
38.1
1.1/2
1.82-1.65
0.072-0.065
15-16
1/2
Original price was: $49.20.Current price is: $41.00.
+
SB-1C
33.5
1.319
37.2
1.465
50.8
2
1.82-1.65
0.072-0.065
15-16
1/2
Original price was: $49.20.Current price is: $41.00.
+
SB-00A
35.2
1.386
39.1
1.539
31.8
1.1/4
3.05-2.77
0.12-0.109
11-12
3/4
Original price was: $46.80.Current price is: $39.00.
+
SB-00B
35.2
1.386
39.1
1.539
38.1
1.1/2
3.05-2.77
0.12-0.109
11-12
3/4
Original price was: $46.80.Current price is: $39.00.
+
SB-0A
35.2
1.386
39.1
1.539
31.8
1.1/4
2.41-2.11
0.095-0.083
13-14
3/4
Original price was: $46.80.Current price is: $39.00.
+
SB-0B
36.5
1.437
40.5
1.594
38.1
1.1/2
2.41-2.11
0.095-0.083
13-14
3/4
Original price was: $46.80.Current price is: $39.00.
+
SB-2A
36.5
1.437
40.5
1.594
31.8
1.1/4
3.76-3.40
0.148-0.134
9-10
3/4
Original price was: $58.80.Current price is: $49.00.
+
SB-2B
36.5
1.437
40.5
1.594
38.1
1.1/2
3.76-3.40
0.148-0.134
9-10
3/4
Original price was: $58.80.Current price is: $49.00.
+
SB-2C
38.1
1.5
42.7
1.681
50.8
2
3.76-3.40
0.148-0.134
9-10
3/4
Original price was: $58.80.Current price is: $49.00.
+
SB-3A
39.1
1.539
42.7
1.681
31.8
1.1/4
3.05-2.77
0.12-0.109
11-12
3/4
Original price was: $66.00.Current price is: $55.00.
+
SB-3B
39.1
1.539
42.7
1.681
38.1
1.1/2
3.05-2.77
0.12-0.109
11-12
3/4
Original price was: $66.00.Current price is: $55.00.
+
SB-3C
39.1
1.539
44.2
1.74
50.8
2
3.05-2.77
0.12-0.109
11-12
3/4
Original price was: $66.00.Current price is: $55.00.
+
SB-4A
38.1
1.5
42.7
1.681
31.8
1.1/4
2.41-2.11
0.095-0.083
13-14
3/4
Original price was: $66.00.Current price is: $55.00.
+
SB-4B
38.1
1.5
42.7
1.681
38.1
1.1/2
2.41-2.11
0.095-0.083
13-14
3/4
Original price was: $66.00.Current price is: $55.00.
+
SB-4C
38.1
1.5
42.7
1.681
50.8
2
2.41-2.11
0.095-0.083
13-14
3/4
Original price was: $66.00.Current price is: $55.00.
+
SB-5A
39.1
1.539
44.2
1.74
31.8
1.1/4
1.82-1.65
0.072-0.065
15-16
3/4
Original price was: $70.80.Current price is: $59.00.
+
SB-5B
39.1
1.539
44.2
1.74
38.1
1.1/2
1.82-1.65
0.072-0.065
15-16
3/4
Original price was: $70.80.Current price is: $59.00.
+
SB-5C
39.1
1.539
44.2
1.74
50.8
2
1.82-1.65
0.072-0.065
15-16
3/4
Original price was: $70.80.Current price is: $59.00.
+
SB-6A
41.3
1.626
46.7
1.838
31.8
1.1/4
4.57-4.19
0.180-0.165
7-8
3/4
Original price was: $70.80.Current price is: $59.00.
+
SB-6B
41.3
1.626
46.7
1.838
38.1
1.1/2
4.57-4.19
0.180-0.165
7-8
3/4
Original price was: $70.80.Current price is: $59.00.
+
SB-6C
41.3
1.626
46.7
1.838
50.8
2
4.57-4.19
0.180-0.165
7-8
3/4
Original price was: $70.80.Current price is: $59.00.
+
SB-7A
42.8
1.685
48.3
1.901
31.8
1.1/4
3.76-3.40
0.148-0.134
9-10
3/4
Original price was: $70.80.Current price is: $59.00.
+
SB-7B
42.8
1.685
48.3
1.901
38.1
1.1/2
3.76-3.40
0.148-0.134
9-10
3/4
Original price was: $70.80.Current price is: $59.00.
+
SB-7C
42.8
1.685
48.3
1.901
50.8
2
3.76-3.40
0.148-0.134
9-10
3/4
Original price was: $70.80.Current price is: $59.00.
+
SB-8A
44.4
1.748
49.7
1.957
31.8
1.1/4
3.05-2.41
0.120-0.095
11-13
3/4
Original price was: $72.00.Current price is: $60.00.
+
SB-8B
44.4
1.748
49.7
1.957
38.1
1.1/2
3.05-2.41
0.120-0.095
11-13
3/4
Original price was: $72.00.Current price is: $60.00.
+
SB-8C
44.4
1.748
49.7
1.957
50.8
2
3.05-2.41
0.120-0.095
11-13
3/4
Original price was: $72.00.Current price is: $60.00.
+
1 2 3
Select Expander Table
Spare Part
Filters Sort results
Reset Apply
Item Code
Spare Part
Expander
Price
SBR-1A
Roller
SB-00A
Original price was: $18.00.Current price is: $15.00.
+
SBM-1
Mandrel
SB-00A
Original price was: $9.60.Current price is: $8.00.
+
SBR-1B
Roller
SB-00B
Original price was: $18.00.Current price is: $15.00.
+
SBM-1
Mandrel
SB-00B
Original price was: $9.60.Current price is: $8.00.
+
SBR-1C
Roller
SB-00C
Original price was: $18.00.Current price is: $15.00.
+
SBM-1
Mandrel
SB-00C
Original price was: $9.60.Current price is: $8.00.
+
SBR-2A
Roller
SB-0A
Original price was: $13.20.Current price is: $11.00.
+
SBM-2
Mandrel
SB-0A
Original price was: $10.20.Current price is: $8.50.
+
SBR-2B
Roller
SB-0B
Original price was: $13.20.Current price is: $11.00.
+
SBM-2
Mandrel
SB-0B
Original price was: $10.20.Current price is: $8.50.
+
SBR-2C
Roller
SB-0C
Original price was: $13.20.Current price is: $11.00.
+
SBM-2
Mandrel
SB-0C
Original price was: $10.20.Current price is: $8.50.
+
SBR-8A
Roller
SB-10A
Original price was: $14.40.Current price is: $12.00.
+
SBM-5
Mandrel
SB-10A
Original price was: $18.00.Current price is: $15.00.
+
SBR-8B
Roller
SB-10B
Original price was: $14.40.Current price is: $12.00.
+
SBM-5
Mandrel
SB-10B
Original price was: $18.00.Current price is: $15.00.
+
SBR-8C
Roller
SB-10C
Original price was: $14.40.Current price is: $12.00.
+
SBM-5
Mandrel
SB-10C
Original price was: $18.00.Current price is: $15.00.
+
SBR-9A
Roller
SB-11A
Original price was: $14.40.Current price is: $12.00.
+
SBM-5
Mandrel
SB-11A
Original price was: $18.00.Current price is: $15.00.
+
SBR-9B
Roller
SB-11B
Original price was: $14.40.Current price is: $12.00.
+
SBM-5
Mandrel
SB-11B
Original price was: $18.00.Current price is: $15.00.
+
SBR-9C
Roller
SB-11C
Original price was: $14.40.Current price is: $12.00.
+
SBM-5
Mandrel
SB-11C
Original price was: $18.00.Current price is: $15.00.
+
SBR-8A
Roller
SB-12A
Original price was: $14.40.Current price is: $12.00.
+
SBM-6
Mandrel
SB-12A
Original price was: $18.00.Current price is: $15.00.
+
SBR-8B
Roller
SB-12B
Original price was: $14.40.Current price is: $12.00.
+
SBM-6
Mandrel
SB-12B
Original price was: $18.00.Current price is: $15.00.
+
SBR-8C
Roller
SB-12C
Original price was: $14.40.Current price is: $12.00.
+
SBM-6
Mandrel
SB-12C
Original price was: $18.00.Current price is: $15.00.
+
1 2 … 6
