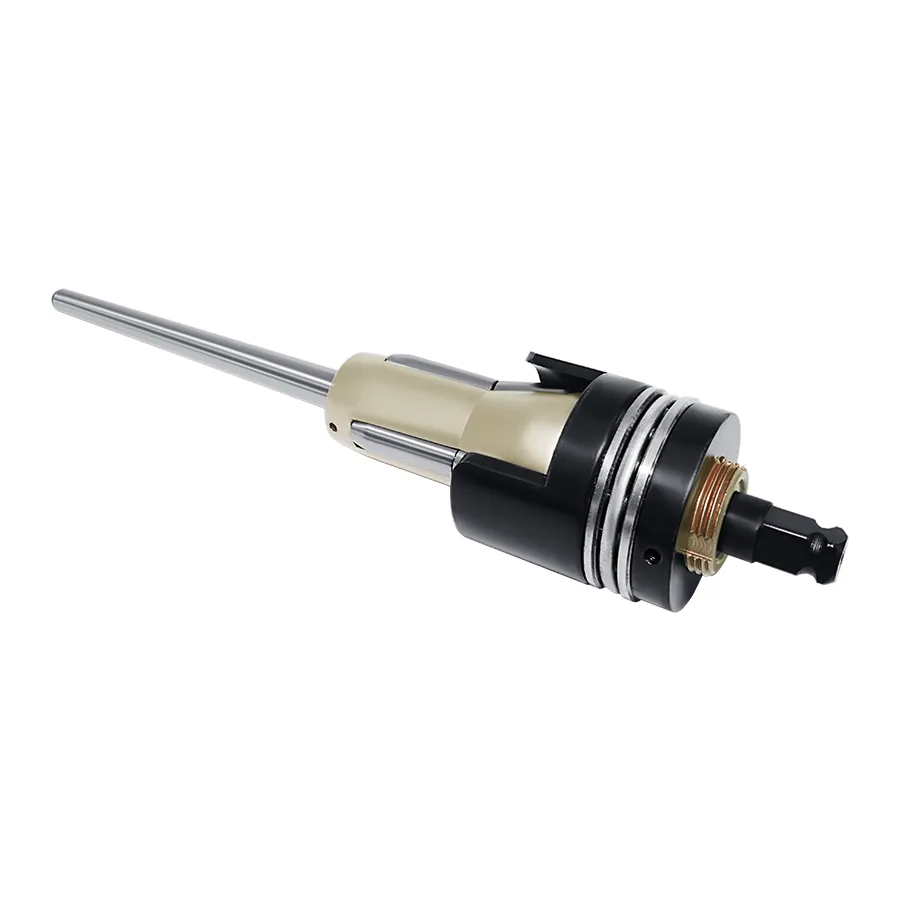

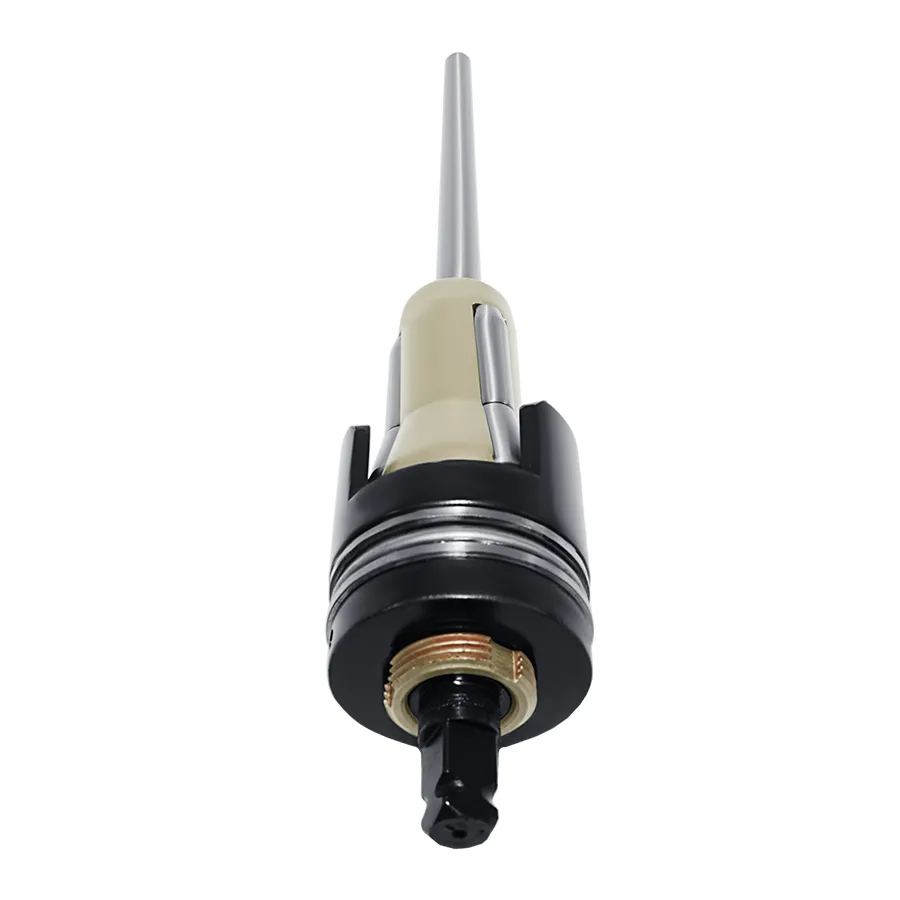

Boiler Tube Expanders ABF3 Series
- ‘Value For Money’ tool in the world when flaring of boiler tube ends is needed.
- Sturdy construction with rolls self contained in cage.
- Time tested, durable design.
- Overlapping flare rolls prevent ridging of boiler tubes.
- Bearing reduces frictional buildup for smoother tube expanding cycles.
- Bearing increases useful life of tool.
- Use : High productivity tool used where flaring of tubes ends is needed
Filters
Sort results
Reset
Apply
Expander | Min ID Tool Enters (mm)Min ID Tool Enters (inch) | Max Expansion Tool (mm)Max Expansion Tool (inch) | Reach (mm)Reach (inch) | Thickness (mm)Thickness (inch) | Thickness (bwg) | Drive inch | Price | |
|---|---|---|---|---|---|---|---|---|
ABF3-31/2 |
18.1 0.712 |
20.4 0.803 |
22.23 7/8 |
1.83 0.072 |
15 |
3/8" |
$139.00 |
|
ABF3-31/3 |
18.1 0.712 |
20.4 0.803 |
28.58 1 1/8 |
1.83 0.072 |
15 |
3/8" |
$148.00 |
|
ABF3-32/2 |
18.4 0.724 |
20.7 0.814 |
22.23 7/8 |
1.65 0.065 |
16 |
3/8" |
$139.00 |
|
ABF3-32/3 |
18.4 0.724 |
20.7 0.814 |
28.58 1 1/8 |
1.65 0.065 |
16 |
3/8" |
$148.00 |
|
ABF3-33/2 |
18.8 0.74 |
21.1 0.83 |
22.23 7/8 |
1.47 0.058 |
17 |
3/8" |
$139.00 |
|
ABF3-33/3 |
18.8 0.74 |
21.1 0.83 |
28.58 1 1/8 |
1.47 0.058 |
17 |
3/8" |
$148.00 |
|
ABF3-34/2 |
19.4 0.763 |
21.6 0.85 |
22.23 7/8 |
1.24 0.049 |
18 |
3/8" |
$139.00 |
|
ABF3-34/3 |
19.4 0.763 |
21.6 0.85 |
28.58 1 1/8 |
1.24 0.049 |
18 |
3/8" |
$148.00 |
|
ABF3-36/2 |
20.1 0.791 |
22.4 0.881 |
22.23 7/8 |
2.41 0.095 |
13 |
3/8" |
$139.00 |
|
ABF3-36/3 |
20.1 0.791 |
22.4 0.881 |
28.58 1 1/8 |
2.41 0.095 |
13 |
3/8" |
$148.00 |
|
ABF3-37/2 |
20.6 0.811 |
23.1 0.909 |
22.23 7/8 |
2.11 0.083 |
14 |
3/8" |
$148.00 |
|
ABF3-37/3 |
20.6 0.811 |
23.1 0.909 |
28.58 1 1/8 |
2.11 0.083 |
14 |
3/8" |
$164.00 |
|
ABF3-37/4 |
20.6 0.811 |
23.1 0.909 |
41.28 1 5/8 |
2.11 0.083 |
14 |
3/8" |
$179.00 |
|
ABF3-38/2 |
21.3 0.838 |
23.8 0.937 |
22.23 7/8 |
1.83-1.65 0.072-0.065 |
15-16 |
3/8" |
$148.00 |
|
ABF3-38/3 |
21.3 0.838 |
23.8 0.937 |
28.58 1 1/8 |
1.83-1.65 0.072-0.065 |
15-16 |
3/8" |
$164.00 |
|
ABF3-38/4 |
21.3 0.838 |
23.8 0.937 |
41.28 1 5/8 |
1.83-1.65 0.072-0.065 |
15-16 |
3/8" |
$179.00 |
|
ABF3-41/2 |
23.3 0.917 |
25.9 1.019 |
22.23 7/8 |
4.19 0.165 |
8 |
3/8" |
$148.00 |
|
ABF3-41/3 |
23.3 0.917 |
25.9 1.019 |
28.58 1 1/8 |
4.19 0.165 |
8 |
3/8" |
$164.00 |
|
ABF3-41/4 |
23.3 0.917 |
25.9 1.019 |
41.28 1 5/8 |
4.19 0.165 |
8 |
3/8" |
$179.00 |
|
ABF3-42/2 |
23.8 0.937 |
26.5 1.043 |
22.23 7/8 |
3.76 0.148 |
9 |
1/2" |
$148.00 |
|
ABF3-42/3 |
23.8 0.937 |
26.5 1.043 |
28.58 1 1/8 |
3.76 0.148 |
9 |
1/2" |
$164.00 |
|
ABF3-42/4 |
23.8 0.937 |
26.5 1.043 |
41.28 1 5/8 |
3.76 0.148 |
9 |
1/2" |
$179.00 |
|
ABF3-43/2 |
24.4 0.96 |
27.2 1.07 |
22.23 7/8 |
3.4 0.134 |
10 |
1/2" |
$170.00 |
|
ABF3-43/3 |
24.4 0.96 |
27.2 1.07 |
28.58 1 1/8 |
3.4 0.134 |
10 |
1/2" |
$182.00 |
|
ABF3-43/4 |
24.4 0.96 |
27.2 1.07 |
41.28 1 5/8 |
3.4 0.134 |
10 |
1/2" |
$193.00 |
|
ABF3-44/2 |
25.2 0.992 |
28 1.102 |
22.23 7/8 |
3.05 0.12 |
11 |
1/2" |
$170.00 |
|
ABF3-44/3 |
25.2 0.992 |
28 1.102 |
28.58 1 1/8 |
3.05 0.12 |
11 |
1/2" |
$182.00 |
|
ABF3-44/4 |
25.2 0.992 |
28 1.102 |
41.28 1 5/8 |
3.05 0.12 |
11 |
1/2" |
$193.00 |
|
ABF3-45/2 |
25.7 1.011 |
28.5 1.122 |
22.23 7/8 |
2.77 0.109 |
12 |
1/2" |
$170.00 |
|
ABF3-45/3 |
25.7 1.011 |
28.5 1.122 |
28.58 1 1/8 |
2.77 0.109 |
12 |
1/2" |
$182.00 |
Filters
Sort results
Reset
Apply
Item Code | Spare Part | Expander | Price | |
|---|---|---|---|---|
64-2-F3S |
Roller |
ABF3-100/2 |
$110.00 |
|
DMB-30 |
Mandrel |
ABF3-100/2 |
$160.00 |
|
64-3-F3S |
Roller |
ABF3-100/3 |
$112.00 |
|
DMB-30 |
Mandrel |
ABF3-100/3 |
$160.00 |
|
64-4-F3S |
Roller |
ABF3-100/4 |
$114.00 |
|
DMB-30 |
Mandrel |
ABF3-100/4 |
$160.00 |
|
64-5-F3S |
Roller |
ABF3-100/5 |
$117.00 |
|
DMB-30 |
Mandrel |
ABF3-100/5 |
$160.00 |
|
64-6-F3S |
Roller |
ABF3-100/6 |
$117.00 |
|
DMB-30 |
Mandrel |
ABF3-100/6 |
$160.00 |
|
65-2-F3S |
Roller |
ABF3-101/2 |
$110.00 |
|
DMB-30 |
Mandrel |
ABF3-101/2 |
$160.00 |
|
65-3-F3S |
Roller |
ABF3-101/3 |
$112.00 |
|
DMB-30 |
Mandrel |
ABF3-101/3 |
$160.00 |
|
65-4-F3S |
Roller |
ABF3-101/4 |
$114.00 |
|
65-4-F3S |
Roller |
ABF3-101/4 |
$110.00 |
|
DMB-30 |
Mandrel |
ABF3-101/4 |
$160.00 |
|
65-5-F3S |
Roller |
ABF3-101/5 |
$117.00 |
|
DMB-30 |
Mandrel |
ABF3-101/5 |
$160.00 |
|
65-6-F3S |
Roller |
ABF3-101/6 |
$117.00 |
|
DMB-30 |
Mandrel |
ABF3-101/6 |
$160.00 |
|
66-2-F3S |
Roller |
ABF3-102/2 |
$110.00 |
|
DMB-30 |
Mandrel |
ABF3-102/2 |
$160.00 |
|
66-3-F3S |
Roller |
ABF3-102/3 |
$112.00 |
|
DMB-30 |
Mandrel |
ABF3-102/3 |
$160.00 |
|
66-4-F3S |
Roller |
ABF3-102/4 |
$114.00 |
|
DMB-30 |
Mandrel |
ABF3-102/4 |
$160.00 |
|
66-5-F3S |
Roller |
ABF3-102/5 |
$117.00 |
|
DMB-30 |
Mandrel |
ABF3-102/5 |
$160.00 |
|
66-6-F3S |
Roller |
ABF3-102/6 |
$117.00 |
