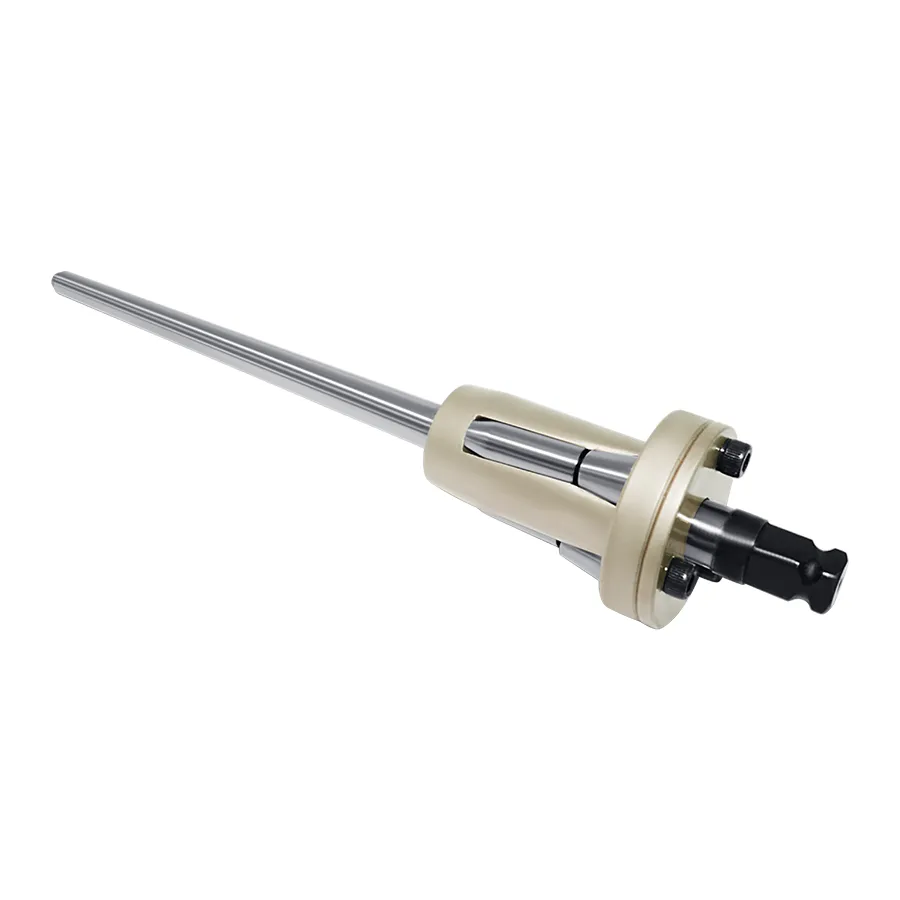

Boiler Tube Expanders AF3 SERIES
- Best ‘Value For Money’ tool in the world when flaring of tube ends is needed.
- Sturdy construction with rolls self contained in cage.
- Time tested, durable design.
- Overlapping flare rolls prevent ridging of tube.
- Use – Economical tool used for applications where small number of tubes are to be expanded with flaring.
Filters
Sort results
Reset
Apply
Expander | Min ID Tool Enters (mm)Min ID Tool Enters (inch) | Max Expansion Tool (mm)Max Expansion Tool (inch) | Reach (mm)Reach (inch) | Thickness (mm)Thickness (inch) | Thickness (bwg) | Drive inch | Price | |
|---|---|---|---|---|---|---|---|---|
AF3-31/2 |
18.1 0.712 |
20.4 0.803 |
22.23 7/8 |
1.83 0.072 |
15 |
3/8 |
$98.00 |
|
AF3-31/3 |
18.1 0.712 |
20.4 0.803 |
28.58 1 1/8 |
1.83 0.072 |
15 |
3/8 |
$104.00 |
|
AF3-32/2 |
18.4 0.724 |
20.7 0.814 |
22.23 7/8 |
1.65 0.065 |
16 |
3/8 |
$98.00 |
|
AF3-32/3 |
18.4 0.724 |
20.7 0.814 |
28.58 1 1/8 |
1.65 0.065 |
16 |
3/8 |
$104.00 |
|
AF3-33/2 |
18.8 0.74 |
21.1 0.83 |
22.23 7/8 |
1.47 0.058 |
17 |
3/8 |
$98.00 |
|
AF3-33/3 |
18.8 0.74 |
21.1 0.83 |
28.58 1 1/8 |
1.47 0.058 |
17 |
3/8 |
$104.00 |
|
AF3-34/2 |
19.4 0.763 |
21.6 0.85 |
22.23 7/8 |
1.24 0.049 |
18 |
3/8 |
$98.00 |
|
AF3-34/3 |
19.4 0.763 |
21.6 0.85 |
28.58 1 1/8 |
1.24 0.049 |
18 |
3/8 |
$104.00 |
|
AF3-35/2 |
19.7 0.775 |
22.3 0.877 |
22.23 7/8 |
1.07-0.89 0.042-0.035 |
19-20 |
3/8 |
$98.00 |
|
AF3-35/3 |
19.7 0.775 |
22.3 0.877 |
28.58 1 1/8 |
1.07-0.89 0.042-0.035 |
19-20 |
3/8 |
$104.00 |
|
AF3-36/2 |
20.1 0.791 |
22.4 0.881 |
22.23 7/8 |
2.41 0.095 |
13 |
3/8 |
$98.00 |
|
AF3-36/3 |
20.1 0.791 |
22.4 0.881 |
28.58 1 1/8 |
2.41 0.095 |
13 |
3/8 |
$104.00 |
|
AF3-37/2 |
20.6 0.811 |
23.1 0.909 |
22.23 7/8 |
2.11 0.083 |
14 |
3/8 |
$104.00 |
|
AF3-37/3 |
20.6 0.811 |
23.1 0.909 |
28.58 1 1/8 |
2.11 0.083 |
14 |
3/8 |
$115.00 |
|
AF3-37/4 |
20.6 0.811 |
23.1 0.909 |
41.28 1 5/8 |
2.11 0.083 |
14 |
3/8 |
$126.00 |
|
AF3-38/2 |
21.3 0.838 |
23.8 0.937 |
22.23 7/8 |
1.83-1.65 0.072-0.065 |
15-16 |
3/8 |
$104.00 |
|
AF3-38/3 |
21.3 0.838 |
23.8 0.937 |
28.58 1 1/8 |
1.83-1.65 0.072-0.065 |
15-16 |
3/8 |
$115.00 |
|
AF3-38/4 |
21.3 0.838 |
23.8 0.937 |
41.28 1 5/8 |
1.83-1.65 0.072-0.065 |
15-16 |
3/8 |
$126.00 |
|
AF3-39/2 |
22 0.866 |
24.5 0.964 |
22.23 7/8 |
1.47-1.24 0.058-0.049 |
17-18 |
3/8 |
$104.00 |
|
AF3-39/3 |
22 0.866 |
24.5 0.964 |
28.58 1 1/8 |
1.47-1.24 0.058-0.049 |
17-18 |
3/8 |
$115.00 |
|
AF3-39/4 |
22 0.866 |
24.5 0.964 |
41.28 1 5/8 |
1.47-1.24 0.058-0.049 |
17-18 |
3/8 |
$126.00 |
|
AF3-40/2 |
22.4 0.881 |
25 0.984 |
22.23 7/8 |
1.07-0.89 0.042-0.035 |
19-20 |
3/8 |
$104.00 |
|
AF3-40/3 |
22.4 0.881 |
25 0.984 |
28.58 1 1/8 |
1.07-0.89 0.042-0.035 |
19-20 |
3/8 |
$115.00 |
|
AF3-40/4 |
22.4 0.881 |
25 0.984 |
41.28 1 5/8 |
1.07-0.89 0.042-0.035 |
19-20 |
3/8 |
$126.00 |
|
AF3-31/2 |
18.1 0.712 |
20.4 0.803 |
22.23 7/8 |
3.4 0.134 |
10 |
3/8 |
$98.00 |
|
AF3-31/3 |
18.1 0.712 |
20.4 0.803 |
28.58 1 1/8 |
3.4 0.134 |
10 |
3/8 |
$104.00 |
|
AF3-33/2 |
18.8 0.74 |
21.1 0.83 |
22.23 7/8 |
3.05 0.12 |
11 |
3/8 |
$98.00 |
|
AF3-33/3 |
18.8 0.74 |
21.1 0.83 |
28.58 1 1/8 |
3.05 0.12 |
11 |
3/8 |
$104.00 |
|
AF3-34/2 |
19.4 0.763 |
21.6 0.85 |
22.23 7/8 |
2.77 0.109 |
12 |
3/8 |
$98.00 |
|
AF3-34/3 |
19.4 0.763 |
21.6 0.85 |
28.58 1 1/8 |
2.77 0.109 |
12 |
3/8 |
$104.00 |
Filters
Sort results
Reset
Apply
Item Code | Spare Part | Expander | Price | |
|---|---|---|---|---|
64-2-F3S |
Roller |
AF3-100/2 |
$104.00 |
|
DM-30 |
Mandrel |
AF3-100/2 |
$154.00 |
|
64-3-F3S |
Roller |
AF3-100/3 |
$104.00 |
|
DM-30 |
Mandrel |
AF3-100/3 |
$154.00 |
|
64-4-F3S |
Roller |
AF3-100/4 |
$105.00 |
|
DM-30 |
Mandrel |
AF3-100/4 |
$154.00 |
|
64-5-F3S |
Roller |
AF3-100/5 |
$105.00 |
|
DM-30 |
Mandrel |
AF3-100/5 |
$154.00 |
|
64-6-F3S |
Roller |
AF3-100/6 |
$107.00 |
|
DM-30 |
Mandrel |
AF3-100/6 |
$154.00 |
|
65-2-F3S |
Roller |
AF3-101/2 |
$107.00 |
|
DM-30 |
Mandrel |
AF3-101/2 |
$154.00 |
|
65-3-F3S |
Roller |
AF3-101/3 |
$110.00 |
|
DM-30 |
Mandrel |
AF3-101/3 |
$154.00 |
|
65-4-F3S |
Roller |
AF3-101/4 |
$110.00 |
|
DM-30 |
Mandrel |
AF3-101/4 |
$154.00 |
|
65-5-F3S |
Roller |
AF3-101/5 |
$111.00 |
|
DM-30 |
Mandrel |
AF3-101/5 |
$154.00 |
|
65-6-F3S |
Roller |
AF3-101/6 |
$111.00 |
|
DM-30 |
Mandrel |
AF3-101/6 |
$154.00 |
|
66-2-F3S |
Roller |
AF3-102/2 |
$104.00 |
|
DM-30 |
Mandrel |
AF3-102/2 |
$154.00 |
|
66-3-F3S |
Roller |
AF3-102/3 |
$105.00 |
|
DM-30 |
Mandrel |
AF3-102/3 |
$154.00 |
|
66-4-F3S |
Roller |
AF3-102/4 |
$107.00 |
|
DM-30 |
Mandrel |
AF3-102/4 |
$154.00 |
|
66-5-F3S |
Roller |
AF3-102/5 |
$110.00 |
|
DM-30 |
Mandrel |
AF3-102/5 |
$154.00 |
|
DM-30 |
Mandrel |
AF3-102/6 |
$154.00 |
|
15-2-F3S |
Roller |
AF3-31/2 |
$33.00 |
