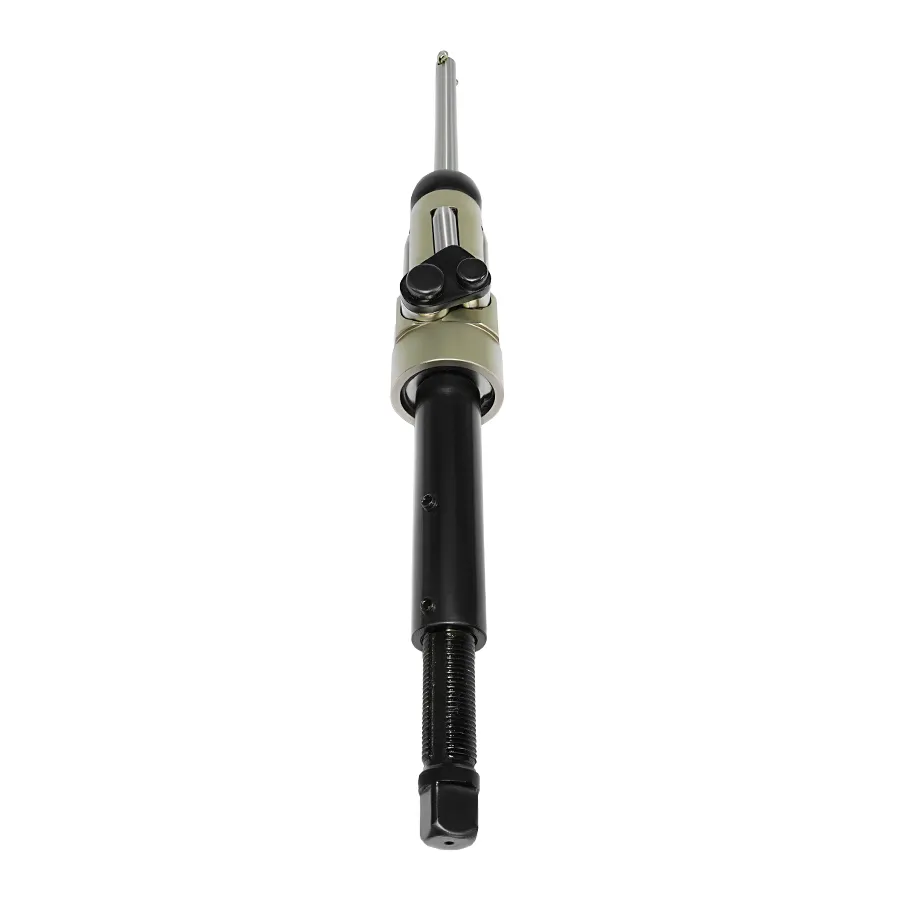

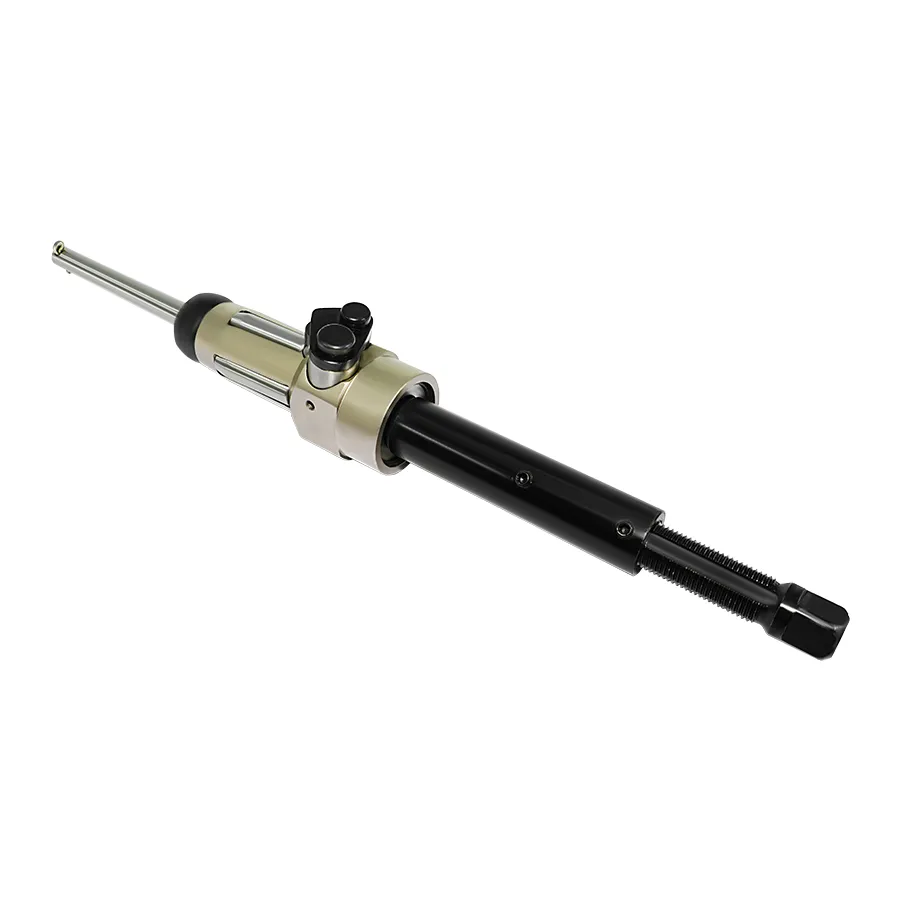

Combination Beading Expanders Series
Boiler Tube Expanders

‘5 Roll’ design is used primarily for rolling thin walled tubes used in sugar mill juice heaters, pans.
5 Rolls’ give you a more concentric, uniform expansion vs. a ‘3 roll’ expander in thin tubes and reduces tube ‘spring back’ effect.
Use – For top plate tube expansion in pans, juice heaters in sugar mills.

Same Day Dispatch

55 Years Of Engineering Expertise

ISO Standards

Secure Transaction

Select & Add to Cart

Unit

mm inch

Expander	Min ID Tool Enters (mm)Min ID Tool Enters (inch)	Max Expansion Tool (mm)Max Expansion Tool (inch)	Reach (mm)Reach (inch)	Thickness (mm)Thickness (inch)	Thickness (bwg)	Drive inch	Price
41633 - 0 010	43.2 1.7	48.41 1.906	41 0.12	3.4 0.134	10	3/4	$570.00	+
41633 - 0 011	43.2 1.7	48.41 1.906	41 0.12	3.05 0.12	11	3/4	$570.00	+
41633 - 0 012	43.2 1.7	48.41 1.906	41 0.12	2.77 0.109	12	3/4	$570.00	+
41633 - 0 013	43.2 1.7	48.41 1.906	41 0.12	2.41 0.095	13	3/4	$570.00	+
41634 - 0 010	55.9 2.2	62.48 2.46	41 0.13	3.4 0.134	10	1	$645.00	+
41634 - 0 011	55.9 2.2	62.48 2.46	41 0.13	3.05 0.12	11	1	$645.00	+
41634 - 0 012	55.9 2.2	62.48 2.46	41 0.13	2.77 0.109	12	1	$645.00	+
41634 - 0 013	55.9 2.2	62.48 2.46	41 0.15	2.41 0.095	13	1	$645.00	+
41359 - 0 010	68.6 2.7	75.69 2.98	41 0.15	3.4 0.134	10	1	$760.00	+
41359 - 0 011	68.6 2.7	75.69 2.98	41 0.15	3.05 0.12	11	1	$760.00	+
41359 - 0 012	68.6 2.7	75.69 2.98	41 0.15	2.77 0.109	12	1	$760.00	+

Select Expander Table

Item Code	Spare Part	Expander	Price
R-41676	Roller Set	41359 - 0 010	$85.00	+
M-41653	Mandrel	41359 - 0 010	$105.00	+
R-41676	Roller Set	41359 - 0 011	$85.00	+
M-41653	Mandrel	41359 - 0 011	$105.00	+
R-41676	Roller Set	41359 - 0 012	$85.00	+
M-41653	Mandrel	41359 - 0 012	$105.00	+
R-41670	Roller Set	41633 - 0 010	$51.50	+
M-41615	Mandrel	41633 - 0 010	$60.00	+
R-41670	Roller Set	41633 - 0 011	$51.50	+
M-41615	Mandrel	41633 - 0 011	$60.00	+
R-41670	Roller Set	41633 - 0 012	$51.50	+
M-41615	Mandrel	41633 - 0 012	$60.00	+
R-41670	Roller Set	41633 - 0 013	$51.50	+
M-41615	Mandrel	41633 - 0 013	$60.00	+
R-41673	Roller Set	41634 - 0 010	$72.00	+
M-41635	Mandrel	41634 - 0 010	$78.00	+
R-41673	Roller Set	41634 - 0 011	$72.00	+
M-41635	Mandrel	41634 - 0 011	$78.00	+
R-41673	Roller Set	41634 - 0 012	$72.00	+
M-41635	Mandrel	41634 - 0 012	$78.00	+
R-41673	Roller Set	41634 - 0 013	$72.00	+
M-41635	Mandrel	41634 - 0 013	$78.00	+
