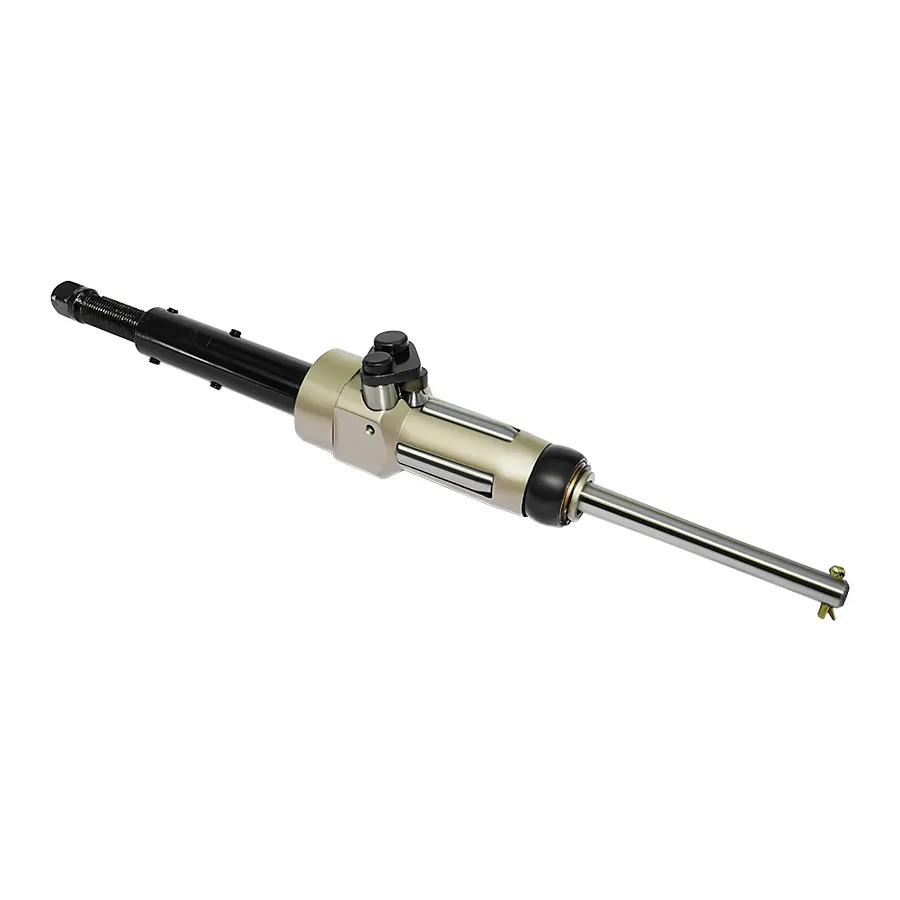

Boiler Tube Expanders CSB SERIES

  • ‘5 Roll’ design is used primarily for rolling thin walled tubes used in sugar mill juice heaters, pans.
  • ‘5 Rolls’ give you a more concentric, uniform expansion vs. a ‘3 roll’ expander in thin tubes and reduces tube ‘spring ‘ back effect.
  • Use – For bottom plate boiler tube expansion in pans, juice heaters in sugar mills.

Select Spare Part Table

Unit
TOD inch
Roller Length (mm)
Roller Length (inch)
Filters Sort results
Reset Apply
Expander
Min ID Tool Enters (mm)Min ID Tool Enters (inch)
Max Expansion Tool (mm)Max Expansion Tool (inch)
Reach (mm)Reach (inch)
Thickness (mm)Thickness (inch)
Thickness (bwg)
Drive inch
Price
CSB-5STD
39.8
1.566
45.3
1.783
32
1.259
1.65-1.83
0.065 - 0.72
15 & 16
3/4
$1086.00
+
CSB-5A
39.8
1.566
45.3
1.783
32
1.259
1.65-1.83
0.065 - 0.72
15 & 16
3/4
$1253.00
+
CSB-5B
39.8
1.566
45.3
1.783
32
1.259
1.65-1.83
0.065 - 0.72
15 & 16
3/4
$1420.00
+
CSB-5C
39.8
1.566
45.3
1.783
32
1.259
1.65-1.83
0.065 - 0.72
15 & 16
3/4
$1586.00
+
CSB-5D
39.8
1.566
45.3
1.783
32
1.259
1.65-1.83
0.065 - 0.72
15 & 16
3/4
$1724.00
+
CSB-5E
39.8
1.566
45.3
1.783
32
1.259
1.65-1.83
0.065 - 0.72
15 & 16
3/4
$1891.00
+
CSB-9STD
46.2
1.82
50.8
2
32
1.259
2.10-165
0.083-0.065
14-16
3/4
$1183.00
+
CSB-24STD
90.5
3.56
102.4
4.031
32
1.259
2.77-1.24
0.109-0.049
12-18
1
$1627.00
+
CSB-24A
90.5
3.56
102.4
4.031
32
1.259
2.76-1.24
0.109-0.049
12-18
1
$1876.00
+
CSB-24B
90.5
3.56
102.4
4.031
32
1.259
2.76-1.24
0.109-0.049
12-18
1
$2114.00
+
CSB-24C
90.5
3.56
102.4
4.031
32
1.259
2.76-1.24
0.109-0.049
12-18
1
$2365.00
+
CSB-24D
90.5
3.56
102.4
4.031
32
1.259
2.76-1.24
0.109-0.049
12-18
1
$2614.00
+
CSB-24E
90.5
3.56
102.4
4.031
32
1.259
2.76-1.24
0.109-0.049
12-18
1
$2921.00
+

Select Expander Table

Spare Part
Filters Sort results
Reset Apply
Item Code
Spare Part
Expander
Price
CSBR-24A
Roller
CSB-24A
$84.00
+
CSBM-24A
Mandrel
CSB-24A
$931.00
+
CSBR-24B
Roller
CSB-24B
$84.00
+
CSBM-24B
Mandrel
CSB-24B
$1057.00
+
CSBR-24
Roller
CSB-24C
$84.00
+
CSBM-24C
Mandrel
CSB-24C
$1183.00
+
CSBR-24
Roller
CSB-24D
$84.00
+
CSBM-24D
Mandrel
CSB-24D
$1294.00
+
CSBR-24
Roller
CSB-24E
$84.00
+
CSBM-24E
Mandrel
CSB-24E
$1420.00
+
CSBR-24B
Roller
CSB-24STD
$84.00
+
CSBM-24STD
Mandrel
CSB-24STD
$808.00
+
CSBR-5A
Roller
CSB-5A
$40.00
+
CSBM-5A
Mandrel
CSB-5A
$626.00
+
CSBR-5B
Roller
CSB-5B
$40.00
+
CSBM-5B
Mandrel
CSB-5B
$709.00
+
CSBR-5
Roller
CSB-5C
$40.00
+
CSBM-5C
Mandrel
CSB-5C
$793.00
+
CSBR-5
Roller
CSB-5D
$40.00
+
CSBM-5D
Mandrel
CSB-5D
$849.00
+
CSBR-5
Roller
CSB-5E
$40.00
+
CSBM-5E
Mandrel
CSB-5E
$946.00
+
CSBM-5E
Mandrel
CSB-5E
$946.00
+
CSBR-5B
Roller
CSB-5STD
$40.00
+
CSBM-5STD
Mandrel
CSB-5STD
$542.00
+
CSBR-9B
Roller
CSB-9STD
$52.00
+
CSBM-9STD
Mandrel
CSB-9STD
$597.00
+
