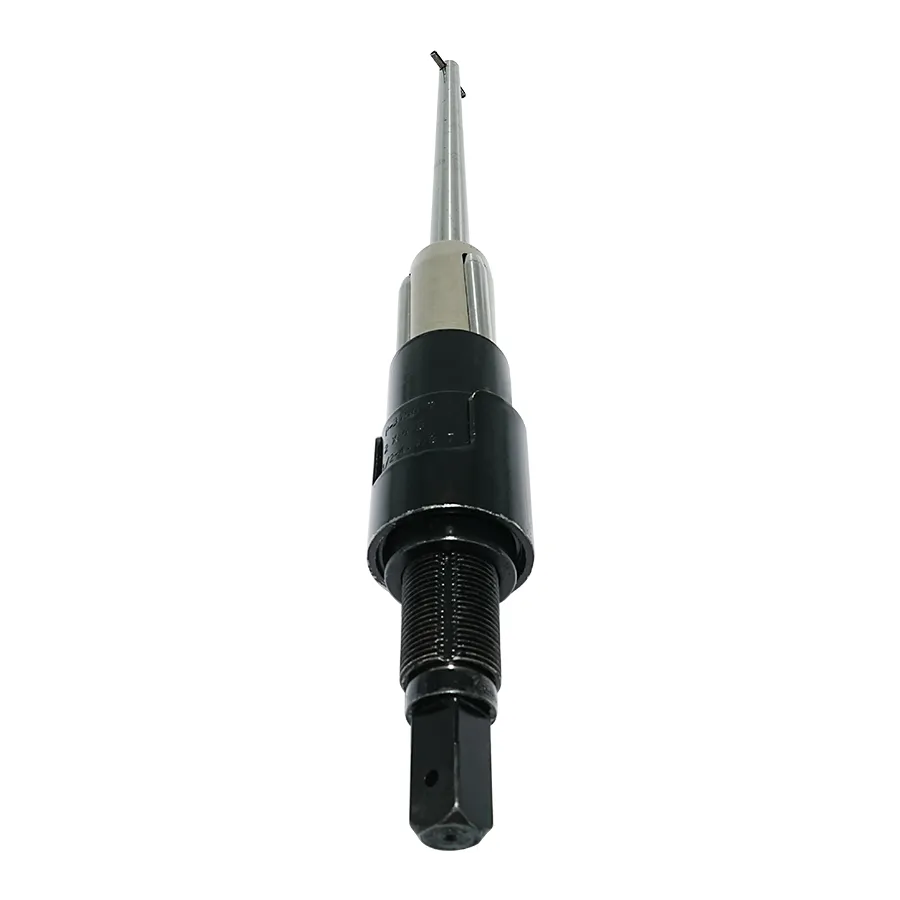

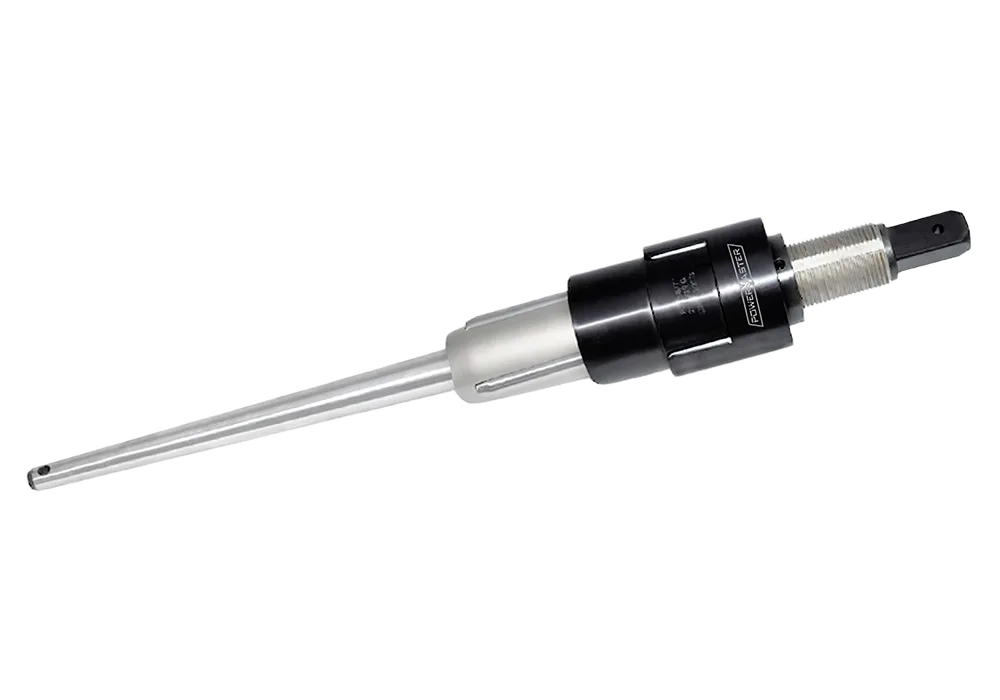

Boiler Tube Expanders P-3000 Series
- Expander can be accurately positioned in the boiler tube expander in relation to the drum, for consistent expansions.
- Use – For boiler tube sheets and drums thicker than 2.3/4” (70mm).

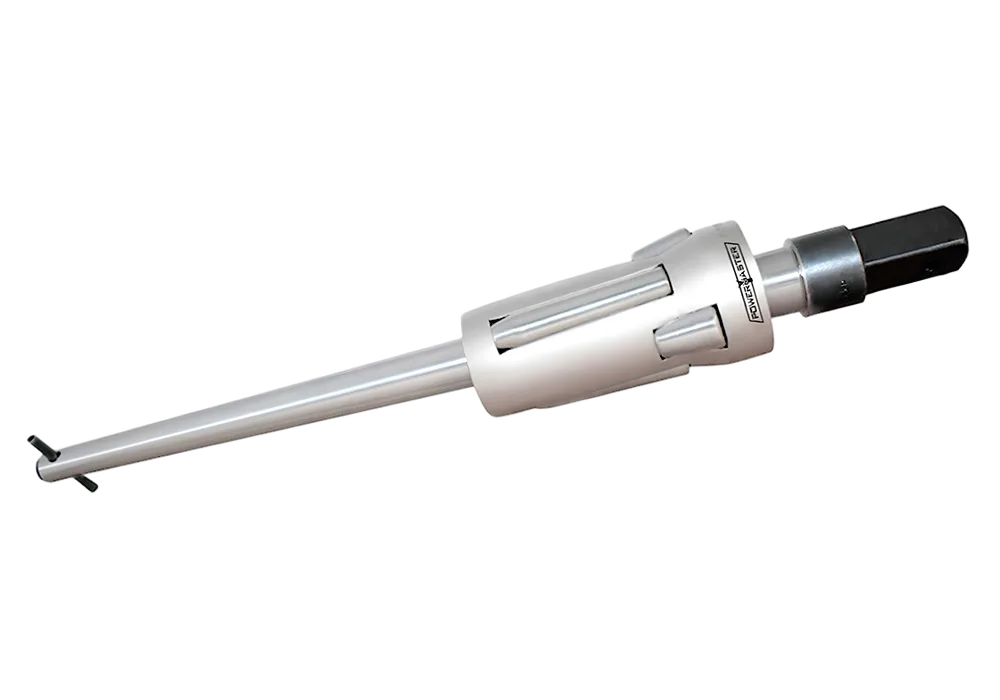

Normally used in conjunction with P-1000 Series.
Filters
Sort results
Reset
Apply
Expander | Min ID Tool Enters (mm)Min ID Tool Enters (inch) | Max Expansion Tool (mm)Max Expansion Tool (inch) | Reach (mm)Reach (inch) | Thickness (mm)Thickness (inch) | Thickness (bwg) | Drive inch | Price | |
|---|---|---|---|---|---|---|---|---|
P3111/7 |
27.8 1.094 |
33 1.299 |
111.13 4 3/8 |
1.65 0.065 |
16 |
3/4" |
$326.00 |
|
P3118/7 |
30.7 1.208 |
35 1.378 |
111.13 4 3/8 |
2.41-1.65 0.095-0.065 |
13-16 |
3/4" |
$326.00 |
|
P3111/7 |
27.8 1.094 |
33 1.299 |
111.13 4 3/8 |
1.65 0.065 |
16 |
3/4" |
$326.00 |
|
P3126/7 |
32.7 1.287 |
38 1.496 |
111.13 4 3/8 |
2.14-1.65 0.095-0.065 |
13-16 |
3/4" |
$326.00 |
|
P3118/7 |
30.7 1.208 |
35 1.378 |
111.13 4 3/8 |
3.40-2.77 0.134-0.109 |
10-12 |
3/4" |
$326.00 |
|
P3142/7 |
36.7 1.444 |
42.5 1.673 |
111.13 4 3/8 |
3.40-2.77 0.134-0.109 |
10-12 |
3/4" |
$425.00 |
|
P3142/11 |
36.7 1.444 |
42.5 1.673 |
136.53 5 3/8 |
3.40-2.77 0.134-0.109 |
10-12 |
3/4" |
$450.00 |
|
P3126/7 |
32.7 1.287 |
38 1.496 |
111.13 4 3/8 |
5.59-4.57 0.220-0.180 |
5-7 |
3/4" |
$326.00 |
|
P3134/7 |
34.7 1.366 |
40 1.575 |
111.13 4 3/8 |
4.19-3.76 0.165-0.148 |
8-9 |
3/4" |
$329.00 |
|
P3134/11 |
34.7 1.366 |
40 1.575 |
136.53 5 3/8 |
4.19-3.76 0.165-0.148 |
8-9 |
3/4" |
$450.00 |
|
P3150/7 |
38.7 1.523 |
44.5 1.752 |
111.13 4 3/8 |
2.41-1.65 0.095-0.065 |
13-16 |
3/4" |
$425.00 |
|
P3150/11 |
38.7 1.523 |
44.5 1.752 |
136.53 5 3/8 |
2.41-1.65 0.095-.065 |
13-16 |
3/4" |
$450.00 |
|
P3134/7 |
34.7 1.366 |
40 1.575 |
111.13 4 3/8 |
6.58 0.259 |
3 |
3/4" |
$329.00 |
|
P3134/11 |
34.7 1.366 |
40 1.575 |
136.53 5 3/8 |
6.58 0.259 |
3 |
3/4" |
$450.00 |
|
P3142/7 |
36.7 1.444 |
42.5 1.673 |
111.13 4 3/8 |
6.05-5.59 0.238-0.220 |
4-5 |
3/4" |
$425.00 |
|
P3142/11 |
36.7 1.444 |
42.5 1.673 |
136.53 5 3/8 |
6.05-5.59 0.238-0.220 |
4-5 |
3/4" |
$450.00 |
|
P3150/7 |
38.7 1.523 |
44.5 1.752 |
111.13 4 3/8 |
5.16 0.203 |
6 |
3/4" |
$425.00 |
|
P3150/11 |
38.7 1.523 |
44.5 1.752 |
136.53 5 3/8 |
5.16 0.203 |
6 |
3/4" |
$450.00 |
|
P3158/7 |
40.7 1.602 |
47 1.85 |
111.13 4 3/8 |
4.57-3.76 0.180-0.148 |
7-9 |
3/4" |
$425.00 |
|
P3158/11 |
40.7 1.602 |
47 1.85 |
136.53 5 3/8 |
4.57-3.76 0.180-0.148 |
7-9 |
3/4" |
$450.00 |
|
P3166/7 |
42.7 1.681 |
49 1.929 |
111.13 4 3/8 |
3.40-2.77 0.134-0.109 |
10-12 |
3/4" |
$425.00 |
|
P3166/11 |
42.7 1.681 |
49 1.929 |
136.53 5 3/8 |
3.40-2.77 0.134-0.109 |
10-12 |
3/4" |
$450.00 |
|
P3174/7 |
44.7 1.76 |
51.5 2.027 |
111.13 4 3/8 |
2.41-1.83 0.095-0.072 |
13-15 |
3/4" |
$425.00 |
|
P3174/11 |
44.7 1.76 |
51.5 2.027 |
136.53 5 3/8 |
2.41-1.83 0.095-0.072 |
13-15 |
3/4" |
$450.00 |
|
P3181/7 |
46.7 1.838 |
54 2.126 |
111.13 4 3/8 |
1.65 0.065 |
16 |
1" |
$425.00 |
|
P3181/11 |
46.7 1.838 |
54 2.126 |
136.53 5 3/8 |
1.65 0.065 |
16 |
1" |
$450.00 |
|
P3166/7 |
42.7 1.681 |
49 1.929 |
111.13 4 3/8 |
6.05-5.59 0.238-0.220 |
4-5 |
3/4" |
$425.00 |
|
P3166/11 |
42.7 1.681 |
49 1.929 |
136.53 5 3/8 |
6.05-0.238 0.238-0.220 |
4-5 |
3/4" |
$450.00 |
|
P3158/7 |
40.7 1.602 |
47 1.85 |
111.13 4 3/8 |
6.58 0.259 |
3 |
3/4" |
$425.00 |
|
P3158/11 |
40.7 1.602 |
47 1.85 |
136.53 5 3/8 |
6.58 0.259 |
3 |
3/4" |
$450.00 |
Filters
Sort results
Reset
Apply
Item Code | Spare Part | Expander | Price | |
|---|---|---|---|---|
111-7-RS |
Roller |
P3111/7 |
$71.00 |
|
111-7-RS |
Roller |
P3111/7 |
$71.00 |
|
118-M |
Mandrel |
P3111/7 |
$70.00 |
|
118-M |
Mandrel |
P3111/7 |
$70.00 |
|
118-7-RS |
Roller |
P3118/7 |
$71.00 |
|
118-7-RS |
Roller |
P3118/7 |
$71.00 |
|
118-M |
Mandrel |
P3118/7 |
$70.00 |
|
118-M |
Mandrel |
P3118/7 |
$70.00 |
|
126-7-RS |
Roller |
P3126/7 |
$71.00 |
|
126-7-RS |
Roller |
P3126/7 |
$71.00 |
|
126-M |
Mandrel |
P3126/7 |
$80.00 |
|
126-M |
Mandrel |
P3126/7 |
$80.00 |
|
126-11-RS |
Roller |
P3134/11 |
$82.00 |
|
126-11-RS |
Roller |
P3134/11 |
$82.00 |
|
134-M |
Mandrel |
P3134/11 |
$80.00 |
|
134-M |
Mandrel |
P3134/11 |
$80.00 |
|
126-7-RS |
Roller |
P3134/7 |
$71.00 |
|
126-7-RS |
Roller |
P3134/7 |
$71.00 |
|
134-M |
Mandrel |
P3134/7 |
$80.00 |
|
134-M |
Mandrel |
P3134/7 |
$80.00 |
|
142-11-RS |
Roller |
P3142/11 |
$82.00 |
|
142-11-RS |
Roller |
P3142/11 |
$82.00 |
|
150-M |
Mandrel |
P3142/11 |
$80.00 |
|
150-M |
Mandrel |
P3142/11 |
$80.00 |
|
142-7-RS |
Roller |
P3142/7 |
$71.00 |
|
142-7-RS |
Roller |
P3142/7 |
$71.00 |
|
150-M |
Mandrel |
P3142/7 |
$80.00 |
|
150-M |
Mandrel |
P3142/7 |
$80.00 |
|
150-11-RS |
Roller |
P3150/11 |
$82.00 |
|
150-11-RS |
Roller |
P3150/11 |
$82.00 |
