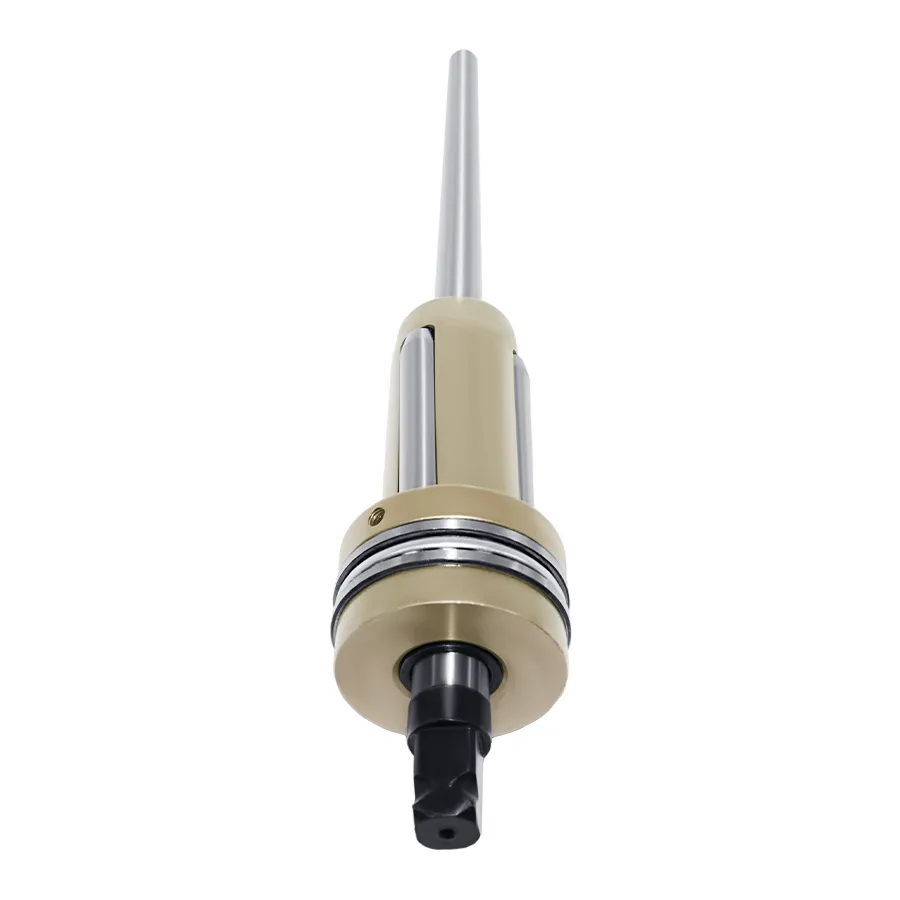

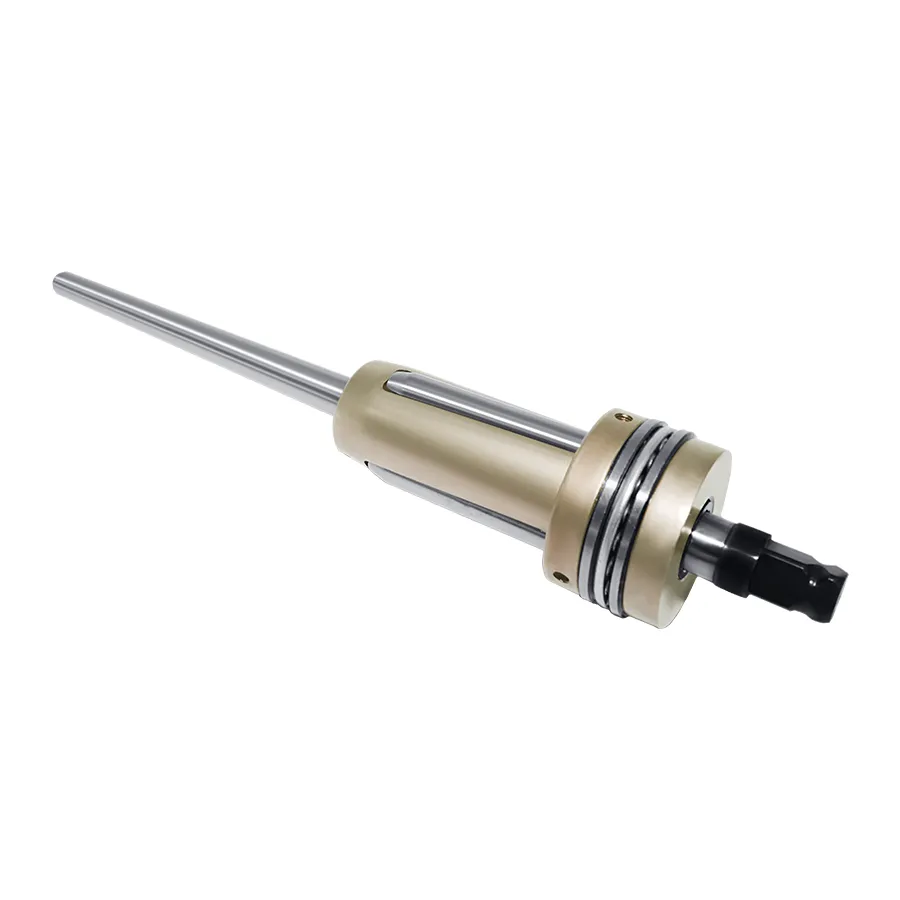

Boiler Tube Expanders AB SERIES
- ‘Value for Money’ tool in the world when parallel rolling tubes.
- Sturdy construction with rolls self contained in cage.
- Time tested, durable design.
- Bearing reduces frictional build up for smoother expanding cycles.
- Bearing increases useful life of tool.
- Use – High productivity tool used where flaring of tubes is not needed.
TOD inch
Roller Length (mm)
Roller Length (inch)
Filters
Sort results
Reset
Apply
Expander | Min ID Tool Enters (mm)Min ID Tool Enters (inch) | Max Expansion Tool (mm)Max Expansion Tool (inch) | Reach (mm)Reach (inch) | Thickness (mm)Thickness (inch) | Thickness (bwg) | Drive inch | Price | |
---|---|---|---|---|---|---|---|---|
AB-31/2 |
18.1 0.712 |
20.4 0.803 |
22.23 7/8 |
1.83 0.072 |
15 |
3/8" |
||
AB-31/3 |
18.1 0.712 |
20.4 0.803 |
28.58 1 1/8 |
1.83 0.072 |
15 |
3/8" |
||
AB-32/2 |
18.4 0.724 |
20.7 0.814 |
22.23 7/8 |
1.65 0.065 |
16 |
3/8" |
||
AB-32/3 |
18.4 0.724 |
20.7 0.814 |
28.58 1 1/8 |
1.65 0.065 |
16 |
3/8" |
||
AB-33/2 |
18.8 0.74 |
21.1 0.83 |
22.23 7/8 |
1.47 0.058 |
17 |
3/8" |
||
AB-33/3 |
18.8 0.74 |
21.1 0.83 |
28.58 1 1/8 |
1.47 0.058 |
17 |
3/8" |
||
AB-34/2 |
19.4 0.763 |
21.6 0.85 |
22.23 7/8 |
1.24 0.049 |
18 |
3/8" |
||
AB-34/3 |
19.4 0.763 |
21.6 0.85 |
28.58 1 1/8 |
1.24 0.049 |
18 |
3/8" |
||
AB-35/2 |
19.7 0.775 |
22.3 0.877 |
22.23 7/8 |
1.07-0.089 0.042-0.035 |
19-20 |
3/8" |
||
AB-35/3 |
19.7 0.775 |
22.3 0.877 |
28.58 1 1/8 |
1.07-0.089 0.042-0.035 |
19-20 |
3/8" |
||
AB-33/2 |
20.1 0.791 |
22.4 0.881 |
22.23 7/8 |
3.05 0.12 |
11 |
3/8" |
||
AB-31/2 |
18.1 0.712 |
20.4 0.803 |
22.23 7/8 |
3.4 0.134 |
10 |
3/8" |
||
AB-31/3 |
20.1 0.791 |
22.4 0.881 |
28.58 1 1/8 |
3.4 0.134 |
10 |
3/8" |
||
AB-34/2 |
20.6 0.811 |
23.1 0.909 |
22.23 7/8 |
2.77 0.109 |
12 |
3/8" |
||
AB-33/3 |
20.6 0.811 |
23.1 0.909 |
28.58 1 1/8 |
3.05 0.12 |
11 |
3/8" |
||
AB-37/4 |
20.6 0.811 |
23.1 0.909 |
22.23 7/8 |
2.11 0.083 |
14 |
3/8" |
||
AB-36/2 |
21.3 0.838 |
23.8 0.937 |
22.23 7/8 |
2.41 0.095 |
13 |
3/8" |
||
AB-34/3 |
21.3 0.838 |
23.8 0.937 |
28.58 1 1/8 |
2.77 0.109 |
12 |
3/8" |
||
AB-38/4 |
21.3 0.838 |
23.8 0.937 |
22.23 7/8 |
1.83-1.65 0.072-0.065 |
15-16 |
3/8" |
||
AB-37/2 |
22 0.866 |
24.5 0.964 |
22.23 7/8 |
2.11 0.083 |
14 |
3/8" |
||
AB-36/3 |
22 0.866 |
24.5 0.964 |
28.58 1 1/8 |
2.41 0.095 |
13 |
3/8" |
||
AB-38/2 |
22.4 0.881 |
25 0.984 |
22.23 7/8 |
1.83-1.65 0.072-0.065 |
15-16 |
3/8" |
||
AB-37/3 |
22.4 0.881 |
25 0.984 |
28.58 1 1/8 |
2.11 0.083 |
14 |
3/8" |
||
AB-38/3 |
22 0.866 |
24.5 0.964 |
28.58 1 1/8 |
1.83-1.65 0.072-0.065 |
15-16 |
3/8" |
||
AB-39/4 |
22 0.866 |
24.5 0.964 |
22.23 7/8 |
1.47-1.24 0.058-0.049 |
17-18 |
3/8" |
||
AB-39/2 |
21.3 0.838 |
23.8 0.937 |
22.23 7/8 |
1.47-1.24 0.058-0.049 |
17-18 |
3/8" |
||
AB-39/3 |
18.1 0.712 |
20.4 0.803 |
28.58 1 1/8 |
1.47-1.24 0.058-0.049 |
17-18 |
3/8" |
||
AB-40/2 |
18.8 0.74 |
21.1 0.83 |
22.23 7/8 |
1.07-0.089 0.042-0.035 |
19-20 |
3/8" |
||
AB-40/3 |
19.4 0.763 |
21.6 0.85 |
28.58 1 1/8 |
1.07-0.089 0.042-0.035 |
19-20 |
3/8" |
||
AB-40/4 |
22.4 0.881 |
25 0.984 |
41.28 1 5/8 |
1.07-0.089 0.042-0.035 |
19-20 |
3/8" |
Spare Part
Filters
Sort results
Reset
Apply
Item Code | Spare Part | Expander | Price | |
---|---|---|---|---|
64-2-RS |
Roller |
AB-100/2 |
$63.90 |
|
DMB-30 |
Mandrel |
AB-100/2 |
$179.00 |
|
64-3-RS |
Roller |
AB-100/3 |
$67.40 |
|
DMB-30 |
Mandrel |
AB-100/3 |
$179.00 |
|
64-4-RS |
Roller |
AB-100/4 |
$69.10 |
|
DMB-30 |
Mandrel |
AB-100/4 |
$179.00 |
|
64-5-RS |
Roller |
AB-100/5 |
$72.30 |
|
DMB-30 |
Mandrel |
AB-100/5 |
$179.00 |
|
64-6-RS |
Roller |
AB-100/6 |
$76.10 |
|
DMB-30 |
Mandrel |
AB-100/6 |
$179.00 |
|
65-2-RS |
Roller |
AB-101/2 |
$63.90 |
|
DMB-30 |
Mandrel |
AB-101/2 |
$179.00 |
|
65-3-RS |
Roller |
AB-101/3 |
$67.40 |
|
DMB-30 |
Mandrel |
AB-101/3 |
$179.00 |
|
65-4-RS |
Roller |
AB-101/4 |
$69.10 |
|
DMB-30 |
Mandrel |
AB-101/4 |
$179.00 |
|
65-5-RS |
Roller |
AB-101/5 |
$72.30 |
|
DMB-30 |
Mandrel |
AB-101/5 |
$179.00 |
|
65-6-RS |
Roller |
AB-101/6 |
$76.10 |
|
DMB-30 |
Mandrel |
AB-101/6 |
$179.00 |
|
63-2-RS |
Roller |
AB-102/2 |
$59.40 |
|
DMB-30 |
Mandrel |
AB-102/2 |
$179.00 |
|
63-3-RS |
Roller |
AB-102/3 |
$59.40 |
|
DMB-30 |
Mandrel |
AB-102/3 |
$179.00 |
|
63-4-RS |
Roller |
AB-102/4 |
$62.90 |
|
DMB-30 |
Mandrel |
AB-102/4 |
$179.00 |
|
63-5-RS |
Roller |
AB-102/5 |
$63.90 |
|
DMB-30 |
Mandrel |
AB-102/5 |
$179.00 |
|
63-6-RS |
Roller |
AB-102/6 |
$67.40 |
|
DMB-30 |
Mandrel |
AB-102/6 |
$179.00 |
